BAT-CSB-12V7A

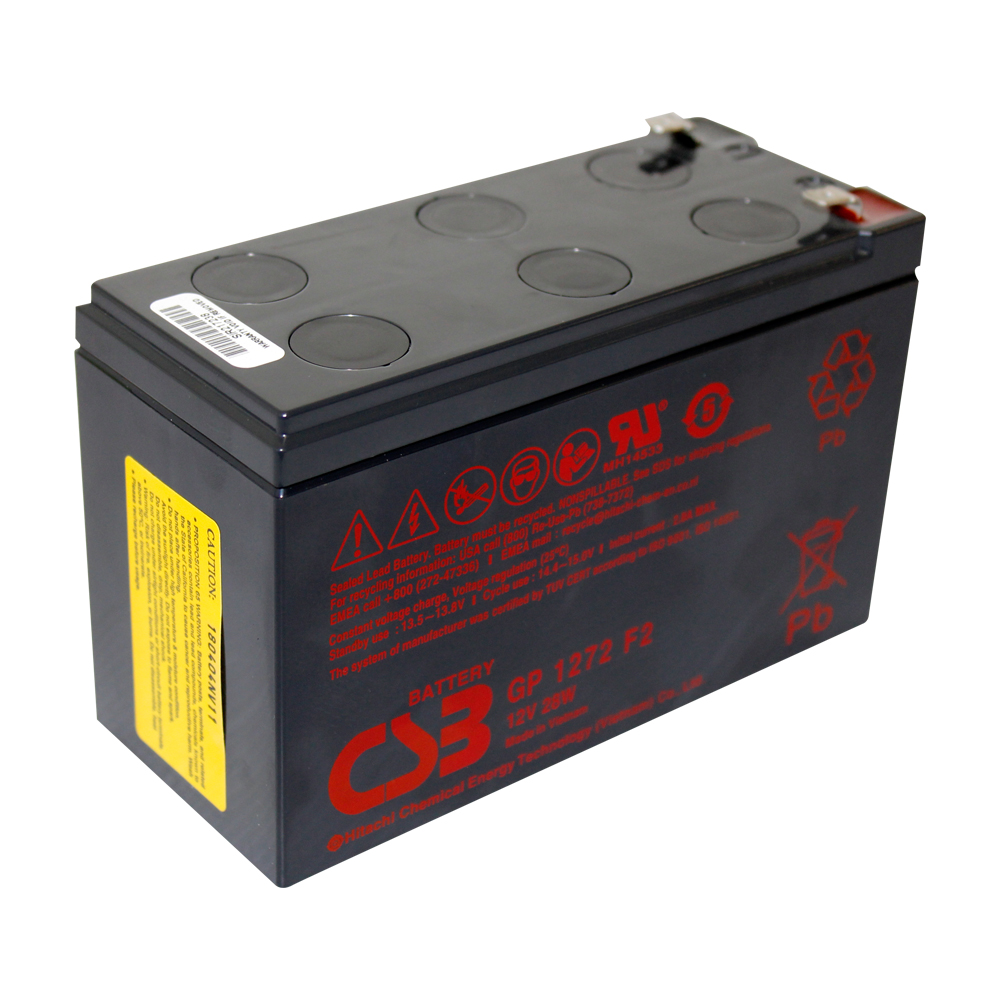

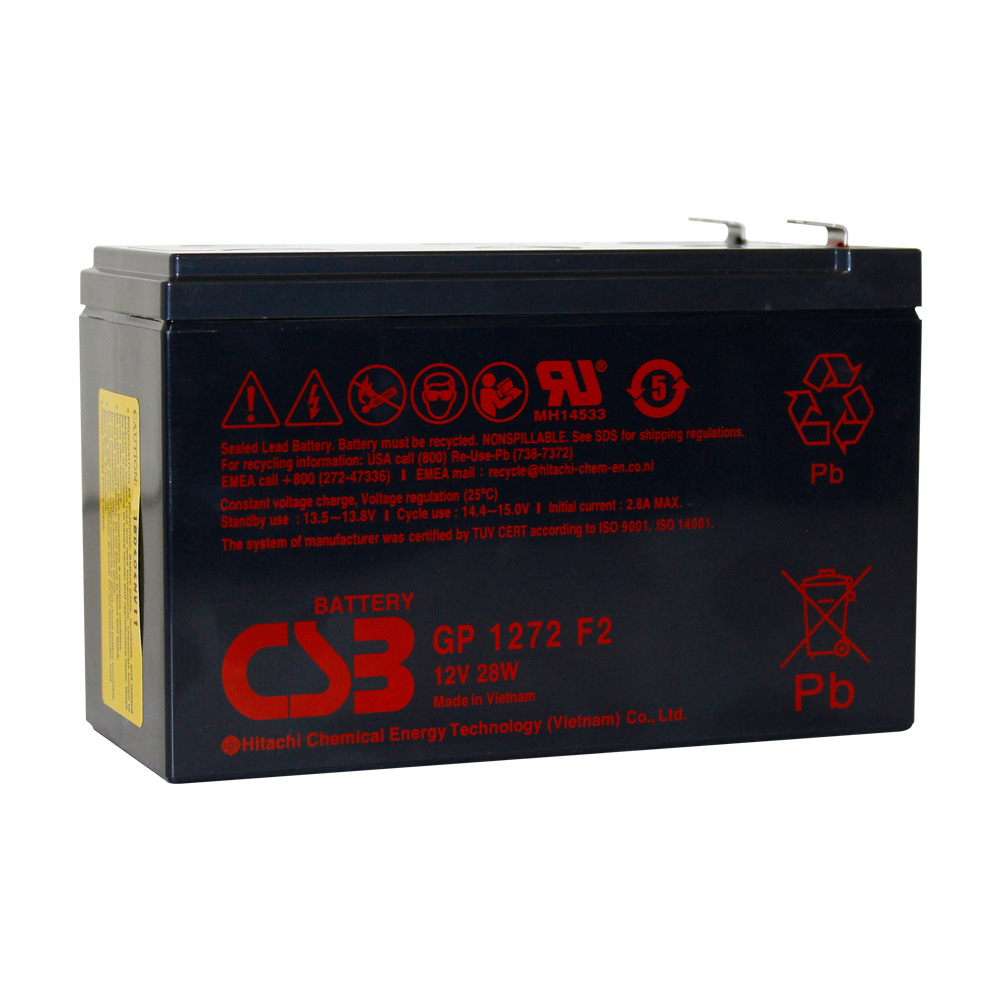

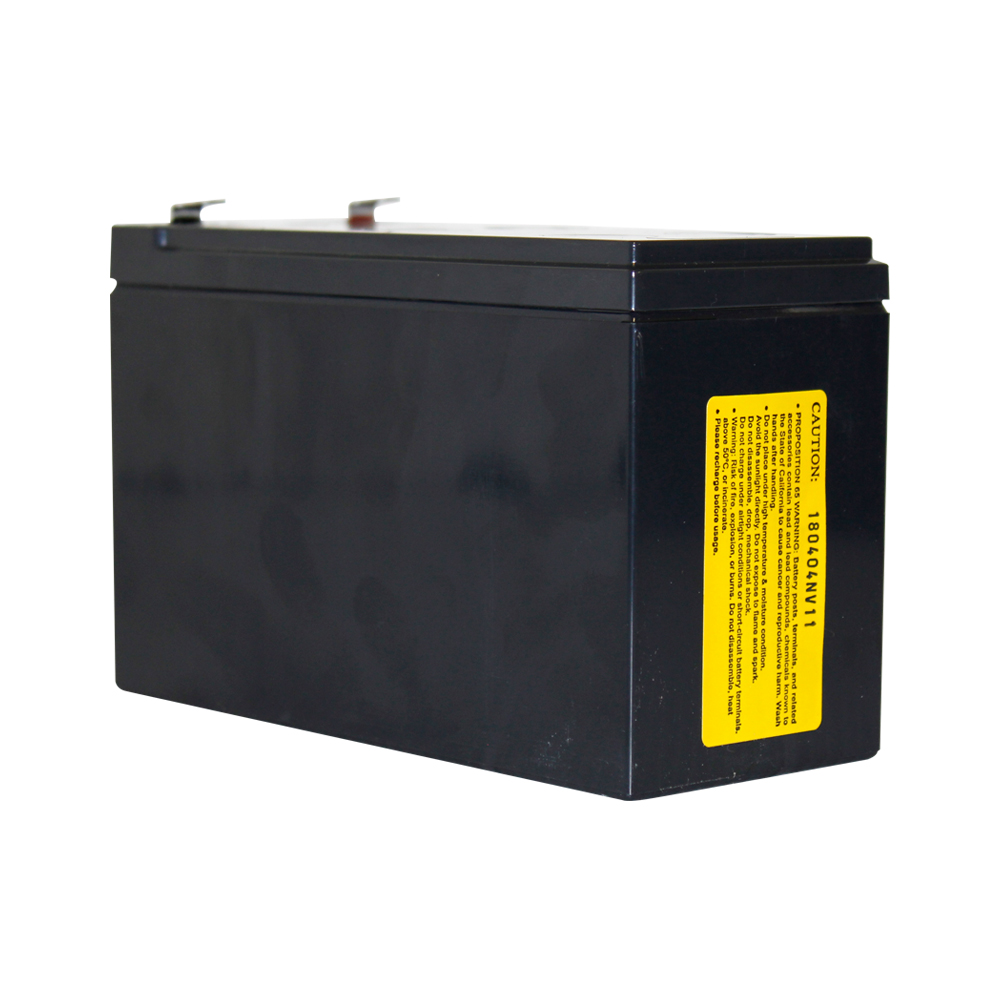

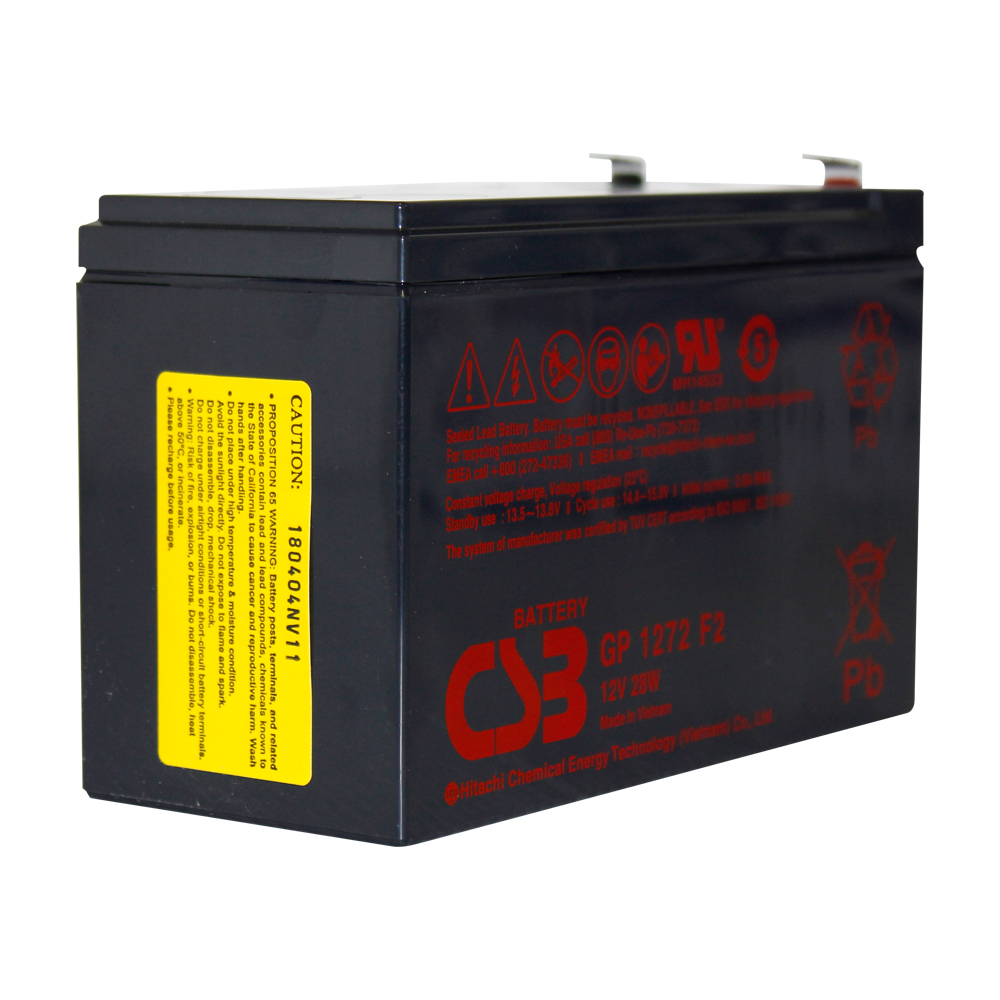

CSB GP1272 12V 7A 28W CELL BATTERY - BK

Description

CSB GP1272 12V 7A 28W RECHARGEABLE CELL BATTERY - BLACK


Specification

CSB GP1272 12V 7A 28W RECHARGEABLE CELL BATTERY - BLACK

CSB GP1272 (12V28W) is a general purpose battery and are rechargeable, highly efficient, leak proof and maintenance free.

Specifications:
-Cells Per Unit: 6
-Voltage Per Unit: 12 V
-Capacity: 28W@15Min-rate to 1.67V per cell @ 25 C (77 F)
-Maximum Discharge current (A): 100A/130A (5sec)
-Internal Resistance Approx.: Approx. 19.8m Ohm

Operating Temperature Range:
-Discharge: -15C~50C(5F~122F)
-Charge: -15C~40C(5F~104F)
-Storage: -15C~40C(5F~104F)

-Nominal Operating Temperature Range: 25 C ± 3C (77F ± 5F)
-Floating charging voltage: 13.5 to 13.8 VDC/unit Avaerage at 25C (77 F)
-Recommended Maximum Charging current limit: 2.80A
-Equalization and Cycle Service: 14.4 to 15.0 VDC/unit Average at 25C (77 F)
-Self Discharge: Less than 10% after 90days, can be stored up o 6 months at 25°C (77°F); Fully recharging is rquired before usage, and charged sooner if stored at higher temperature than 25°C (77°F)
-Terminal: F1/F2-Faston Tab187/250
-Container Material: ABS(UL94-HB) & Flam retardant(UL94-V0) available upon request
