Specification

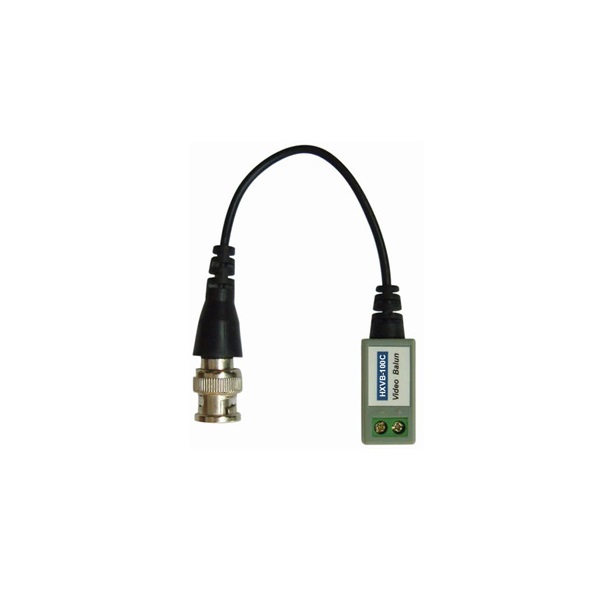

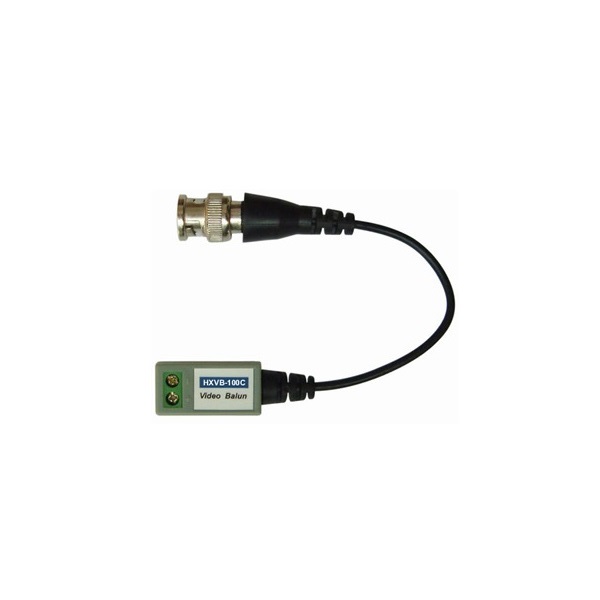

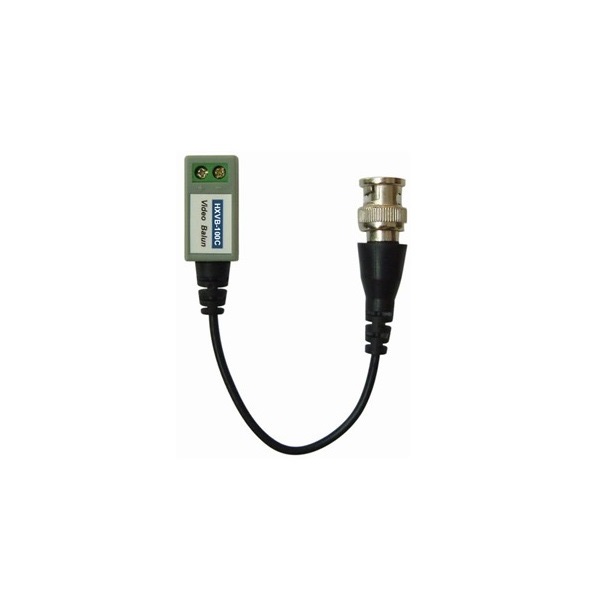

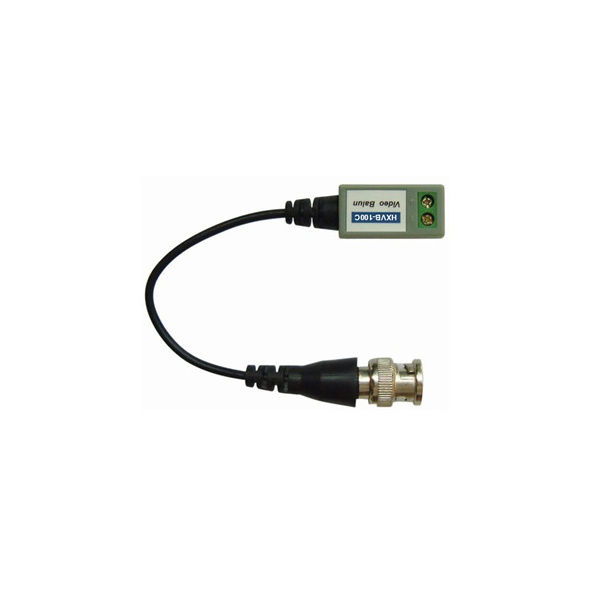

ISONIC AD-BALUN
Feature:
- Real-time transmission of High-Definition video signals.
- Transmission distance up to 300m working with passive transceivers, up to 1200m woring with HXVB-120R active receivers.
- No power needed.
- NTSC, PAL, SECAM video formats
- Compact size and easy installation
- Compatible with all qualified UTP cameras
- ABS plastic shell fire, copper BNC connector, environmental terminal
Specification:
Transmission distance: 0-300m
Signal Type: Video(PAL, NTSC, SECAM and other baseband video signal)
Connector: Coaxial BNC(male),twisted-pair terminal
Frequency response: DC to 6MHz
CMRR: 0 to 6MHz 60dB (typical)
Impedance: Coax (BNC female) 75 Ohm; UTP (unshielded twisted pair) 100 ohms
Cable Type: Cat5 or Cat5e unshielded twisted pair
Cable Impedance: 100 ± 20 ohms
Distributed capacitance: less than 62pF/m
DC loop resistance: 18 Ohm/100m
Operating temperature: -20oC~70oC
Relative Humidity: 0~95%(non-condensing)
Storage temperature: -40oC~150oC
Dimension: 47mm x 15mm x 16mm
Weight: 20g
