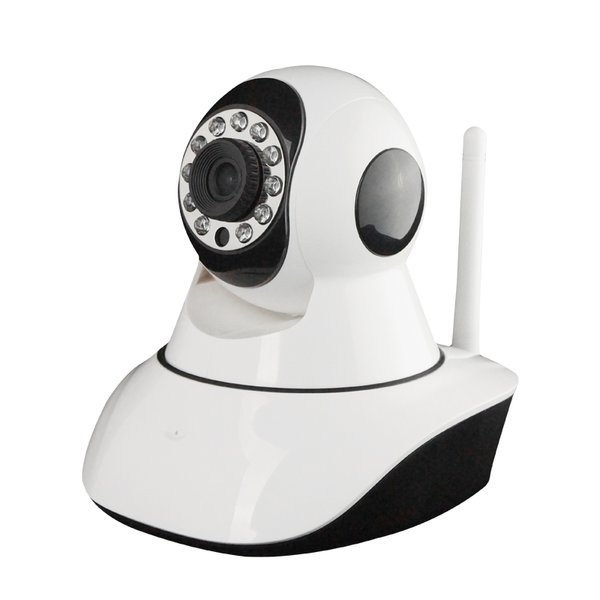

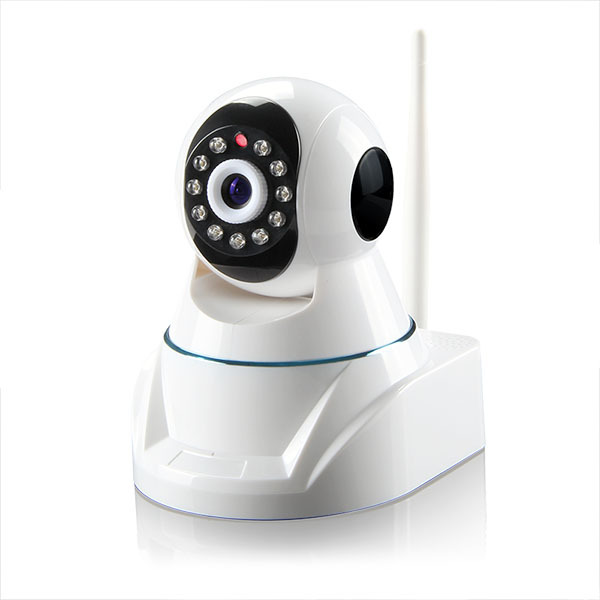

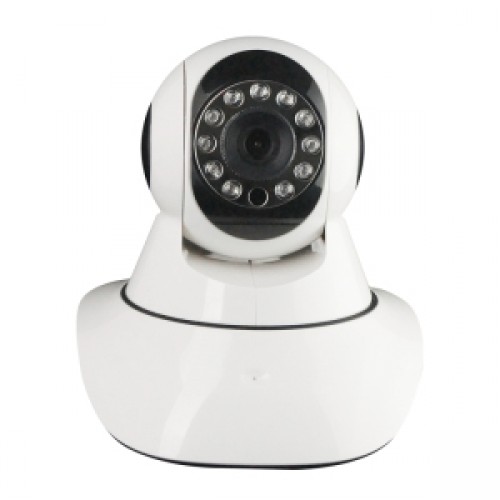

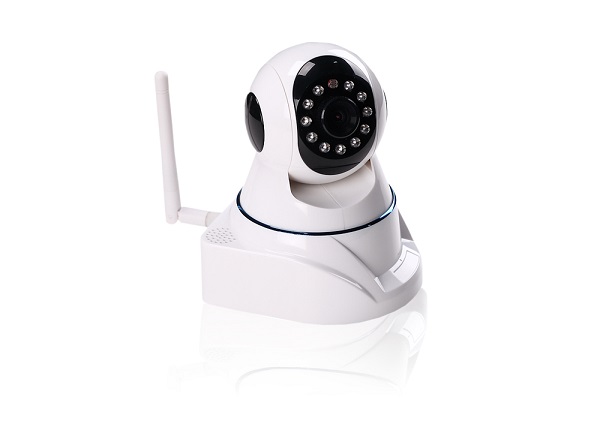

Isonic HD 720P IP Camera

Image Sensor: 1/4" color CMOS WXGA (1 megapixel) HD sensor
Display Resolution: 1280*720 Pixels
Lens: 3. 6mm (F:1.2)
Min. Illumination: 0.5Lux (0LUX on)

Audio:
Input/Output
Linear Input/Output

Audio Compression
G.711/G.726, Audio sampling Bit rate
128kbps ~ 2.048Mbps

Video
Image Compression
H.264

Light Frequency
50Hz, 60Hz

Image Resolution
720p(1280*720),VGA(640*480),CIF(352*288)

Image frame rate
25fps(50Hz), 30fps(60Hz),Down adjustable

View
H.264 dual streaming

Image adjust
The brightness, contrast, saturation, chromaticity, is adjustable

White balance
Automatic,
Indoor, outdoor , is adjustable

Infrared mode
Automatic , manual (on/off)

Night visibility
F5mm 10 IR LEDs, Night visibility up to 10 metres

Supported Protocol
TCP/IP,UDP/IP,HTTP,SMTP,FTP,DHCP,DDNS,UPNP

Wireless Standard
WIFI(IEEE802.11b/g/n)

Data Rate
802.11b: 11Mbps(Max.)
802.11g: 54Mbps(Max.)
802.11n: 150Mbps(Max.)

Support IP address
static IP address, dynamic IP address

Alarm
Alarm detection
The motion detecting, detection threshold Settings

Alarm inform
Support Email,FTP etc alarm inform way

Hardware Interface
Memory
SD CARD (Support to 32GB)

POWER Interface
DC 5V/2.0A (EU,US,AU adapter or other types optional)

Power Consumption less than 8 Watts

Audio Input/Output Interface
One audio input jack,One audio output jack

Reset Buttons
One Reset

Ethernet
One 10/100Mbps RJ-45

Wireless Interface
WIFI antenna

Other
Pan/Tilt Angle
Horizontal:350° & Vertical: 90°

Environment
Operate Temp
-20° ~ 55°C
(32°F ~ 131°F)

Operate Humidity
10% ~ 80% non-condensing

Storage Temp
-20°C ~ 60°C(14°F ~ 140°F)

Storage Humidity
0% ~ 90% non-condensing

Physical
Dimension(LxWxH)
100*110*125mm
