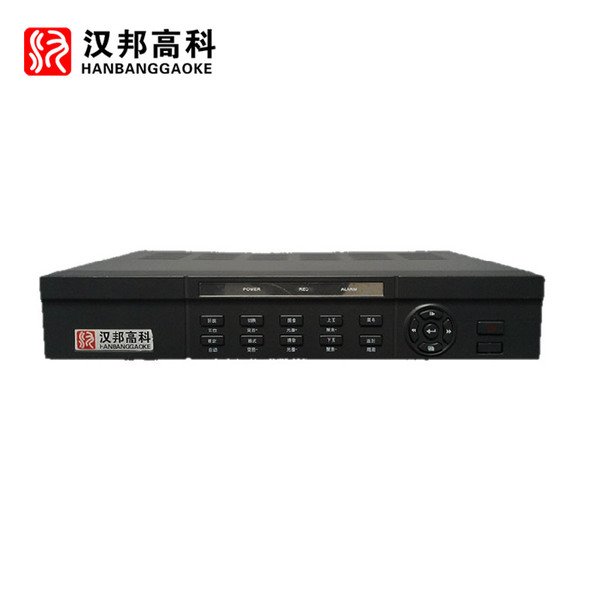

Hanbang 16CH 1.5U HD Standalone NVR

16 channel 1.5U HD standalone NVR
ONVIF Version 2.0 Protocol
Support 2/4 SATA HDDs and 1 eSATA up, 2 USB2.0
Support up to 4ch 1080p realtime preview/playback, 8ch realtime recording
Support Multi-brand network cameras
Dual-core CPU presents the powerful preview, recording, playback and network performance
Support GRID interface & smart search
HDMI/VGA/BNC synchronous video output
Built-in web server, CMS (C/S & B/S), support remote seting & image adjust
Support PTZ, NTP, UPNP, Bidirectional Talk

Series model: HB79X3series
Model name: HB7916X3
Housing: 1.5U
Operation System: Embedded LINUX

Video:
Compression: H.264
IPC Input: 16ch
Output: 1VGA (DB15) , 1 HDMI, 1 BNC (1.0 Vp-p,75O)
Dual Stream: Will support in next version

Audio:
Output: 1 RCA (600O,Vp-p=2.0V LINE)
Bidirectional Talk: 1 MIC Input, 3.5mm(2Vp-p, 10KO), 1 Speaker Output, 3.5mm(2Vp-p, 16O)

Alarm:
Input: 4 ch
Output: 1 ch

Preview:
Resolution: 1920×1080
Display Split: 1ch/ 4ch
OSD: Camera Title, Time, Video Loss, Camera Lock, Alarm, Recording
Sequence: Support
Privacy Masking: 4 zones Maximum, On DVR

Recording:
Resolution:
D1 @ 2Mbps: 16ch
720P30 @ 4Mbps: 8ch
1080P30@ 4Mbps: 8ch

Recording Mode: Manual, Schedule, Motion, Alarm
Recording Quality: CBR, VBR
Recording Interval: Pre-record: 5~30 sec
Post-record: 0~180sec

Playback:
Channel: 4ch
Search Mode: Time, Date, Record Mode, Smart search
Privacy Masking: 4 zones Maximum, On DVR and PC

Network:
Remote Operation: Web ( IE, Chrome, Firefox)
Email: Test and send
Mobile: Not Support Currently
Backup: USB devices & Network download & eSATA
HDD: 4HDD (Max support 2TB each), 1 eSATA

External Interface:
Network Interface:
RJ45 10M/100m Ethernet Interface: 0
RJ45 10M/100M/1000M Ethernet Interface: 2

USB Interface: 2 Interfaces ( Mouse control & Backup)
Auxiliary Interface: 1 RS-485,1 RS-232

General:
Power supply: 12V 40W
Power Consumption (Without HDD): =40W
Working Environment: -10?~+45? / 15%~85%RH
Dimension: 408mm × 440mm × 66mm (W×D×H)
