FSP - FSP-CHAMP-3K

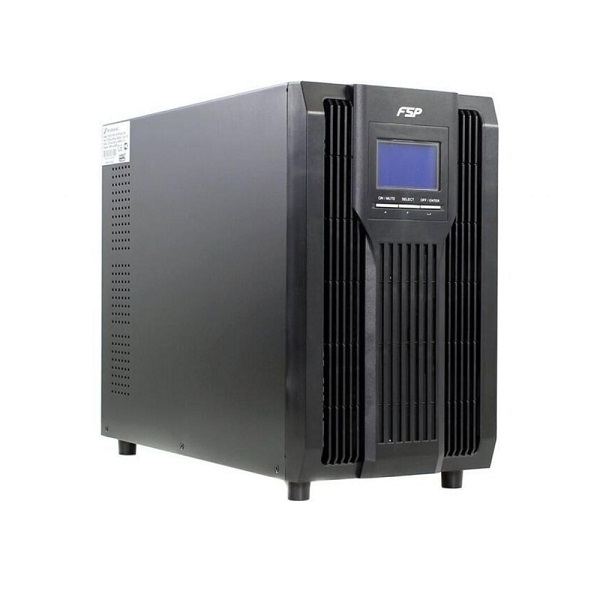

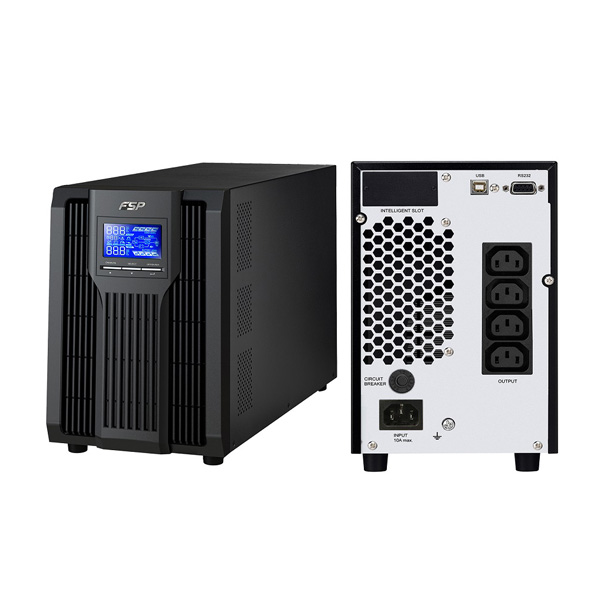

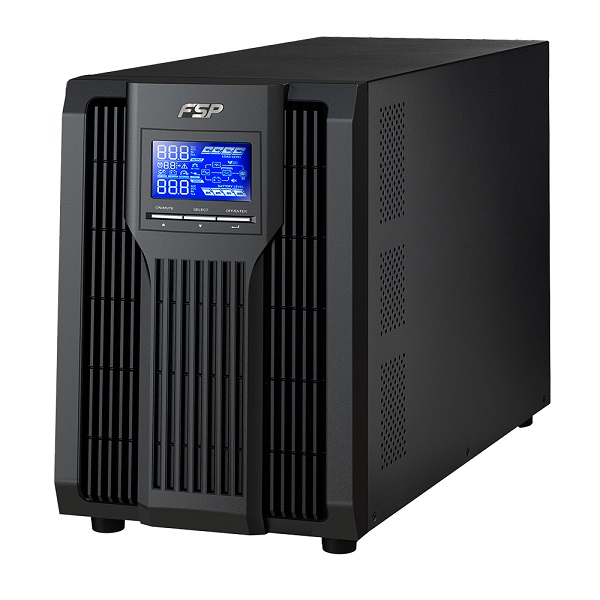

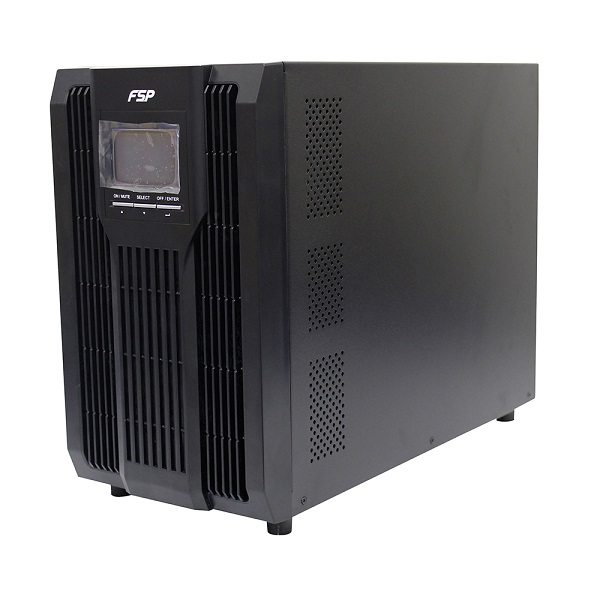

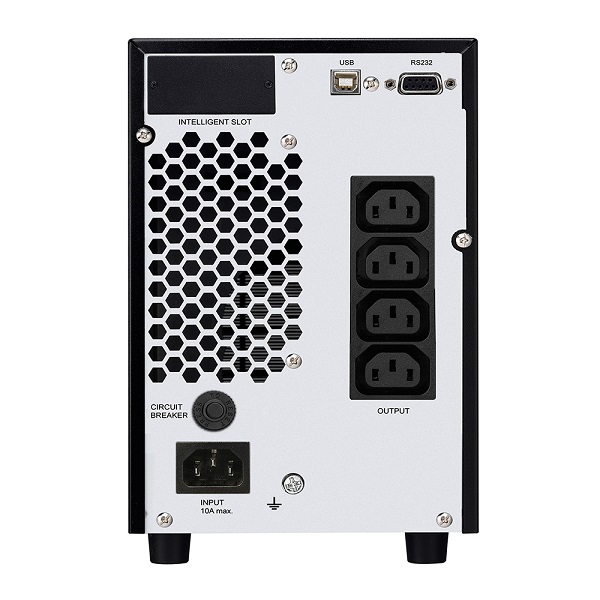

FSP CHAMP 3KVA ON LINE UPS-BK

Description

FSP Champ is the high density version of double-conversion online UPS with an output power factor that reaches 0.9 & featured with ECO mode for energy saving. USB & RS-232 communication ports as standard, built-in intelligent slot for additional adap


Specification

FSP CHAMP 3KVA ONLINE UPS-BLACK

FSP Champ is the high density version of double-conversion online UPS with an output power factor that reaches 0.9 & featured with ECO mode for energy saving. USB & RS-232 communication ports as standard, built-in intelligent slot for additional adap

Features:
-True double-conversion
-Microprocessor control optimizes reliability
-Input power factor correction
-Output power factor 0.9
-Wide input voltage (120 V - 300 V)
-Converter mode available
-ECO mode for energy saving
-Generator compatible
-Charger capacity expansion to 6A for long-run models
-Smart SNMP (optional) works well with either USB or RS-232 together
-Comprehensive display allows easy monitoring and access of UPS status

Specifications:
-Model: Champ 3K
-Input Capacity: 3000 VA / 2700 W
-Input Voltage Range: 100/110/115/120/127VAC or 200/208/220/230/240VAC
-Input Frequency Range: 40Hz ~ 70 Hz
-Output AC Voltage Regulation: ±1%
-Output Frequency: 50 Hz or 60Hz ± 0.5% (Batt. Mode)
-Output Waveform (Batt. Mode): Pure Sinewave
-Transfer Time: 0ms (Typical)
-Battery Type & Number: 12 V / 9 AH, 6
-Battery Typical Recharge Time: 4 Hours recover to 90% capacity
-Noise: Less than 50dBA @ 1 Meter
-Dimensions: 421(L) x 190(W) x 318(H)mm
-Humidity: 20-90% RH @ 0-40 C (non-condensing)
-*IEC C19 power cable is not included
