Specification
WEB LINK: https://www.sonicinformed.co.za/catalogue/peripherals-input-devices-usb-devices/ug-hdmi-25854

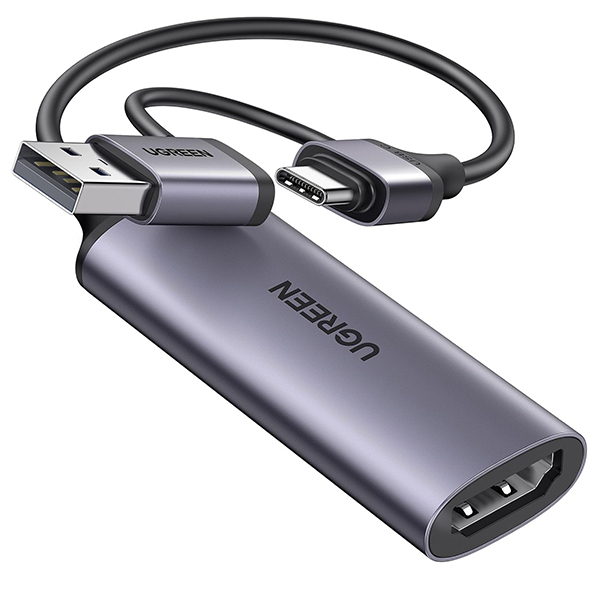

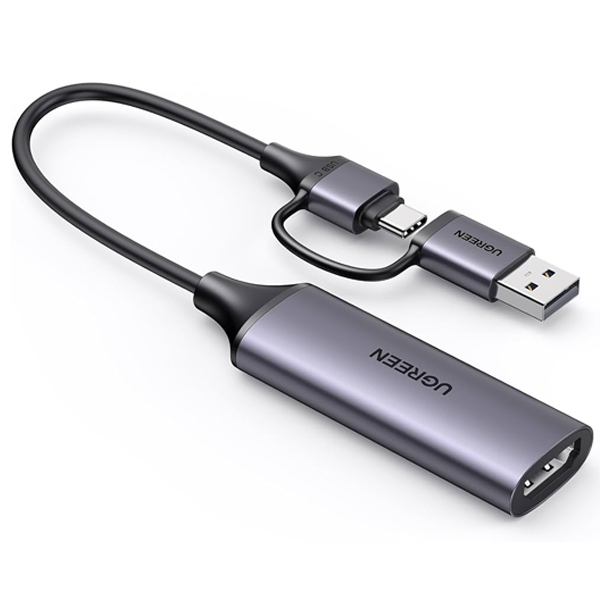

UGreen 25854 HDMI Female 4K@30Hz(max.) Input To 2-in-1 USB-C / A 2.0 Male Lightweight Video Capture Adapter For Streaming With UVC Compatible Devices - Grey Colour
Features:
-Plug and Play
-Aluminum Alloy shell
-1080P Full HD Display
-Supports 4K@30Hz HD input
-Synchronize audio and video
-USB-A/C dual interface design
-Built for Superior Performance
-Compact, Portable and Durable
-Reinforced cable and Aluminum Case
-Easily capture and record in 1080P@60Hz
-Advanced Chipset, maintain stable transmission

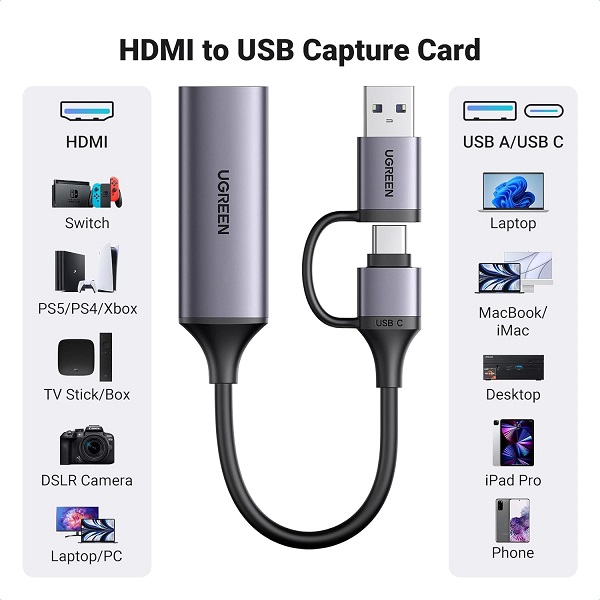

-Compatible with most current laptops/tablets/mobile phones
-Suitable for live streaming, recording, editing & transferring video in HD
Specifications:
-Model No: CM716-25854
-Input: 1x HDMI Female (4K@30Hz)
-Output: 1x USB-C, USB-A Male (1080P@60Hz)
-Input resolution: 4K@30Hz(max.) and backwards compatible
-Capture resolution: 1080P@60Hz
-Shell Material: Aluminum Alloy
-USB standard: transfer speed is 480Mbps
-Video Format: MJPEG
-Colour Depth: 24/30/36-bit
-Pixel Formats: RGB/YCbCr 4:4:4/YCbCr 4:2:2/YCbCr 4:2:0
-Audio Sampling rate: 24bit/48KHz (max.)
-SNR: >90dB
-THD: <80dB
-Compatible systems: Windows 8.1/10/macOS/Linux/Android 5.0 and higher
-Compatible softwares: OBS Studio/XSplit/PotPlayer/QuickTime Player, etc.
NOTE:
-This item only supports HDMI port to USB-A/C port, it does not support bi-directional.
-iOS devices need to be updated to iOS 17 or higher to use it. The iPhone is currently not supported because the iPhone has no UVC function.
-For HDCP supported devices, please disable HDCP first for video capture function.
-For PS4/5 main menu change to Settings->System->HDMI section of the PS4/5 interface, please turn-off enable HDCP.
-For Switch/Xbox HDCP is off by default, HDCP will only activate when apps (Netflix/Hulu) are started, HDCP automatically turns off when media apps is not used - if the signal does come back restart the console.
-Compatible with iPhone 15/15+/15 Pro/15 Pro Max, the iPhone 15 Series can only function as HDMI Input device and CANNOT be used as capture device.
-Weight: 100g
-Dimensions: (L)15 x (W)10 x (H)2cm
What's in the box:
-1x UG 25854 HDMI to USBC/A Vid Adapter
