AVERMEDIA - AVM-EN715



AVM EN715 STD CARRIER BD NVIDIA JETSON

Description

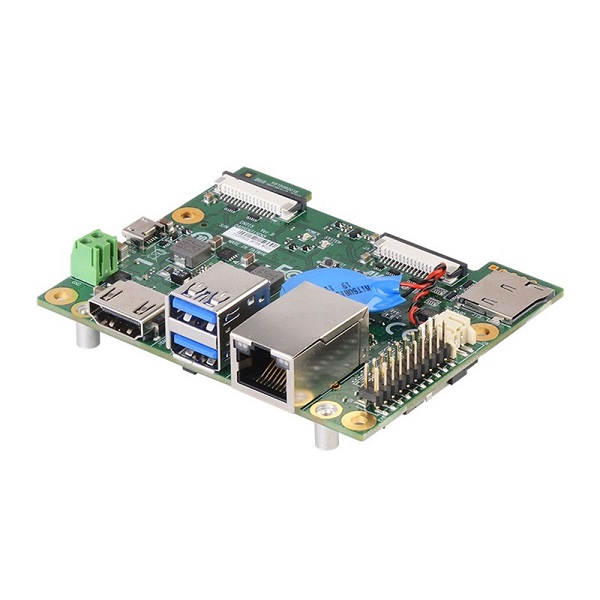

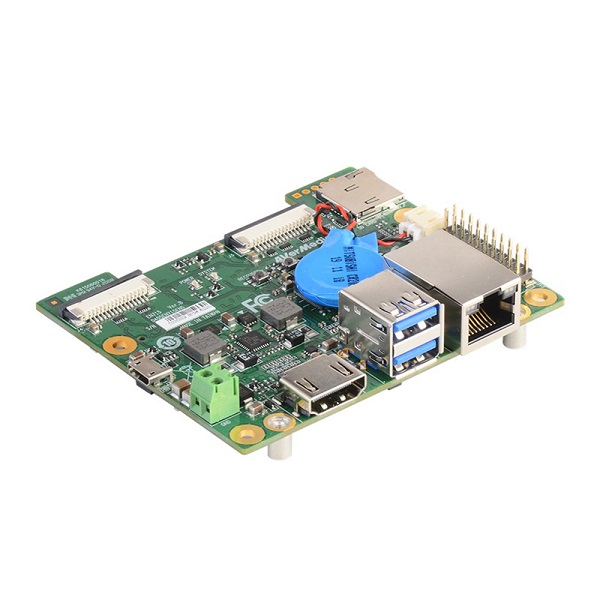

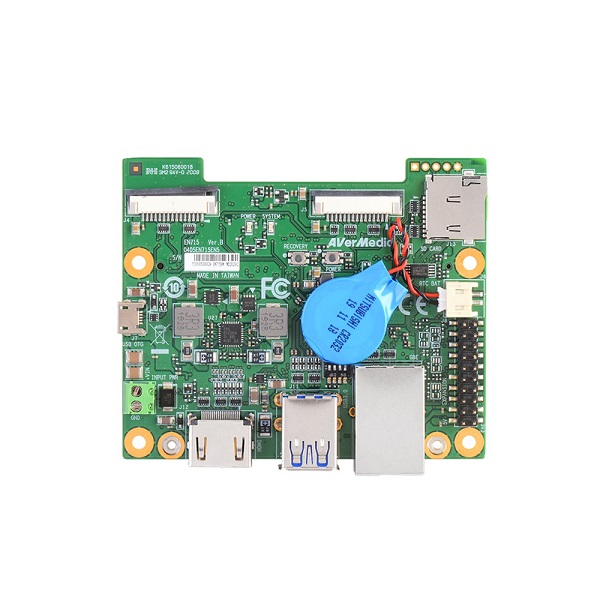

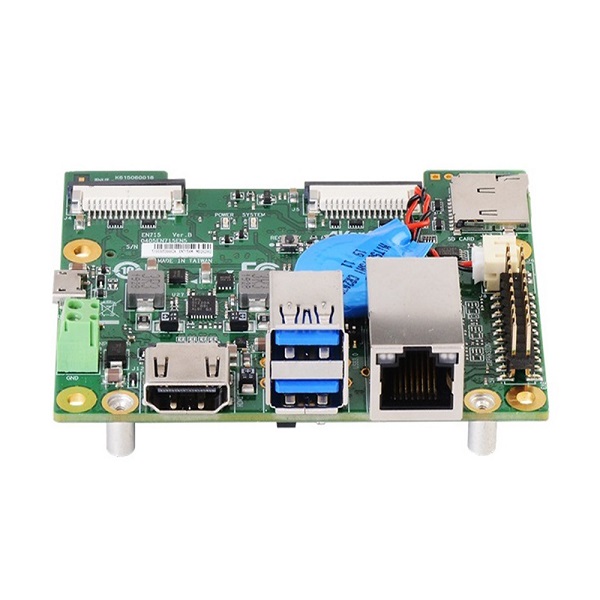

AVerMedia EN715 Standard Carrier Board for NVidia Jetson Nano (V B01) / Xavier NX Module


Specification

WEB LINK: https://www.sonicinformed.co.za/catalogue/peripherals-input-devices-usb-devices/avm-en715;

AVERMEDIA EN715 STANDARD CARRIER BOARD FOR NVIDIA JETSON NANO (v. B01)/XAVIER NX MODULE

Features:
-Fully support NVIDIA® Jetson Nano (Version B01)/Xavier NX module
-1x GbE, 2x USB 3.0, 1x 4Kp60 HDMI outputs
-2x 2 Lane MIPI CSI-2
-1x 4 Lane MIPI CSI-2
-20-pin Expansion header
-1x micro-SD card slot
-Operating temperature: 0°C ~ 70°C

Specifications:
-Model: EN715
-Type: Carrier Board
-NVIDIA GPU SoC Module Compatibility: NVIDIA Jetson Nano (Version B01)/Xavier NX module
-Networking: 1x GbE RJ-45
-Display Output: 3840 x 2160 at 60Hz
-Storage: 1x micro-SD card slot
-Expansion Header: 20 pins: 2x I2C, 1x UART, 9x GPIOs
-Input Power: 3.5mm Screw Terminal; 9V~19V is recommended
-Button: Power and recovery
-RTC Battery: Support RTC battery and Battery Life Monitoring by MCU
-Certifications: CE, FCC, KC

Temperature:
-Operating temperature 0°C~70°C
-Storage temperature -40°C ~ 85°C
-Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs:
-2x 2 lane MIPI CSI-2, 15 pin FPC 1mm Pitch Connector (Compatible
on NVIDIA® Jetson Nano Developer Kit)
-1x 4 lane MIPI CSI-2, 36 pin FPC 0.5mm Pitch Connector

Package Specs:
-Weight: 70g
-Dimensions(L*W*H): 70.6*87*27.3mm
