Specification

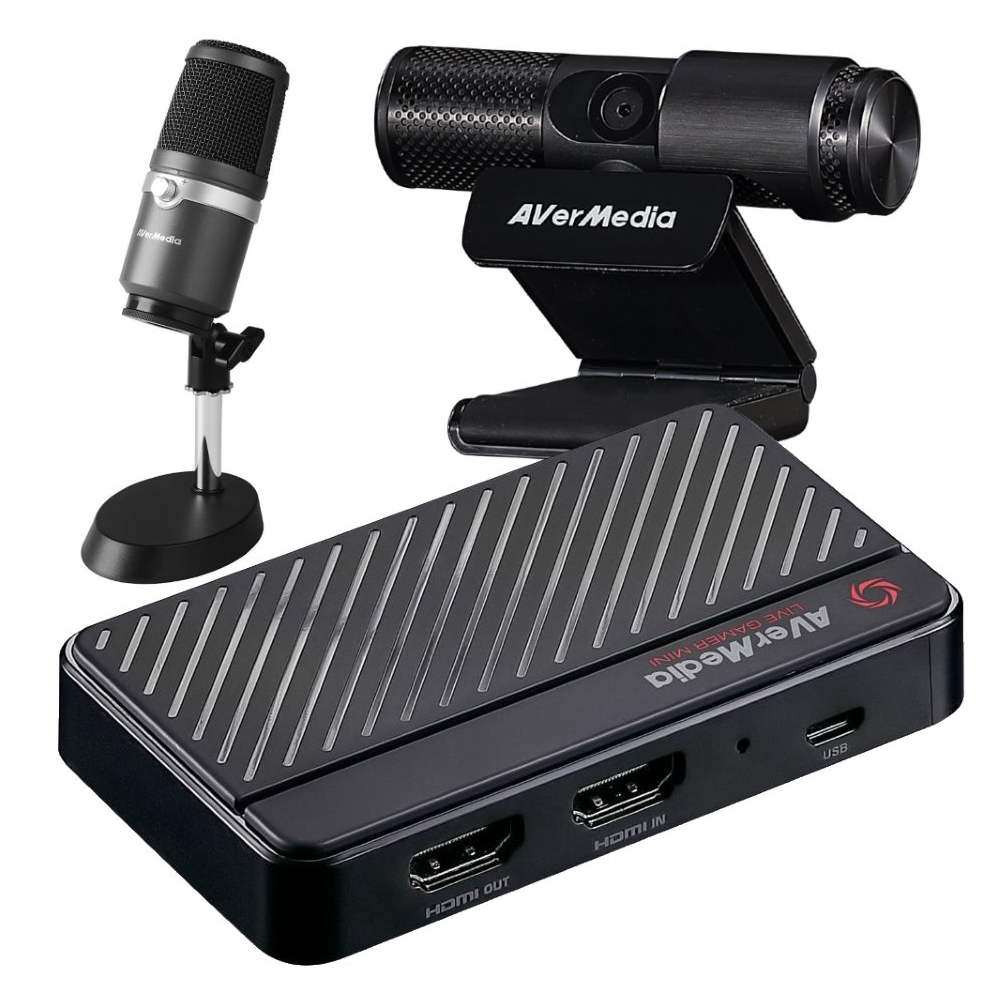

AVERMEDIA LIVE STREAMER 311 KIT - YOUTUBER STARTER PACK
Features:
Super Smooth Full HD 60FPS Capture
Studio Quality USB Microphone
1080P High-Definition Webcam
All Plug and Play Devices
RECentral: Powerful Streaming Software
Specifications:

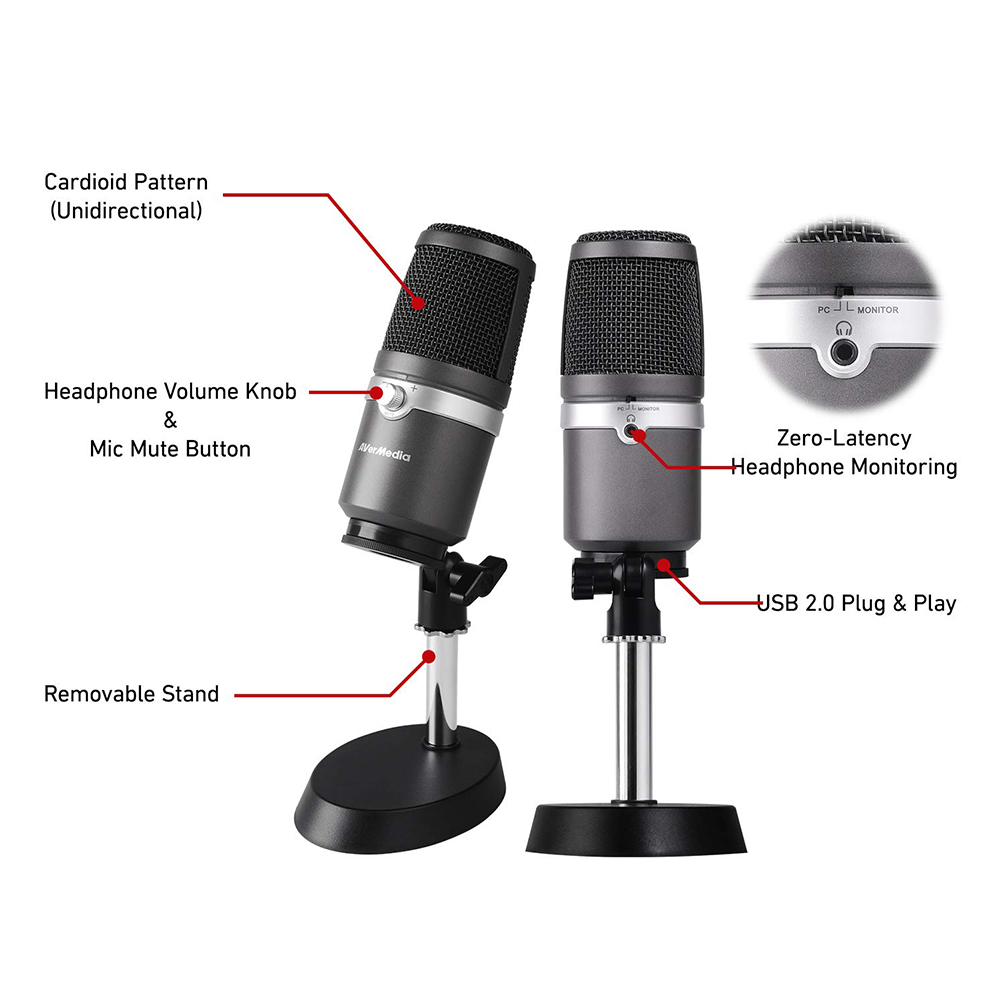

Microphone (AM310 USB MICROPHONE):
Type: Uni-directional condenser microphone
Polar pattern: Cardioid
Sample rate: 48 kHz
Bit rate: 16-bit
Power required: USB (5V DC)
Sensitivity: -60 ± 5dB (at 1 kHz, 0 dB = 1 V/u bar)
Frequency response: 20-20,000 Hz
Dimensions: 90(W) x 130(D) x 270(H)
Weight (mic): 468 g ± 5 g
Cable Length: 2.4 m
Operating System: Windows 10/8.1/7 or Mac OS 9/X, USB 2.0 port

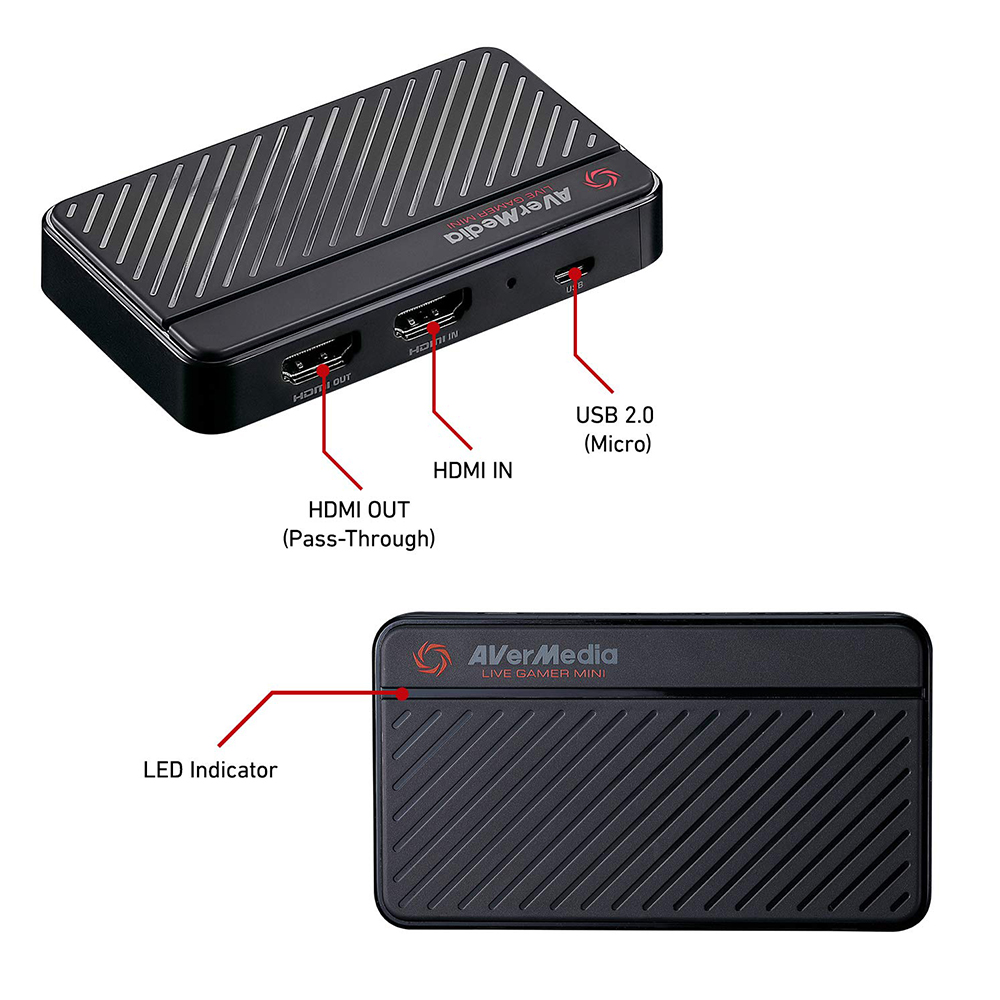

Capture Card (GC311 LIVE GAMER MINI)
Interface: Micro USB2.0 (UVC)
Input & Output (Pass-Through): HDMI 1.4
Pass-Through Resolution: 1080p60 Max.
Record Resolution: 1080p60 Max.
Supported Resolution: 1080p, 1080i, 720p, 576p, 480p, 480i
Record Format: MPEG 4 (H.264 + AAC)
Dimensions: 100(W) x 57(D) x 18.8(H) mm
Weight: 74.5 g
**LGM does not support viewing/recording/streaming of HDCP protected signals**
**LGM does not support 4K, HDR, wide angle resolutions or high refresh rates**
System Requirements:
Operating System: Windows 10 x64 (UVC Protocol)
Desktop: Intel Core i5-3330/ AMD A10-789K (Quad-Core) or above + NVIDIA GTX 650/ AMD Radeon R7 250X or above + 4GB RAM
Laptop: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M + 4GB RAM (8GB Recommended)

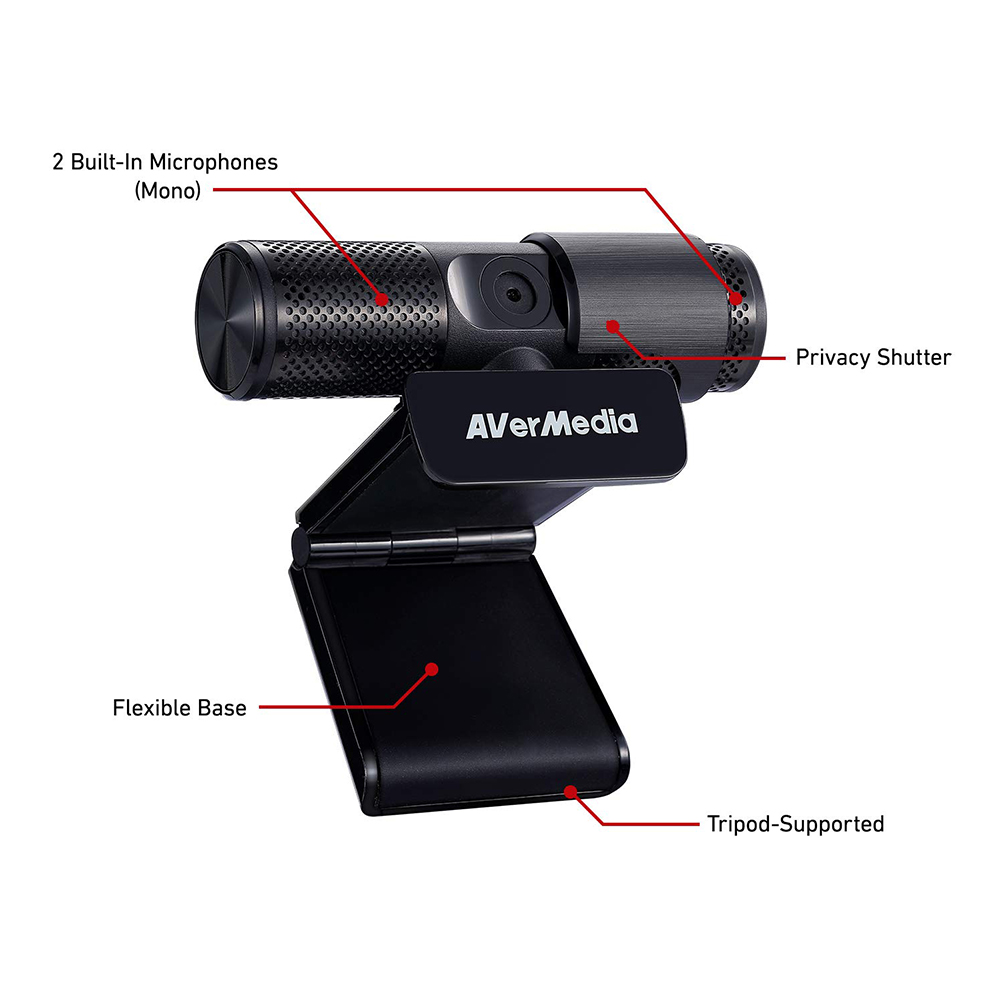

WebCam (PW313 LIVE STREAMER CAM 313):
Interface: USB2.0
Sensor: 1/2.7" CMOS sensor
Image Resolution: 2MP
Max resolution: 1080p30 - 720p30
Field of View: Horizontal 65°
Focus Type: Fixed
Working Distance: 10cm -1m)
Lens F#: 2.0
Video Encoding: MJPEG
Privacy Shutter: Yes
Built-in mic: Dual Mics (Mono)
Dimensions: 90(W) x 53(D) x 47(H) mm
Weight: 130 g
Cable Length: 1.5 m
Operating system: Windows 10/7 or Mac OS 10.11 or above USB2.0 port
Box Contents:
Live Gamer MINI (GC311): USB Cable, Quick Guide
Live Streamer CAM 313 (PW313): Quick Guide
USB Microphone (AM310): Base and Shaft, Mount, USB Cable, Quick Guide
