Specification

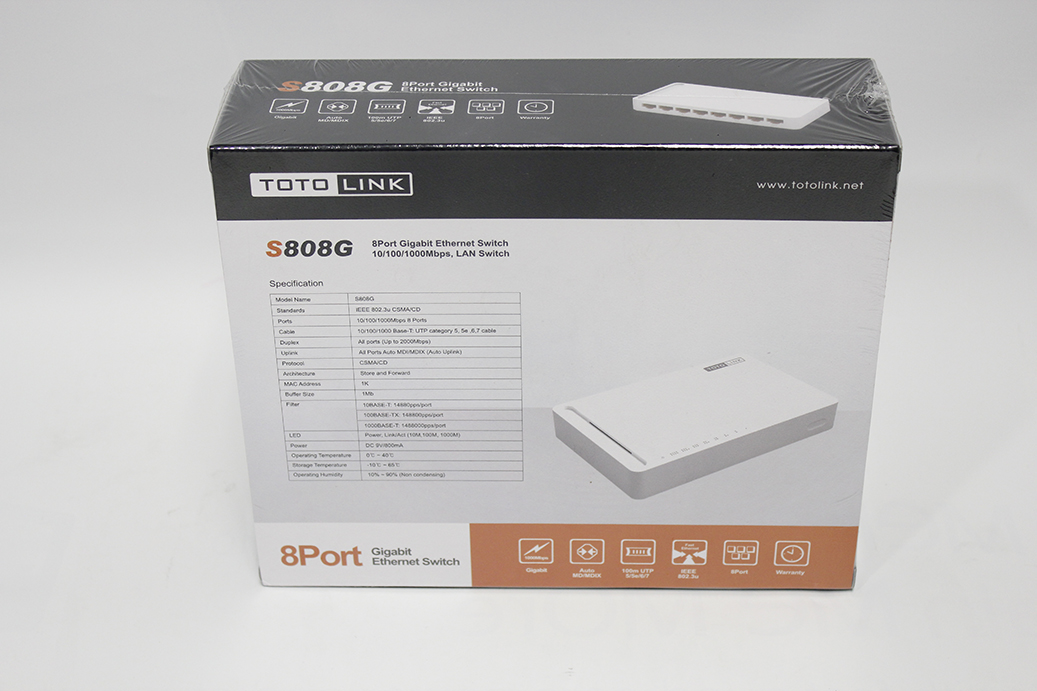

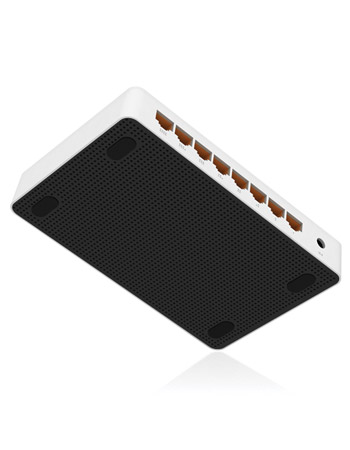

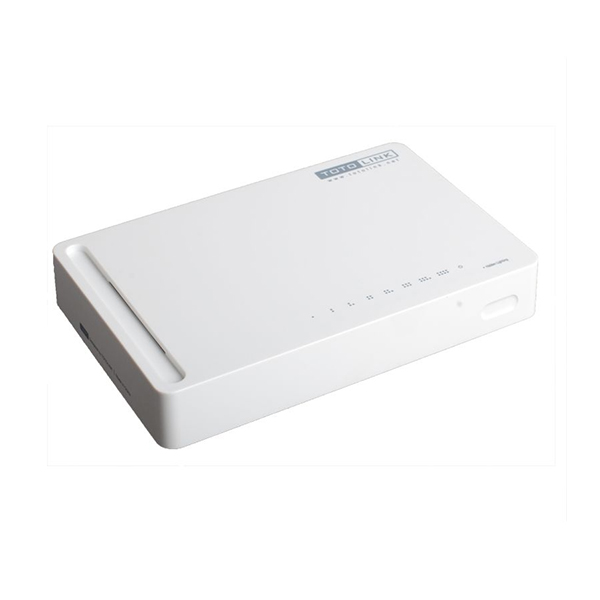

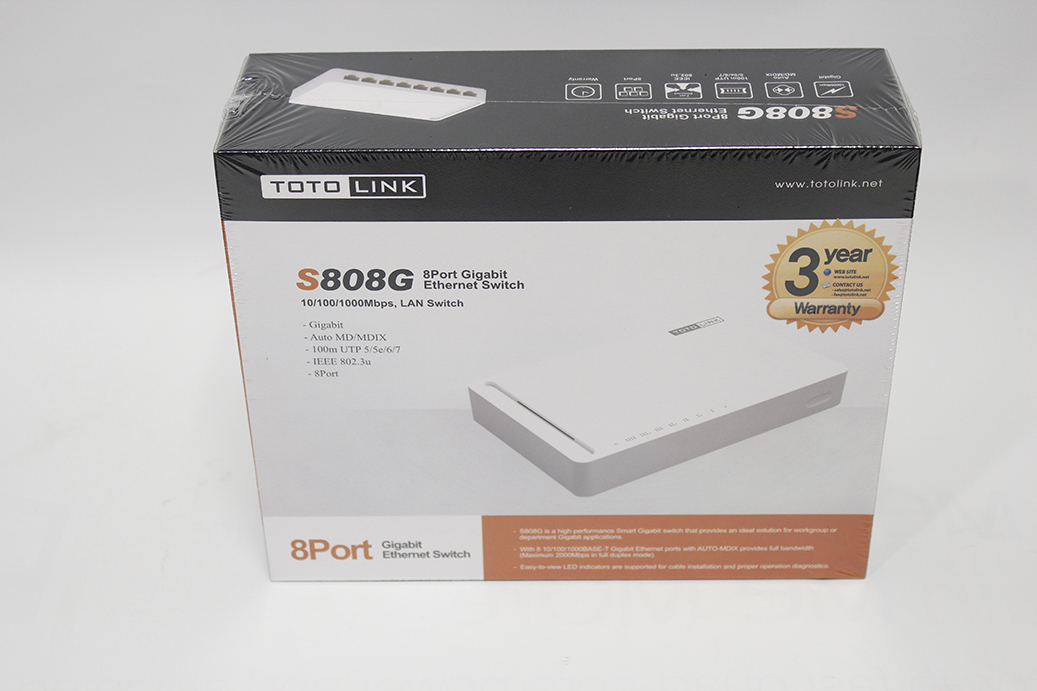

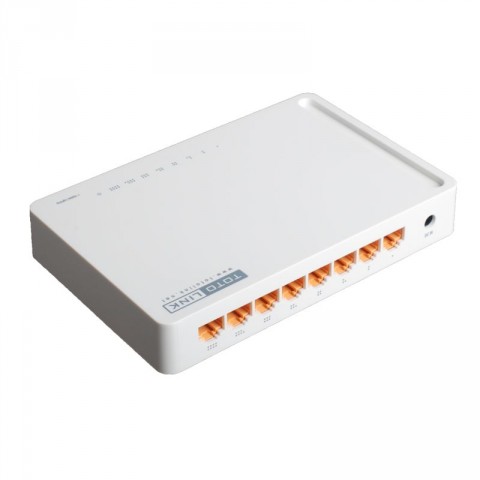

Totolink S808G 8-Port Gigabit Switch
Features:
8 10/100Mbps auto-negotiation RJ45 ports
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
4K entry MAC address table and automatic address learning
Auto-MDI/MDIX eliminates the need for crossover cables
Store-and-Forward Switching scheme
Performs non-blocking full wired speed
Supports Jumbo Frame (9KByte)
Supports IGMP Snooping
Supports Giga Lite to improve transfer rate for 4-wire UTP gigabit network
Specification:
Hardware features:
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface: 8*10/100/1000Mbps auto-negotiation RJ-45 Ports (Auto MDI/MDIX)
Power Supply: 9V DC/0.8A
Dimensions: 163mm x 106mm x 25mm (L x W x H)
LED Indicators: Power, Link/Activity
MAC Address Learning: Auto-learning, Auto update
MAC Address Table: 8K
Network Media:
10Base-T:
UTP Cat 3, 4, 5 cable (100m, max.)
EIA/TIA-568 100O STP (100m max.)
100Base-Tx:
UTP Cat 5, 5e cable (100m, max.)
EIA/TIA-568 100O STP (100m max.)
1000Base-T: UTP Cat 5, 5e cable (100m, max.)
Frame Filtering:
10Mbps: 14,880pps
100Mbps: 148,800pps
1000Mbps: 1,488,000pps
Backup Bandwidth: 16Gbps
Transfer Method: Store-and-forward
Environment:
Operation Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
