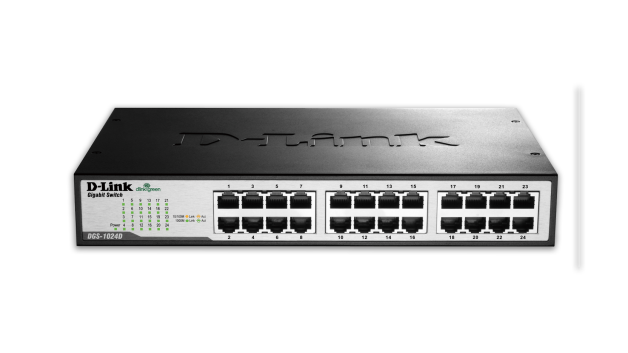

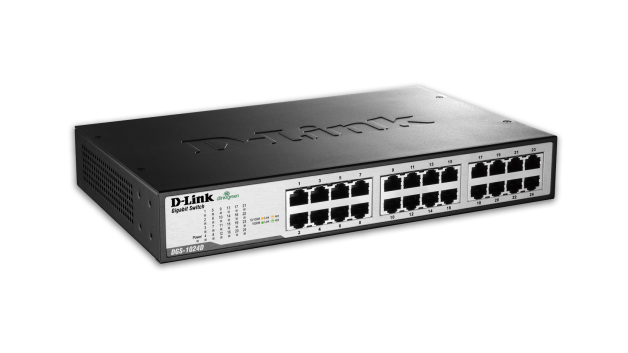

D-LINK - LA-DL-GS1024D



D-LINK 24PORT GIGABIT DESKTOP SWITCH

Description

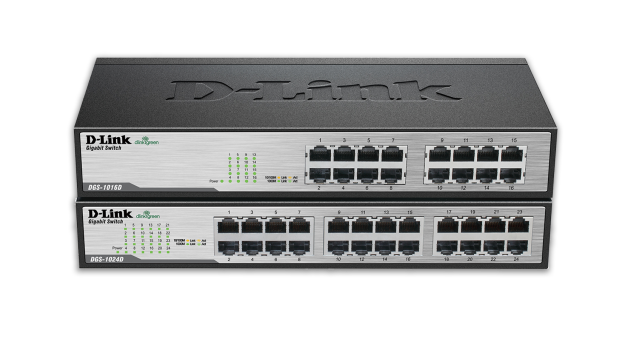

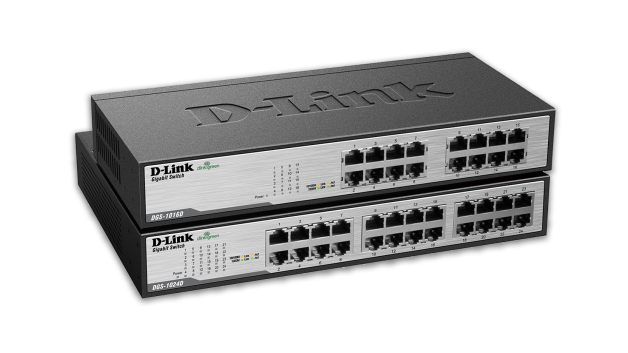

D-LINK DGS-1024D, The D-Link 16-Port Gigabit Unmanaged Desktop/Rackmount Switch and the 24-Port Gigabit Unmanaged Desktop/Rackmount Switch each offer an economical way for SOHO and small to medium business (SMB) to deploy an energy efficient switch.


Specification

D-Link 24Port Gigabit Desktop Switch

Technical Specifications:
General:
Number of Ports:
DGS-1024D: Twenty-four 10/100/1000 Gigabit ports

Standards:
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control

Data Transfer Rates:
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)

Network Cables:
10BASE-T:
UTP CAT 3, 4, 5/5e (100 m max)
EIA/TIA-586 100-ohm STP (100 m max)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max)
EIA/TIA-568 100-ohm STP (100 m max)

Functionality:
D-Link Green Features:
IEEE 802.3az Energy Efficient Ethernet (EEE)
Link status detection power saving
Cable length detection power saving
RoHS Compliance

Media Interface Exchange: Auto MDI/MDIX
Transmission Method: Store-and-Forward switching method
MAC Address Table: 8K MAC addresses
RAM Buffer: 512 KBytes RAM for data buffering
Jumbo Frames:
DGS-1024D: 9600 Bytes
Switching Capacity:
DGS-1024D: 48 Gbps

Port Packet Filtering:
10M: 14,880 pps
100M: 148,800 pps
1000M: 1,488,000 pps

LEDs:
DGS-1024D:
Power LED
24 Link/Activity/Speed LEDs (one per port)

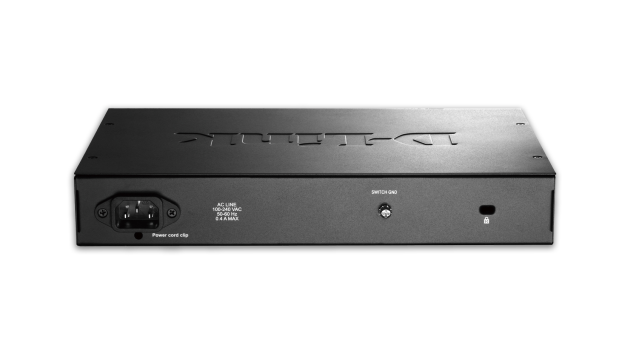

Power Inputs: 100 to 240V AC Input
Power Consumption:
DGS-1024D:
Standby: 6.5 watts
Maximum: 13.5 watts

Heat Dissipation:
DGS-1024D:
Standby: 22.165 btU/h
Maximum: 44.035 btU/h
MTBF:
DGS-1024D: 633,536 hours

Dimensions:
DGS-1024D: 11.02 x 7.09 x 1.73 inches (280 x 180 x 44 mm)
Operating Temperature: 32 to 104 °F (0 to 40 °C)
Storage Temperature: 14 to 158 °F (-10 to 70 °C)
Humidity: 5% to 90% non-condensing

Certifications:
FCC Class A
ICES-003 Class A
CE Class A
C-Tick Class A
CB
cUL
