D-LInk GS1005D, 5 Port Gigabit Switch 10/100/1000. Features Green eco-friendly technology: Reduces power consumption & creates less heat, Features diagnostic LEDs which display status and activity, allowing you to quickly detect and correct problems.

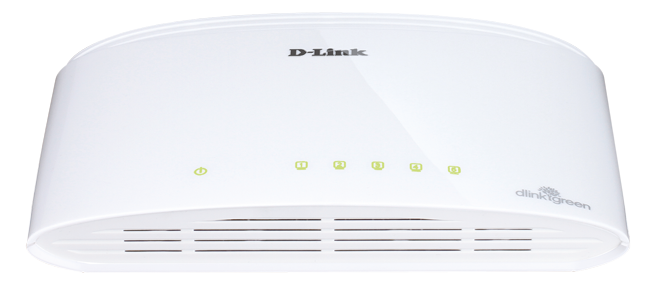

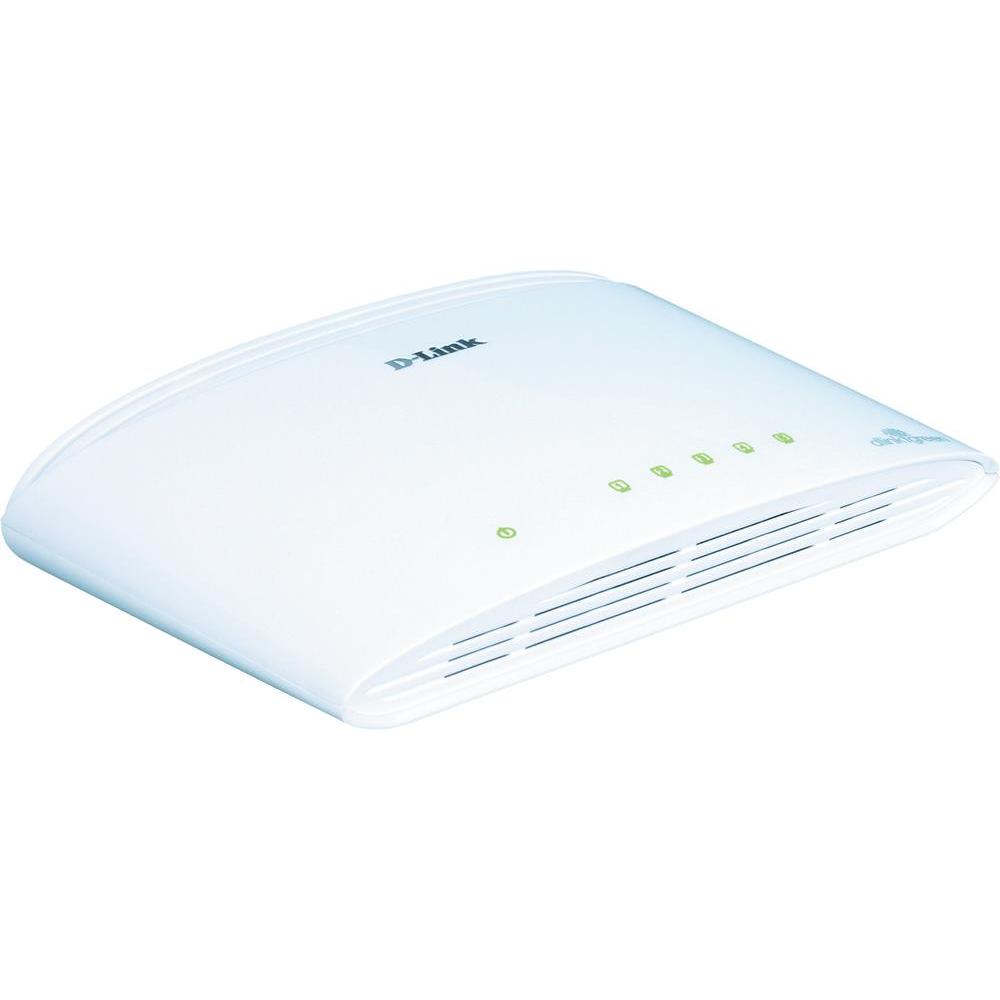

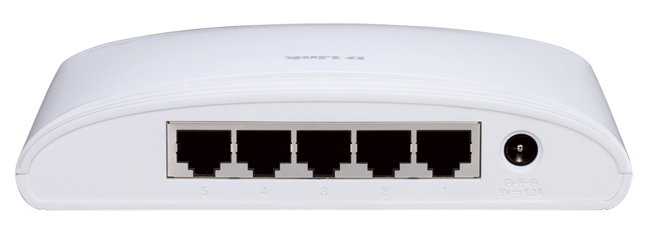

D-Link 5Port Gigabit Switch

Key Features:
Built-in D-Link Green Technology
Inexpensive Gigabit solution for Home/SOHO
Five 10/100/1000 Mbps Gigabit ports
10 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Supports 9,000 Byte Jumbo Frames
Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
Supports Cable Diagnostics Function
RoHS compliant
Plug-and-play installation

IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol: CSMA/CD
Data Transfer Rates
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)

Topology: Star
Network Cables:
UTP CAT 3, 4, 5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX, 1000BASE-T:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange: Auto MDI/MDIX adjustment for all ports
LED Indicators:
Per port: Link/Activity/Speed
Per device: Power

Transmission Method: Store-and-forward
MAC Address Table: 8K entries per device
MAC Address Learning: Automatic update
Packet Filtering/Forwarding Rates:
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer: 128 KBytes per device
DC Input: External 5 V/1 A Power Adapter
Power Consumption:
Power On (Standby):
DC input: 0.86 watts
AC input: 1.7 watts
DC input: 2.67 watts
AC input: 4.3 watts

Heat Dissipation:
Power On (Standby): 5.8 BTU/h
Maximum: 14.67 BTU/h
MTBF: 748,420 hours

Operating Temperature: 0 to 40 °C (32 to 104 °F)
Storage Temperature: -10 to 70 °C (14 to 158 °F)
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing
Device Dimensions (W x D x H):: 144.2 x 100.2 x 32.6 mm (5.7 x 4.0 x 1.3 inches)

FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
