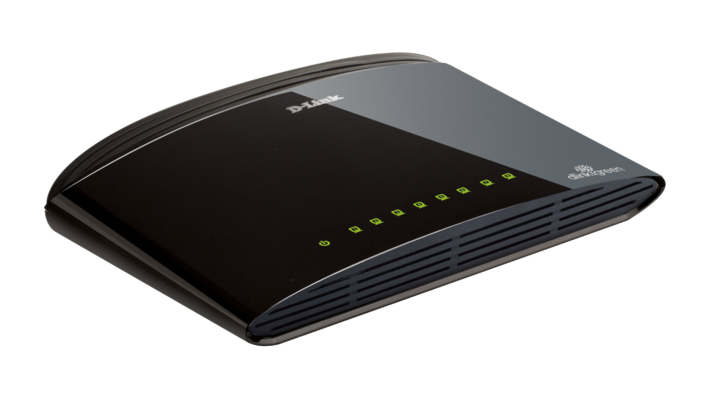

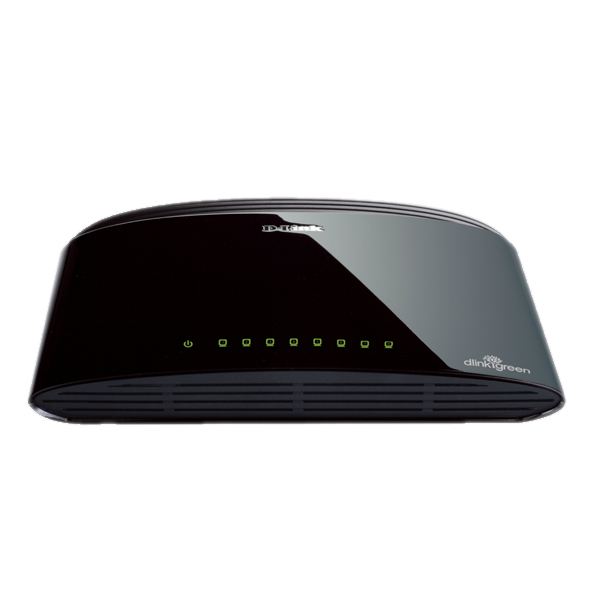

D-LINK - LA-DL-DES1008D



D-LINK 8 PORT ETHERNET SWITCH - 10/100

Description

D-LINK DES1008D, 8 Port Ethernet Switch, 10/100 Mbps Ports, All ports support 802.3x flow control, All ports support auto-negotiation of MDI/MDIX cross over


Specification

D-Link DEs-1008D 8Port Ethernet Switch

Features:
Inexpensive Fast Ethernet solution for Home/SOHO

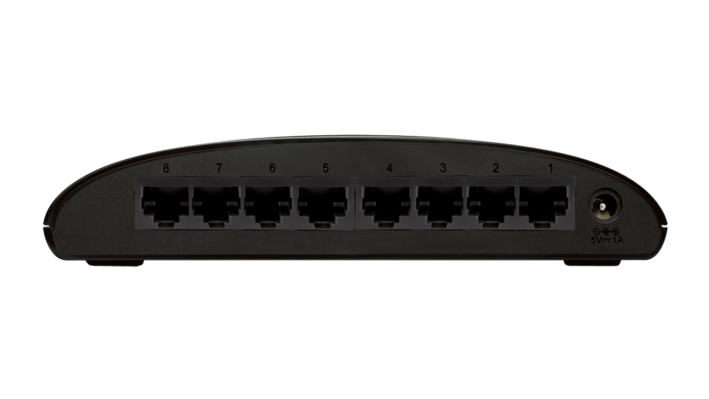

Eight 10/100 Mbps Fast Ethernet ports
Auto MDI/MDIX crossover for all ports
Store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast
Ethernet speeds
IEEE 802.3x Flow Control
Plug-and-play installation
RoHS compliant

Switching Fabric: 1.6 Gbps switching fabric
Protocol: CSMA /CD

Standards:
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI /IEEE 802.3 NWay auto-negatiation
IEEE 802.3x flow control
IEEE 802.3az Energy-Efficient Ethernet (EEE)

Data Transfer Rates:
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)

Topology: Star
Media Interface Exchange: Auto MDI /MDIX adjustment for all ports

Network Cable:
10BASE-T:
UTP CAT 3/4/5/5e (100m max)
EIA / TIA-586 100-ohm STP (100m max)
100BASE-TX:
UTP CAT 5/5e (100m max)
EIA / TIA-568 100-ohm STP (100m max)

LED Indicators:
Per port: Link / Activity
Per device: Power

Transmission Method: Store-and-forward
MAC Address Table: 1K entries per device
MAC Address Learning: Automatic update

Packet Filtering:
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port

RAM Buffer: 57 KBytes per device
DC Input: External 5 V/1.2 A power adapter

Power consumption:
Power On (Standby):
DC input: 0.184 watts
AC input: 0.986 watts
Maximum:
DC input: 1.9 watts
AC input: 2.74 watts

Heat Dissipation:
Power On (Standby):
AC input: 3.365 BTI /h
Maximum:
AC input: 9.351 BTU /h

Operating Temperature: 0 to 50°C (32 to 122°F)
Storage temperature: -10 to 70°C (14 to 158°C)
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing
Device Dimensions (W x D x H): 164.5 x 111.5 x 36.0mm (6.5 x 4.4 x 1.5 inches)

Certifications:
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB
