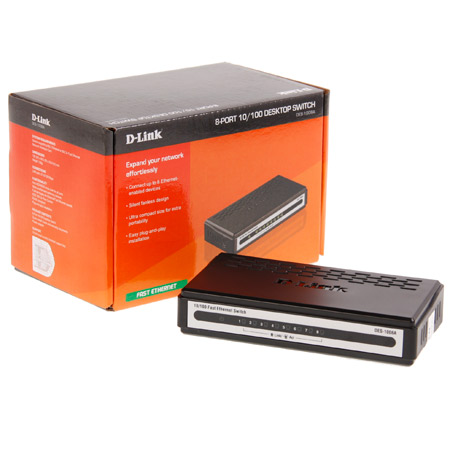

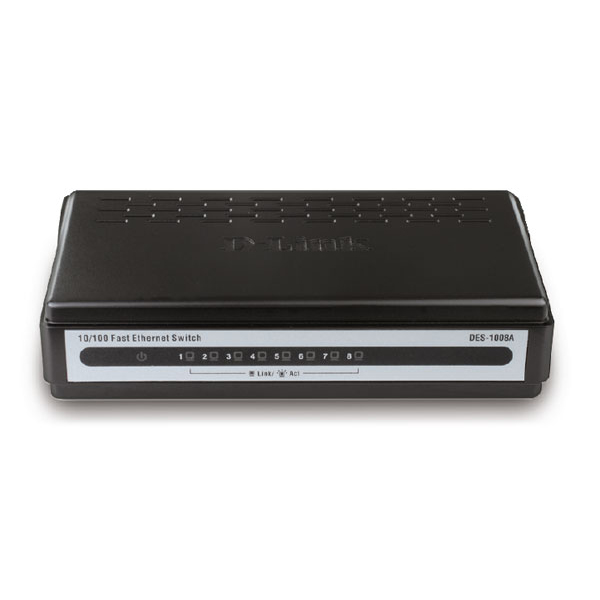

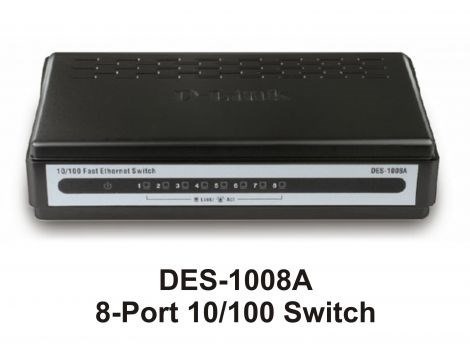

D-LINK - LA-DL-DES1008A



D-LINK DES-1008 8-PORT 100M UNMANAGED SW

Description

D-LINK DES1008A, 8-PORT Unmanaged switch. 8 x 10/100Mbps RJ-45 Ports. Auto-Negotiation. Auto-Senses Cable Type (Auto-MDIX). Half/Full Duplex Support. Compact Housing


Specification

D-Link DES-1008 8Port 100Mbps Unmanaged Switch

General features:

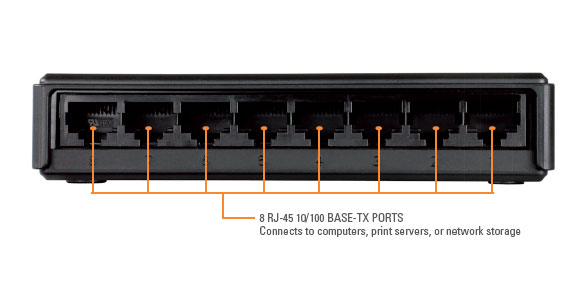

Device Interfaces: 8 10/100 Fast Ethernet LAN ports

Advanced Features:
Green Ethernet
1.6Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Compliance with IEEE 802.3az EEE power saving
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Plug-and-Play installation
RoHS compliant
Supports 2048-byte Jumbo Frames

Specifications:
Protocol: CSMA/CD

Standards:
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control

Data Transfer Rates:
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)

Topology: Star
Media Interfa ce Exchange: Auto MDI/MDIX adjustment for all ports

Network Cables:
10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

LED Indicators:
Per port: Link/Activity
Per device: Power

Transmission Method: Store-and-forward
MAC Address Table: 1K entries per device
MAC Address Learning: Automatic update

Packet Filtering/Forwarding Rates:
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port

RAM Buffer: 57 KBytes per device
DC Input: External 5V/1A power adapter

Power Consumption
Power On (Standby):
DC input: 0.3 watts
AC input: 0.5 watts
Maximum:
DC input: 1.6 watts
AC input: 2.5 watts

Heat Dissipation:
Power On (Standby): AC input: 1.706 BTU/h
Maximum: AC input: 8.53 BTU/h

Operating Temperature: 0° to 40°C (32 to 104°F)
Storage Temperature: -10° to 70°C (14 to 158° F)
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing
Dimensions (W x D x H): 128 x 68.5 x 25.4 mm (5.0 x 2.7 x 1.0 inches)

Certifications:
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
cUL
LVD
