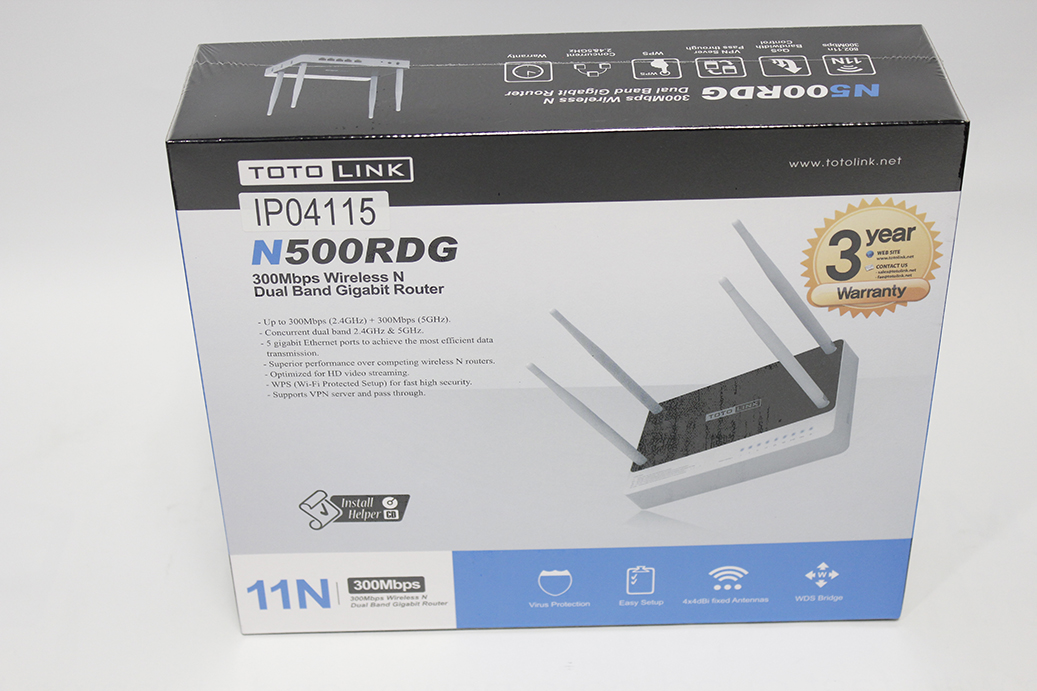

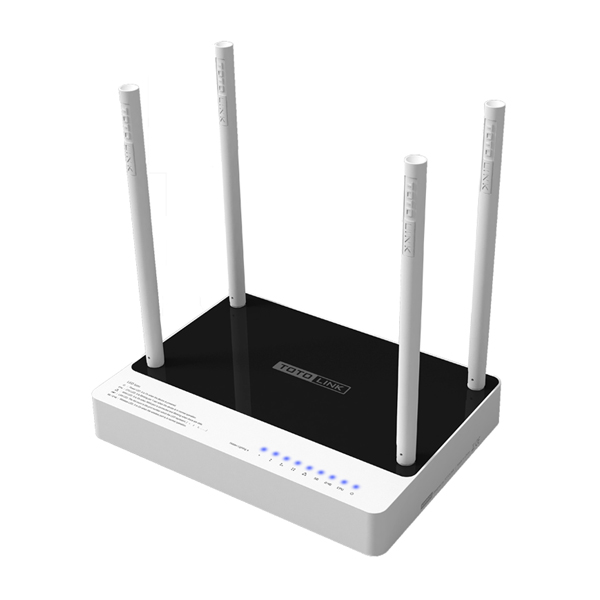

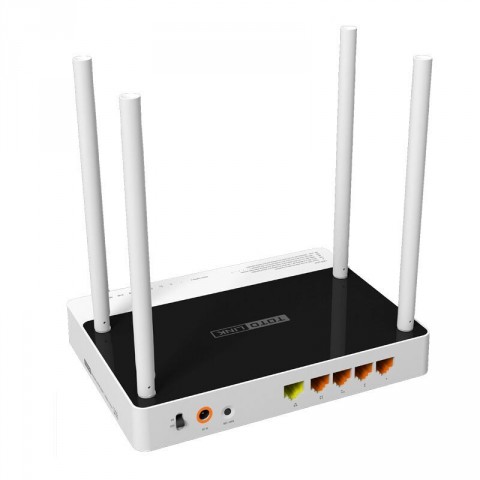

TOTOLINK - ZC-N500RDG



TOTOLINK 300MBPS WIFI-N DUAL BAND ROUTER

Description

TOTOLINK N500RDG, 600Mbps Wireless N Dual Band Gigabit Router, 300Mbps(2.4G)+300Mbps(5G), four 4dBi fixed antennas, Virtual Private Network(VPN), effective Multi-SSID function, outstanding Bandwidth Control with Smart QoS, robust security.


Specification

Totolink Wireless N Dual Band Router

Features:
Double your network bandwidth (IEEE 802.11b/g/n 2.4GHz, IEEE 802.11a/n 5GHz)
Up to 600Mbps data rate for Wi-Fi network while 2.4G and 5G work concurrently
Advanced MIMO technology enhances the throughput and wireless coverage
5GHz band is optimized for HD video streaming
5*gigabit Ethernet ports can achieve the most efficient transmission speed
Supports PPPoE, DHCP and Static IP broadband functions
Provides 64/128-bit WEP, WPA/2 and WPA/2 (TKIP+AES) security
Connects to secure network easily and fast using WPS
Multi-SSID allows user to create multiple LANs according to their needs
The IP, MAC and URL filtering makes access and time control more flexibly
The VPN server can not only protect the privacy of your informantion, but also simplify network management
Smart QoS function can assign bandwidth to PCs equally by one click
Repeater function expands the wireless coverage and allows more terminals to access Internet

Specification:
Hardware features:
Interface:
4*10/100/1000Mbps LAN Ports
1*10/100/1000Mbps WAN Port
Power Supply: 5V DC/2.5A
Button:
1*RST/WPS Button
1*Power ON/OFF Slide Switch
LED Indicators: 1*Power, 1*CPU, 1*2.4G Wireless, 1*5.8G Wireless, 1*WAN, 4*LAN

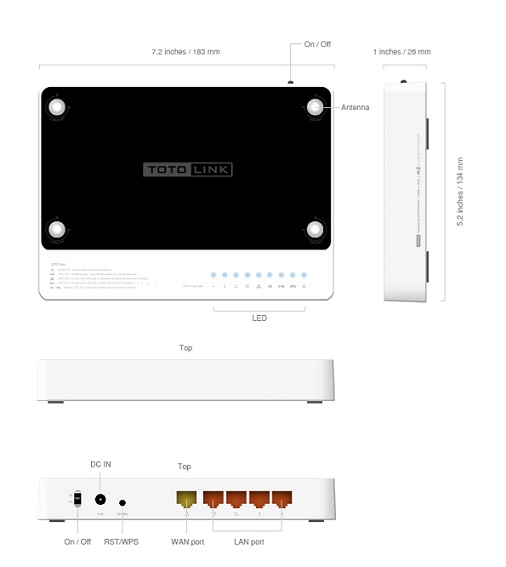

Dimensions: 183.4mm x 134.4mm x 26mm (L x W x H)
Antenna: 4*4dBi fixed antennas (2*2.4GHz, 2*5GHz)

Environment:
Operation Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing

Wireless features:
Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
RF Frequency: 2.4GHz/5GHz
Data Rate:
2.4G: Up to 300Mbps
5G: Up to 300Mbps
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
EIRP: <20dBm
Modulation Type: DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM)

Reception Sensitivity:
270M: -61 dBm@10% PER
135M: -65 dBm@10% PER
54M: -68 dBm@10% PER
11M: -85 dBm@8% PER
6M: -88 dBm@10% PER
1M: -90 dBm@8% PER

Software features:
Network:
WAN Type:
PPPoE/DHCP/Static IP
LAN Interface
Wireless(2.4GHz/5GHz): Multiple BSS

Multibridge(Repeater):
Wireless Bridge/Wireless WAN
MAC Authentication
WDS
WPS

NAT/Routing:
Port Forwarding
DMZ/Twin IP
Port Trigger
Routing Table

Firewall:
Internet Access Control:
IP/MAC Address filtering
Net Detector
Remote/Internal access list

Utility:
VPN Server(5 VPN tunnels)
DDNS
WOL
Host Scan

Traffic:
QoS
Connection Control
Wired Port Link (speed, duplex)

Management:
System Log
User Name & Password
Firmware Upgrade
System Time
Configuration backup/restore
