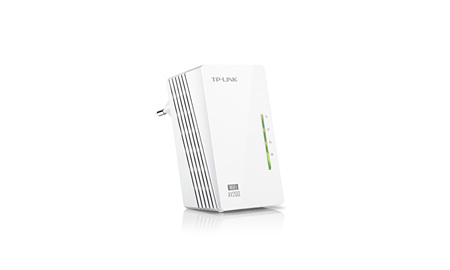

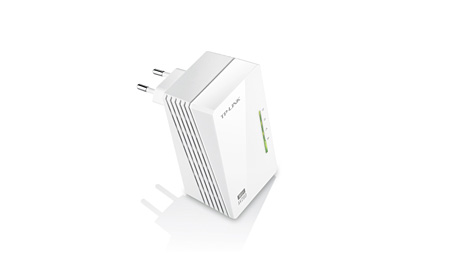

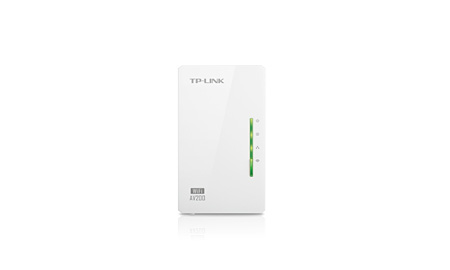

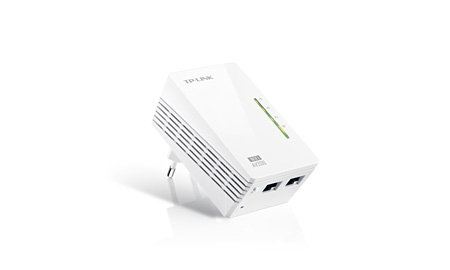

TP-LINK - LP-TP-WPA2220



TP-LINK 200MBPS WIRELESS-N POWER ETHERNE

Description

TP-LINK WPA2220, TP-LINK's TL-WPA2220 extends your Internet connection to every room of the house through your home's existing electrical circuitry. The TL-WPA2220 features a Wi-Fi Clone Button enabling Super Range Extension.


Specification

TP-Link 200Mbps Wireless N Power Ethernet

Features:
Standards and Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface: 2*10/100Mbps Ethernet Port
Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
Power Consumption: Maximum: 5.0W (220V/50Hz), Typical: 5.0W (220V/50Hz), Standby: 2.5W (220V/50Hz)
LED Indicator: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions (W x D x H): 3.7 x 2.1 x 1.6 inch (94x54x40mm)
Range: 300Meters over electrical circuit

Wireless Features:
Frequency: 2.4-2.4835GHz
Signal Rate: 11n: Up to 300Mbps(dynamic), 11g: Up to 54Mbps(dynamic), 11b: Up to 11Mbps(dynamic)

Reception Sensitivity: (270M, 130M, 108M, 54M -68dBm@10% PER), 11M: -85dBm@8% PER, 6M: -88dBm@10% PER, 1M: -90dBm@8%PER
Transmit Power: CE:<20dBm(2.4GHz), FCC:<30dBm
Wireless Functions: Enable/DisableWireless Radio, WMM, Wireless Statistics
Wireless Security: 64/128-bit WEP/WPA/WPA2,WPA-PSK/WPA2-PSK

Software Features:
Modulation Technology: OFDM (PLC)
Encryption: Powerline Security: 128-bit AES, Wireless Security: WEP, WPA/WPA2, WPA-PSK, WPA2-PSK Encryption

Other:
Certification: CE, FCC, RoHS
Package Contents: Powerline Ethernet Adapter TL-WPA2220, 6.5 ft. (2m) Ethernet cable (RJ45), Resource CD, Quick Installation Guide
System Requirements: Windows 2000/XP /2003/Vista, Windows 7/8, Mac, Linux

Environment:
Operating Temperature: 0~40 Degree Celcius
Storage Temperature: -40~70 Degree Celcius
Operating Humidity: 10~90% non condensing
Storage Humidity: 5~90% non-condensing
