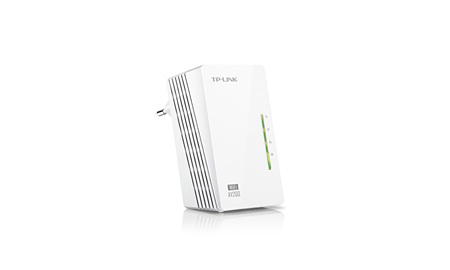

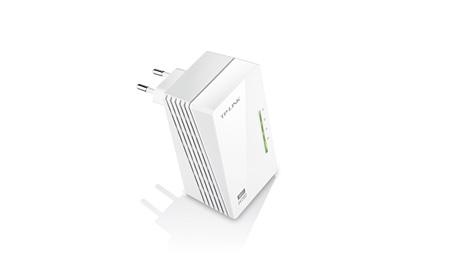

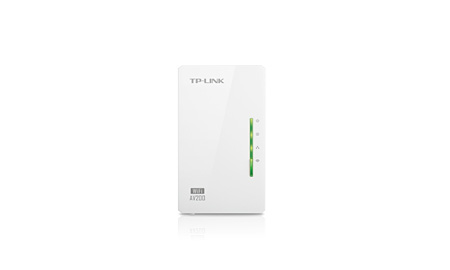

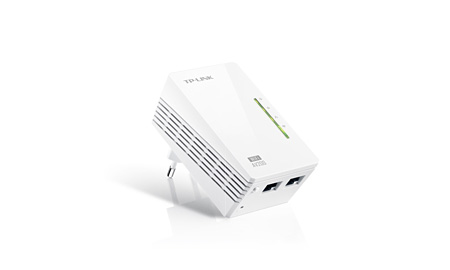

TP-LINK - LA-TP-WPA2220



TP LINK 200MBPS WIRELESS-N POWERLINE AD

Description

TP-Link's TL-WPA2220 extends your Internet connection to every room of the house through your home's existing electrical circuitry. The TL-WPA2220 features a Wi-Fi Clone Button enabling Super Range Extension.


Specification

TP-Link AV200 Powerline Adapter

Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
HomePlug AV standard providing up to 200Mbps high speed data transmission over a home's existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming

Specification:
Hardware features:
Standardsand Protocols: HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n
Interface: 2*10/100Mbps Ethernet Port
Plug Type: EU, UK, US, AR
Button: Pair, Reset, Wi-Fi/Wi-Fi Clone
LED Indicator: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
Dimensions ( W x D x H ): 3.7 x 2.1 x 1.6 in. (94×54×40mm)
Power Consumption:
Maximum: 5.0W (220V/50Hz)
Typical: 5.0W (220V/50Hz)
Standby: 2.5W (220V/50Hz)
Range: 300 Meters over electrical circuit

Wireless features:
Frequency: 2.4-2.4835GHz
Signal Rate:
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity:
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power:
CE:<20dBm(2.4GHz)
FCC:<30dBm
Wireless Functions: EnableDisableWireless Radio,WMM, Wireless Statistics
Wireless Security: 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

Software Features:
Modulation Technology: OFDM (PLC)
Encryption:
Powerline Security: 128-bit AES
Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption

Others:
Certification: CE, FCC, RoHS
PackageContents:
Powerline Ethernet Adapter TL-WPA2220
6.5 ft. (2 m) Ethernet cable (RJ45)
Resource CD
QuickInstallation Guide
System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux

Environment:
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
