Specification
WEB LINK:

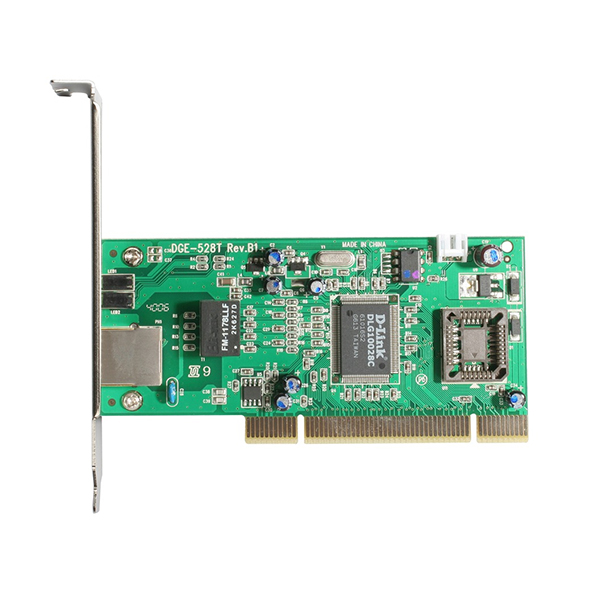

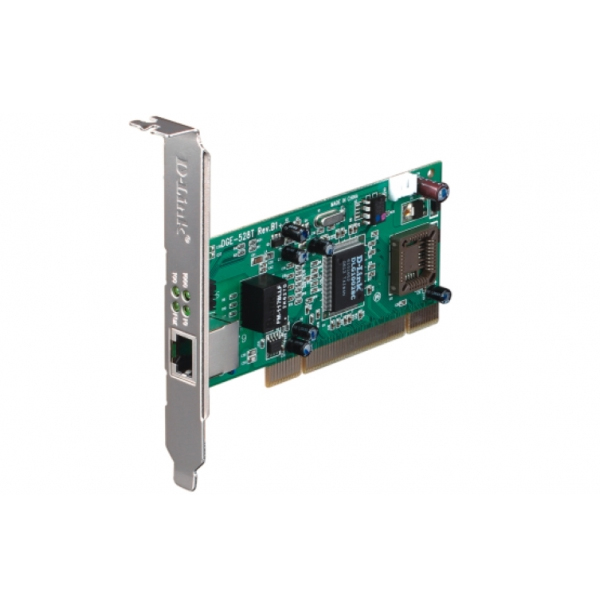

D-Link DGE528T 10/100/1000Mbps PCI Gigabit Ethernet Adapter With Auto-Negotiation, PCI Interface And ACPI 2.0 WOL Power Management
Features:
-10/100/1000 Mbps
-Auto-Negotiation
-PCI Interface
-Plug-and-Play
Advanced Standards Based Enterprise Features:
-IEEE 802.1p Priority Tagging
-IEEE 802.1Q VLAN Tagging
-IEEE 802.3x Flow Control
-Jumbo Frame Support (up to 7K bytes)
-ACPI 2.0 WOL Power Management
Technical Specifications:
Standards:
-IEEE 802.3, 802.3u, 802.3ab
-ANSI/IEEE 802.3 NWay auto-negotiation
-IEEE 802.3x Flow Control
-PCI local bus 2.3
-Universal Bus Support 3.3V/5V
-Topology: Star
Interface:
-PCI
-Half-height card suitable for low-profile cases
Data Transfer Rate:
-Gigabit Ethernet: Up to 2000Mbps full duplex
Fast Ethernet:
-100Mbps full duplex
-200Mbps full duplex
Ethernet:
-10Mbps half duplex
-20Mbps full duplex
Supported Functions:
-7KB Jumbo Frames
-IEEE 802.1p Priority Queues
-IEEE 802.1Q VLAN Tagging
-Wake on LAN
-Diagnostics Utility
OS Support:
-Windows XP/Vista/7/8/8.1/10
-Windows Server 2000/2003/2008/2013
-Linux for kernel 2.4/2.6/3.16
-Free BSD
-NDIS 2 for DOS
-Novell client for DOS
-Novell client for server 5.x/6.x
-Mac OS X 10.2/10.3/10.4
Diagnostic LEDs:
-10/100/1000 Link
-10/100/1000 Activity
-Weight: 47g
-Dimensions: (L)12.1 x (W)11.5 x (H)2cm
What's in the box:
-1x DL PCI GLAN Adapter
