Specification

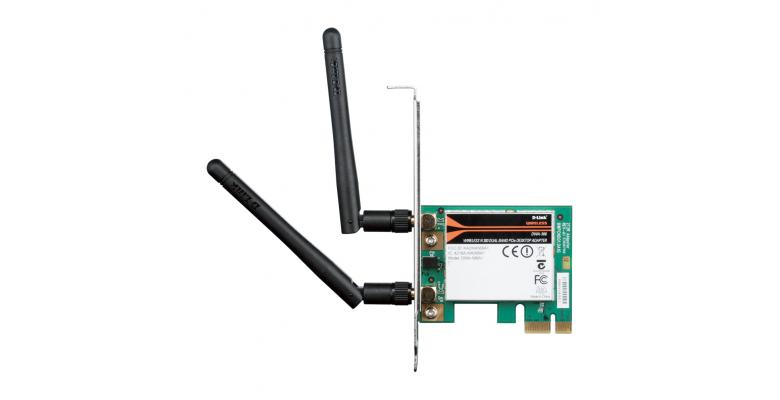

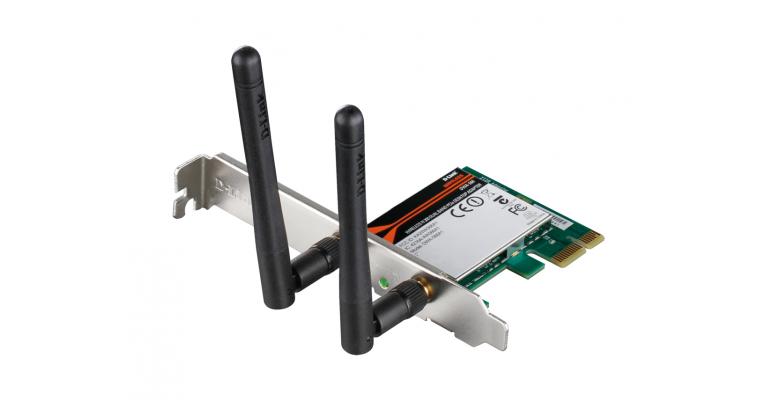

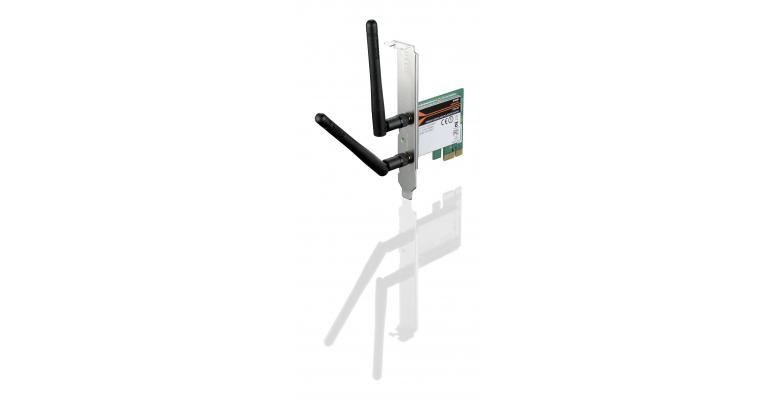

D-Link N300 Wireless Dual Band PCI-e Adapter
Features:
Maximizes the speed and range of your wireless signal to significantly outperform Wireless G devices
The DWA-566 fits into any standard PCI Express slots - x1/4/8/16
Powered by Wireless N technology and uses two external antennas to provide superior wireless reception in your home or office
Designed for use in larger homes and offices, or for users running multiple bandwidth-intensive applications
Enables you to simultaneously make or receive Internet phone calls (VoIP), surf the Web, transfer files, and stream HD media when connected
Supports WPA and WPA2 encryption that allow you to connect securely to a wireless network
The dual band N technology in the DWA-566 supports selectable 2.4GHz/5GHz wireless signals
The DWA-566 is backward compatible to 802.11g - can be used in existing 802.11g networks
Standards:
IEEE 802.11n
IEEE 802.11g
IEEE 802.11a
Interface: 1 x PCI Express (PCIe)
Security: Wi-Fi Protected Access (WPA®, WPA2®)
LED: Activity
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: 10% to 90% Non-condensing
Certifications:
FCC Class B
IC Class B
Dimensions (WxDxH):
Item: 2.57 x 2.17 x 0.06" (65.3mm x 55mm x 1.5mm)
Weight:
Item: 0.18 lbs ( 82 grams)
