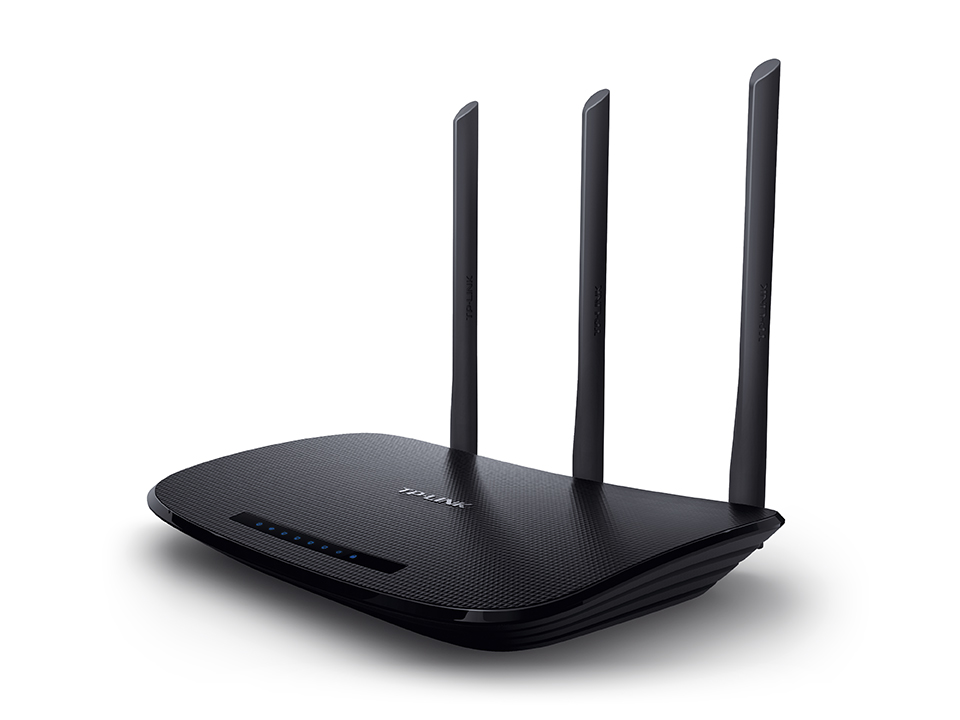

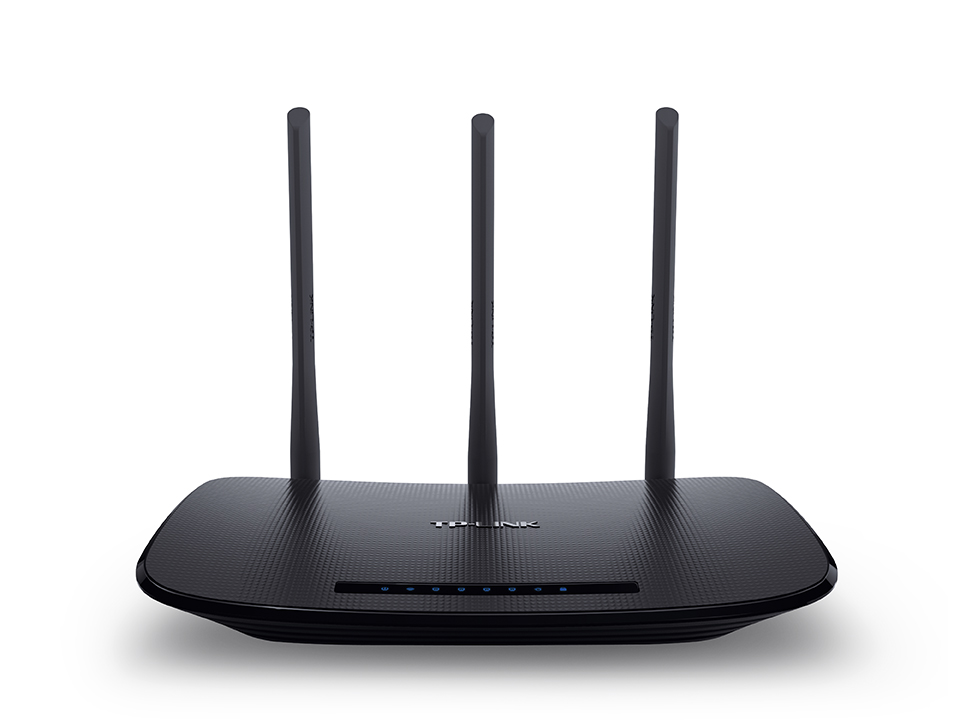

TP-LINK - TL-WR940N



TP-LINK 450MBPS ADVANCED WIFI N 3T3R ROU

Description

450Mbps Wireless N Router TL-WR940N is a combined wired/wireless network connection device designed specifically for small business & home office networking requirements.WPS button on the sleek & fashionable exterior ensures WPA2 encryptions.


Specification

TP-LINK 450Mbps Wireless N Router

Features:
450Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
Three antennas increase the wireless robustness and stability
Easy wireless security encryption at a push of WPS button
IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
**450Mbps wireless speed is only for TL-WR940N V3 while the earlier version is 300Mbps**

Specifications:
Hardware Features:

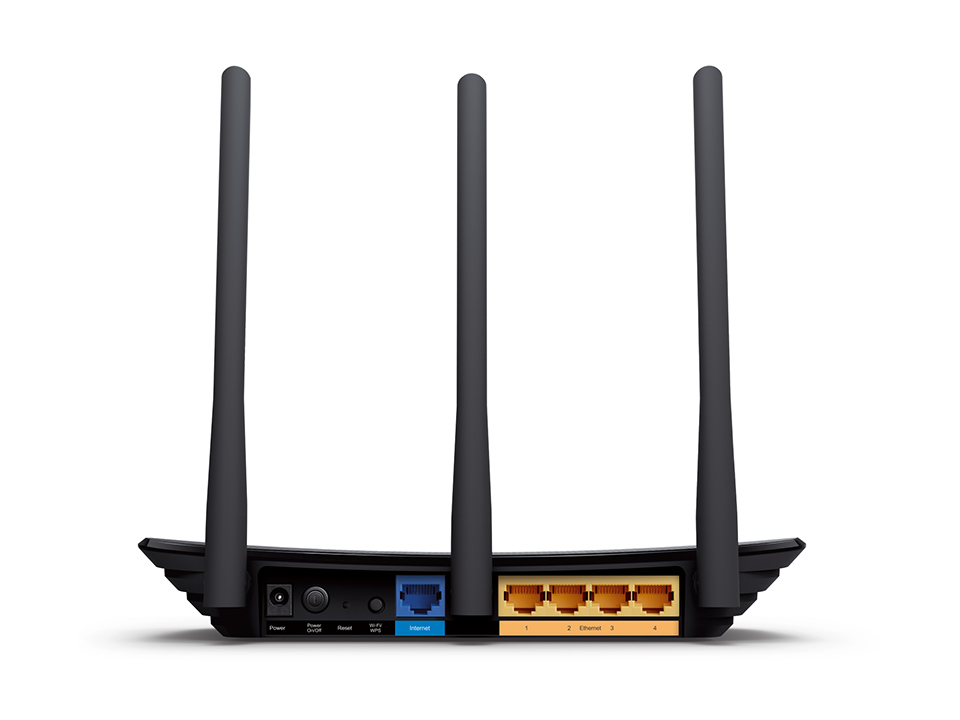

Interface: 4 10/100Mbps LAN Ports, 1 10/100Mbps WAN Port
Button: Wireless On/Off Button, WPS/Reset Button, Power On/Off Button
External Power Supply: 12VDC / 1A
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions: 230(W) x 144(D) x 35(H) mm
Antenna: 3*5dBi Fixed Omni Directional Antenna

Wireless Features:
Frequency: 2.4-2.4835GHz
Signal Rate: 11n: Up to 450Mbps, 11g: Up to 54Mbps, 11b: Up to 11Mbps (dynamic)
Transmit Power: CE: <20dBm(2.4GHz), FCC: <30dBm
Wireless Modes: Router Mode, Range Extender (for V5 and later), Access Point Mode (For V5 & later)
Wireless Functions: Enable/Disable Wireless radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security: 64/128/152bit WEP/WPA/WPA2, WPA-PSK/WPA2-PSK

Reception Sensitivity:
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER

Software Features:
Quality of Service: WMM, Bandwidth Control
WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)L2TP(Dual Access)/BigPond
Management: Access Control, Local Management, Remote Management
DHCP: Server, Client, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, Comexe, NO-IP
VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security: DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter, IP and MAC Address Binding
Protocols: Support IPv4
Guest Network: 2.4GHz Guest Network x1

Others:
Certification: CE, FCC, RoHS
System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Operating Temperature: 0~40C (32~104F)
Storage Temperature: -40~70C (-40~158F)
Operating Humidity: 10~90% non-condensing
Storage Humidity: 5~90% non-condensing
