Specification

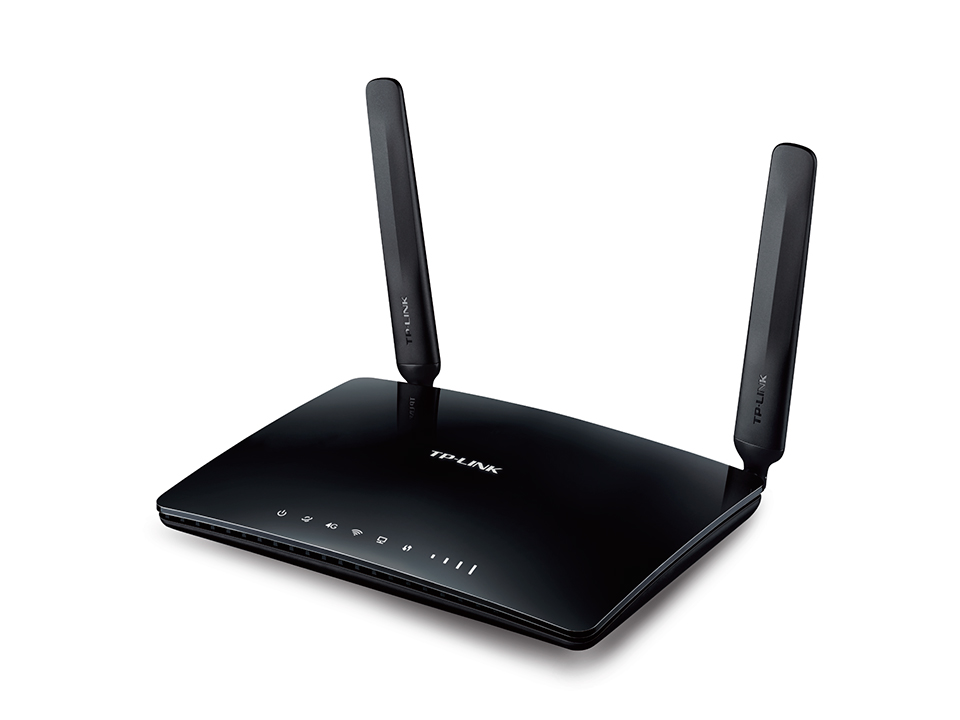

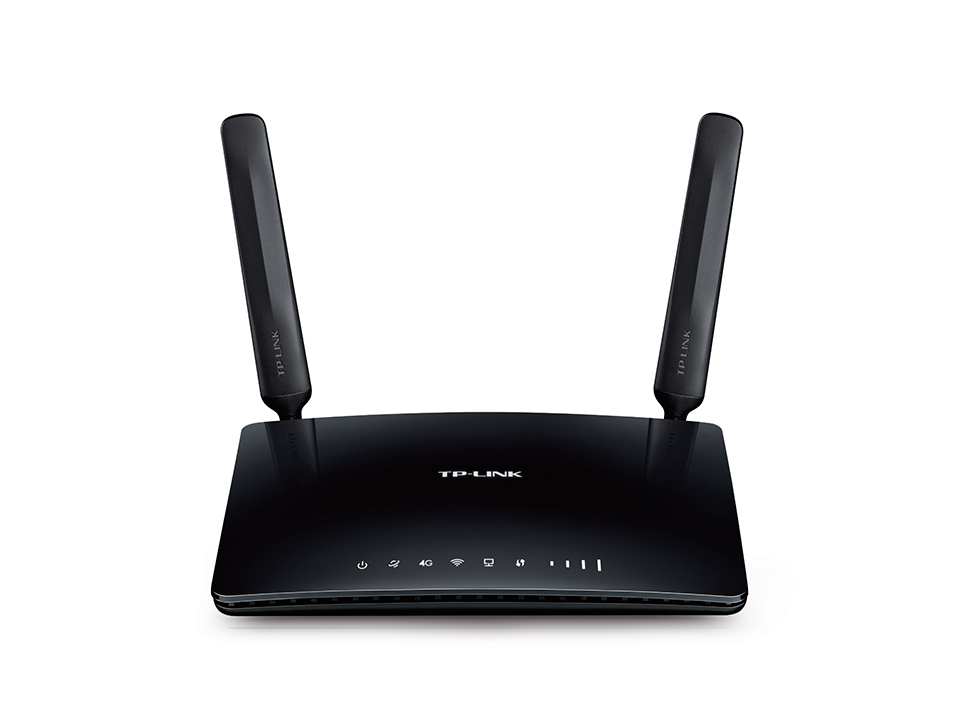

TP-LINK 300Mbps Wireless N 4G LTE Router
Share your 4G LTE network with multiple Wi-Fi devices and enjoy download speeds of up to 150Mbps
Wireless N speeds of up to 300Mbps
Integrated antennas provide stable wireless connections
Requires no configurations just insert a SIM card and turn it on to enjoy high speed internet access
LAN/WAN port provides options and flexibility, allowing you to choose your connection type
Specifications:
Hardware Features:

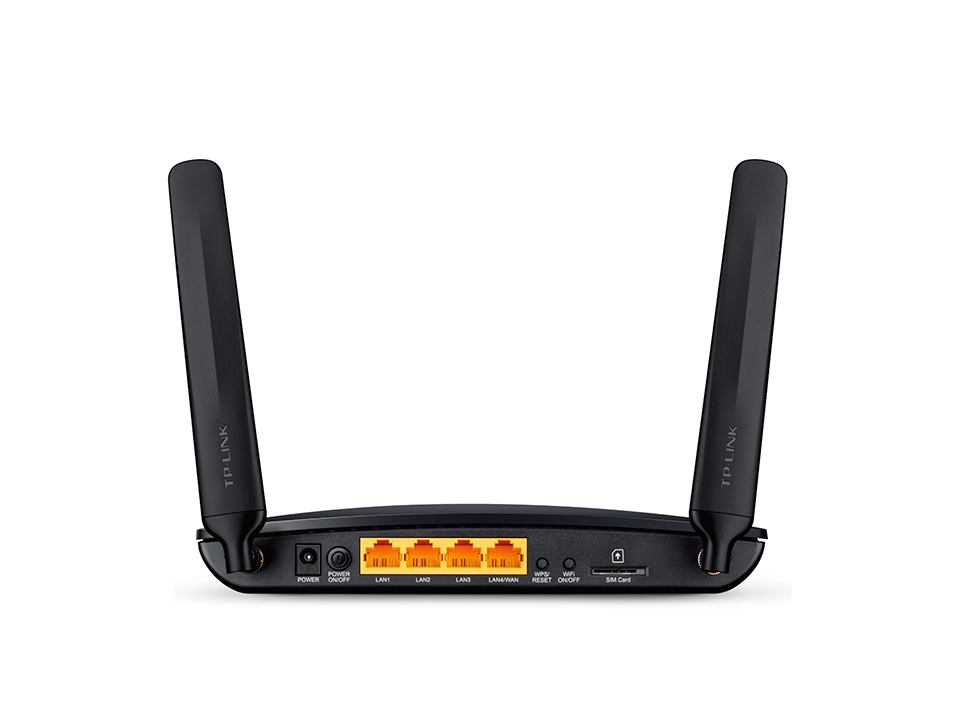

Interface: 3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 Micro SIM Card Slot
Button: WPS/Reset Button, Wireless On/Off Button, Power On/Off Button
External Power Supply (EU): 9V/0.85A
External Power Supply (APAC): 12V/1A
Dimensions: 202(W) x 145(D) x 34(H) mm
Antenna Type: 2 Internal 4G LTE Antennas, 2 Fixed External WiFi Antennas
Wireless Features:
Wireless Standards: IEEE 802.11b/g/n 2.4GHz
Frequency: 2.4GHz
Signal Rate: 300Mbps at 2.4GHz
Reception Sensitivity: 11g 54M: -74dBm, 11n HT20: -71dBm, 11n HT40: -67dBm
Transmit Power: CE: <20dBm (2.4GHz)
Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
Wireless Security: 64/128bit WEP, WPA/WPA2, WPA-PSK, WPA2-PSK encryption
Software Features:
Operating Modes: 3/4G Router, Wireless Router
Management: Access Control, Local Management, Remote Management reboot schedule
WAN Connection Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
DHCP: Server, Client, DHCP Client List, Address Reservation
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
VPN Pass-Through: VPN
VPN: PPTP VPN. IPSec VPN, OpenVPN
Access Control: Parental Control, Local Management Control
Firewall Security: DoS SPI Firewall, IP Address Filter/Domain Filter, IP and Mac Address Binding
Protocols: Supports IPv4 and IPv6
Guest Network: 2.4GHz guest network x 1
Others:
Certification: CE, RoHS
System Requirements: Microsoft Windows 98SE, NT, 2000, XPm Vista or Windows 7/8/8.1/10, Mac OS, NetWare, UNIX or Linux; Internet Explorer 1.1, Firefox 12.0, Chrome 20.0, safari 4.0 browsers or higher, other Java-enabled browsers MIcro SIM Card
Operating Temperature: 0~40C (32~104F)
Storage Temperature: -40~70C (-40~158F)
Storage Humidity: 5~90% non-condensing
Operating Humidity: 10~90% non-condensing
Package Contents:
300Mbps Wireless N 4G LTE Router, TL-MR6400
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
