Specification
WEB LINK: https://www.sonicinformed.co.za/catalogue/network-solutions-adsl-and-3-g-modem/td-w9960

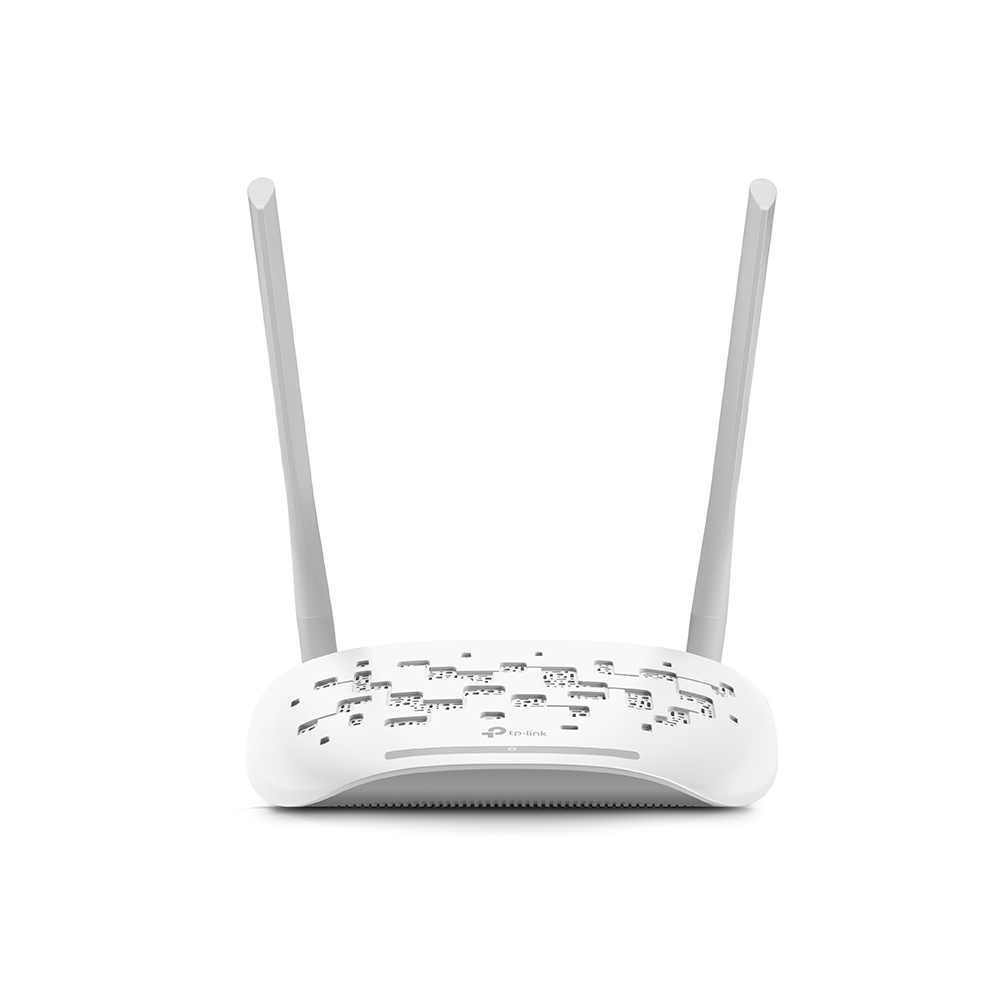

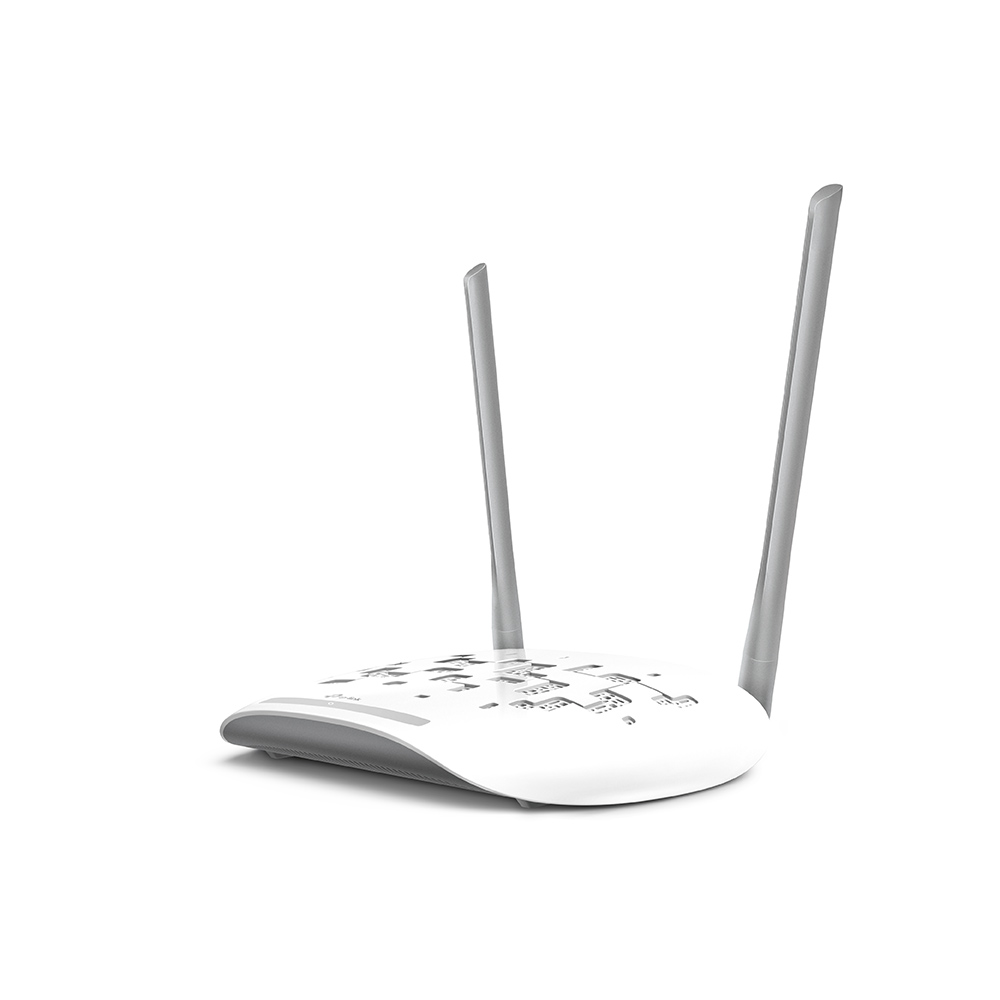

TP-LINK 300Mbps Wireless N VDSL/ADSL Modem Router With SuperFast Speed Up To 300Mbps And Built With 3X 100Mbps RJ45 LAN Ports + 1X 100Mbps RJ45 LAN /
WAN Port
Features:
-With DSL and LAN/WAN ports, TD-W9960 is fully compatible with the VDSL2/Adsl2+/ADSL2/ADSL standards and also works with fiber/cable access
-Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi
-Powerful external antennas provide far-reaching wireless coverage in every direction
-Set up in minutes with the powerful Tether app or intuitive web interface and manage the network from anywhere
Specifications:
-Hardware Features:

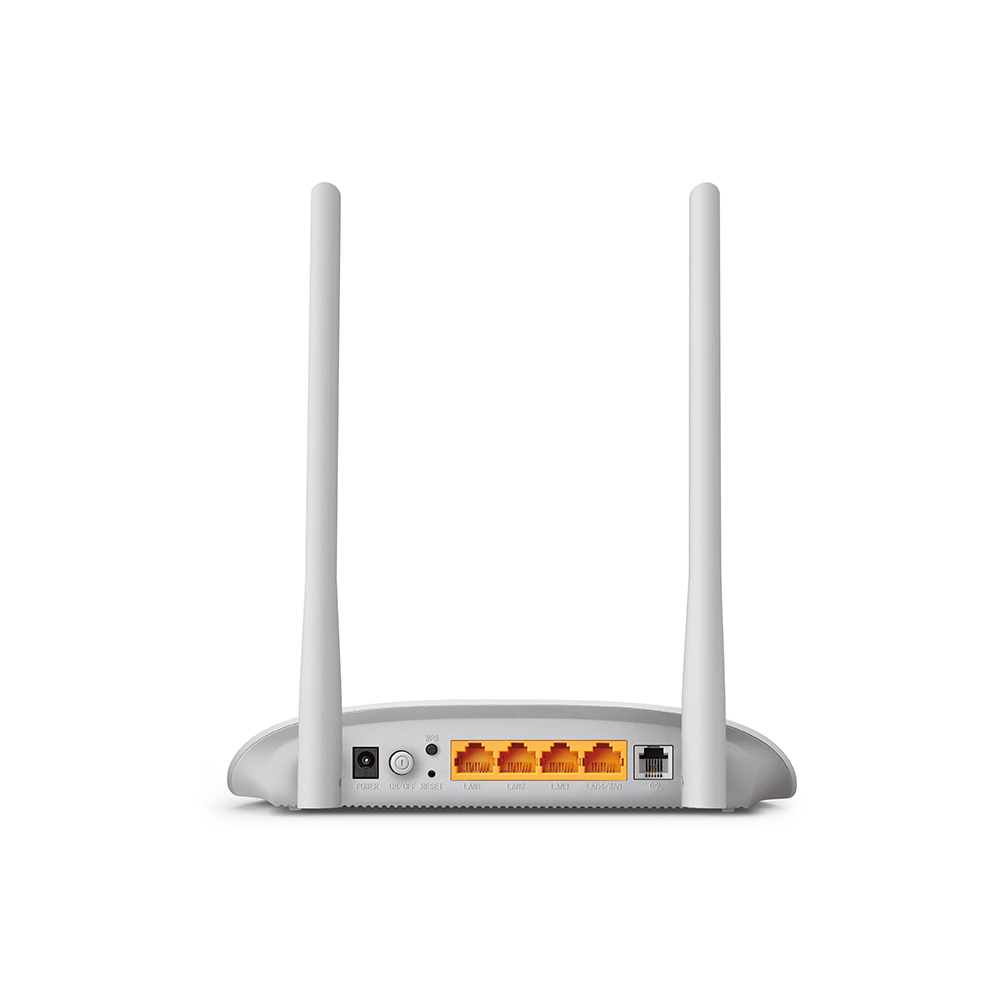

-Interface: 3 10/100Mbps RJ45 LAN Ports, 1 10/100Mbps RJ45 LAN/WAN Port, 1 RJ45 Port
-Button: WPS Button, RESET Button, Power ON/OFF Button
-External Power Supply: 9VDC/0.6A
-IEEE Standards: IEEE 802.3, 802.3u
-VDSL2 Standards: ITU-T G.993.2, G.993.5 (G.vector), G.998.4 (G.INP)
-Dimensions: 181.6(W) x 129.7(D) x 36.2(H) mm
-Antenna Type: Omni directional, Fixed
-Antenna Gain: 2 x 5dBi
Wireless Features:
-Wireless Standards: IEEE 802.1b, 802.11g, 802.11n
-Frequency: 2.400-2.4835GHz
-Transmit Power: <20dBm(EIRP)
-Wireless Security: 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryption, Wireless MAC Filtering
Software Features:
-Quality of Service: WMM, Bandwidth Control (IP QoS)
-Security: NAT Firewall, SPI Firewall, Denial of Service (DoS), SYN Flooding, Ping of Death, -Access Control, Service Filtering, IP and MAC Address Binding
-Operating Modes: VDSL/ADSL Modem Router, Wireless Router
-Management: Web Based Configuration (HTTP), Remote management, CWMP(TR-069), Web -Based Firmware Upgrade, Diagnostic Tools
-Port Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
-VPN Pass-Through: IPSec VPN
-Protocols: Supports IPv4 and IPv6
Others:
-Certification: CE, RoHS
-System Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/8.1/10, Mac OS, NetWare, UNIX or Linux. Internet Explorer 1.1, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
-Operating Temperature: 0~40C (32~104F)
-Storage Temperature: -40~70C (-40~158F)
-Operating Humidity: 10~90% non-condensing
-Storage Humidity: 5~90% non-condensing
What's in the box:
-1x TPL 4Port WiFi VDSL/ASDSL Router
