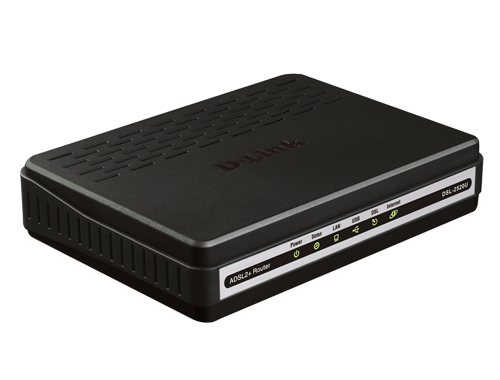

D-LINK - LA-DL-DSL2520U



D-LINK 1XRJ11 ADSL PORT+1X RJ45 10/100

Description

D-LINK DSL2520U, Latest ADSL2+ standard provides Internet transmission of up to 24 Mbps downstream, up to 2 Mbps upstream, Built-in ADSL modem, Ethernet and USB ports, QoS and Firewall protection, all in one single palm-sized box, simple installation


Specification

D-Link 1Port ADSL 10/100Mbps Router

Latest ADSL2+ standard provides Internet transmission of up to 24 Mbps downstream,up to 2 Mbps upstream
Built-in ADSL modem, Ethernet and USB ports, QoS and Firewall protection, all in one single palm-sized box
Works with all major Internet Service Providers, simple installation

Specifications:
Device Interfaces:
RJ11 ADSL port
RJ45 Ethernet LAN port
Factory reset button
USB1.1/2.0 device port

ADSL Standard:
Full ADSL2+/2/1 standards
Discrete Multi-Tone (DMT)
ANSI T1.413 Issue 2
Annex A,I,J,L,M
ITU G.992.1 (G.dmt)
ITU G.992.2 (G.lite)
ITU G.992.3 ADSL2 (G.dmt.bis)
ITU G.992.5 (G.dmt.bisplus )

ATM Specifications:
Support AAL5
Support 8 Permanent Virtual Circuits (PVCs)
UBR, CBR, rt-VBR, nrt-VBR
ITU-T I.610 OAM Principles& Functions (include F4/F5)

Basic Protocols:
Multiple protocol encapsulation over AAL5:
Support Logical Link Control (LLC) encapsulation
Support VC-based multiplexing
Support Bridged and Routing
PPP over AAL5:
Support LLC encapsulation
Support PPP over Ethernet Pass through
Support PPP over Ethernet
Classical IP over ATM

Bridge Function:
Transparent, learning bridge with spanning tree support
Routing Function:
IPv4, TCP, UDP, ICMP, ARP, RARP
Proxy-ARP
Static Routing
DHCP Server/Client
IGMP v1, v2 Proxy
Dynamic DNS

Security:
Network Address Translator (NAT)
PPP with PAP/CHAP
Raw/IP Filtering
SPI
L2TP/PPTP Pass Through
VPN: IPSec Pass Through
DoS (UDP, TCP), Detection of Known Attacks
Detect port scan attack
ID/Password Authentication
