Specification

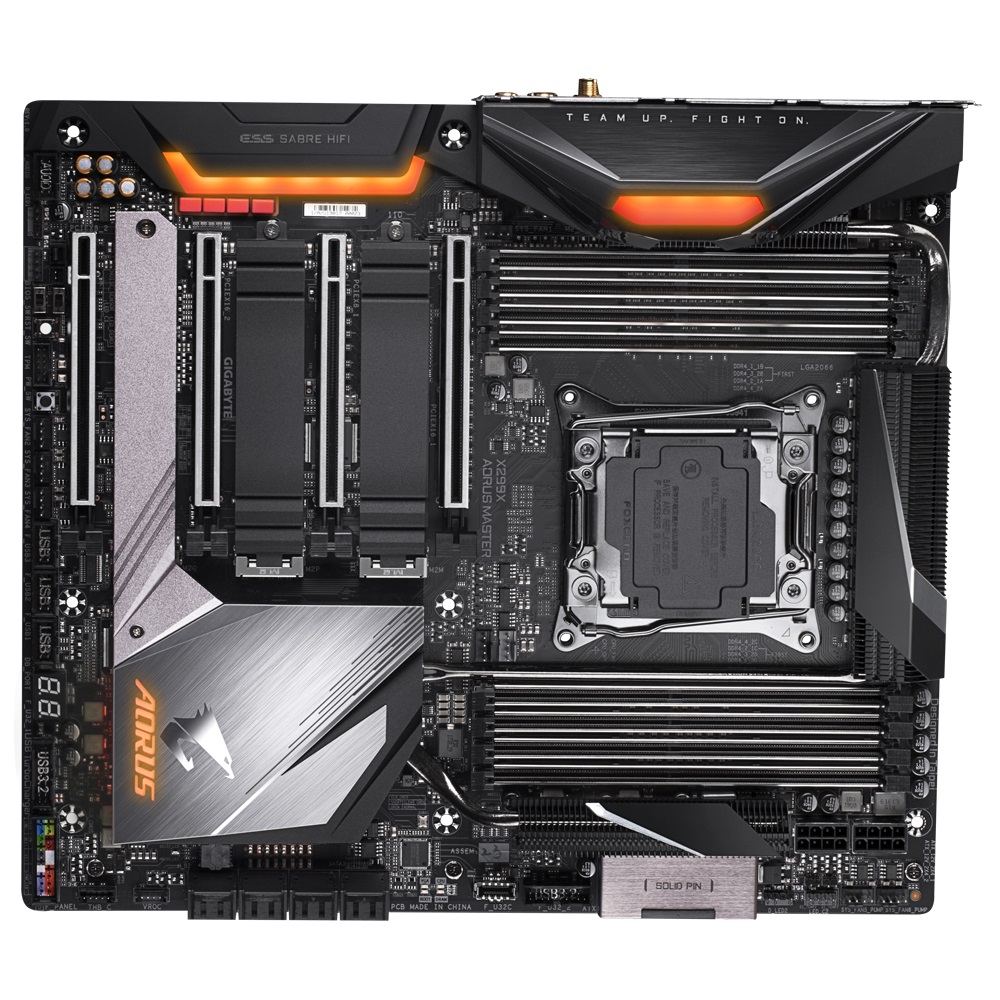

GIGABYTE X299 AORUS LGA2066 GLAN WIFI+BT DDR4 E-ATX
Intel X299 AORUS Motherboard with 12 Phases IR Digital VRM, Advanced Thermal Solution with Triple Fins-Array and Heatpipes, Intel WiFi 6 802.11ax, ESS SABRE HiFi 9218 DAC, AQUANTIA 5GbE LAN, Q-Flash for Easier BIOS Update.
Features:
-Intel Optane Memory Ready
-Front USB 3.2 Gen2 Type-C Header
-Supports 4 Way Dual Wide PCIe Slots
-12 Phases IR Digital VRM Solution with 70A Power Stag
Specifications:
-Chipset: Intel X299 Express Chipset
-I/O Controller: iTE I/O Controller Chip
-Operating System: Support for Windows 10 64-bit
-Form Factor: E-ATX Form Factor
CPU:
-Support for Intel Core i7-7800X and above X series processors/Intel® Core i9 X series processors in the LGA2066 package
-L3 cache varies with CPU
Memory:
Intel Core X series 48-lane processors:
-8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
-Support for DDR4 4333(O.C.)/4266(O.C.)/4133(O.C.) /4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3666(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.) /3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2666/2400/2133 MHz memory modules
Intel Core X series 44-lane/28-lane processors:
-8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory
-Support for DDR4 4200(O.C.)/4133(O.C.)/4000(O.C.) /3866(O.C.)/3800(O.C.)/3733(O.C.)/3666(O.C.)/ 3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.) /3200(O.C.)/3000(O.C.)/2666/2400/2133 MHz memory module
-4 channel memory architecture
-Support for non-ECC Un-buffered DIMM memory modules
-Support for Extreme Memory Profile (XMP) memory modules
Audio:
-Realtek ALC1220-VB codec
-ESS SABRE9218 DAC chip
-High Definition Audio
-2/4/5.1/7.1-channel
-Support for S/PDIF Out
Wireless Communication Module:
-Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
-BLUETOOTH 5.0
-Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots:
Intel Core X series 48-lane processors:
-2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
-2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
Intel Core X series 44-lane processors:
-2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
-1 x PCI Express x16 slot, running at x8 (PCIEX8_1)
-1 x PCI Express x16 slot, running at x4 (PCIEX8_2)
Multi-Graphics Technology:
-Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies
-Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storgae Interface:
-8 x SATA 6Gb/s connectors
-Intel VROC Ready
CPU:
-1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
-1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
Chipset:
-1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P)
Intel Optane Memory Ready:
-Only Intel Core X series 48-lane processors support Intel Optane Memory.
Internal I/O Ports
-1 x 24-pin ATX main power connector
-2 x 8-pin ATX 12V power connectors
-1 x CPU fan header
-1 x water cooling CPU fan header
-4 x system fan headers
-2 x system fan/water cooling pump headers
-2 x addressable LED strip headers
-2 x RGB LED strip headers
-3 x M.2 Socket 3 connectors
-8 x SATA 6Gb/s connectors
-1 x Intel® VROC Upgrade Key header
-1 x front panel header
-1 x front panel audio header
-1 x USB Type-C™ port, with USB 3.2 Gen 2 support
-2 x USB 3.2 Gen 1 headers
-3 x USB 2.0/1.1 headers
-1 x noise detection header
-1 x Thunderbolt™ add-in card connector
-1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
-1 x power button
-1 x reset button
-2 x temperature sensor headers
-1 x Clear CMOS jumper
-2 x BIOS switches
Back Panel Connectors:
-1 x Q-Flash Plus button
-1 x Clear CMOS button
-1 x USB Type-C™ port, with USB 3.2 Gen 2 support
-1 x USB 3.2 Gen 2 Type-A port (red)
-6 x USB 3.2 Gen 1 ports
-2 x USB 2.0/1.1 ports
-2 x RJ-45 ports
-2 x SMA antenna connectors (2T2R)
-1 x optical S/PDIF Out connector
-5 x audio jacks
BIOS:
-2 x 128 Mbit flash
-Use of licensed AMI UEFI BIOS
-Support for Dual BIOS
-PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
