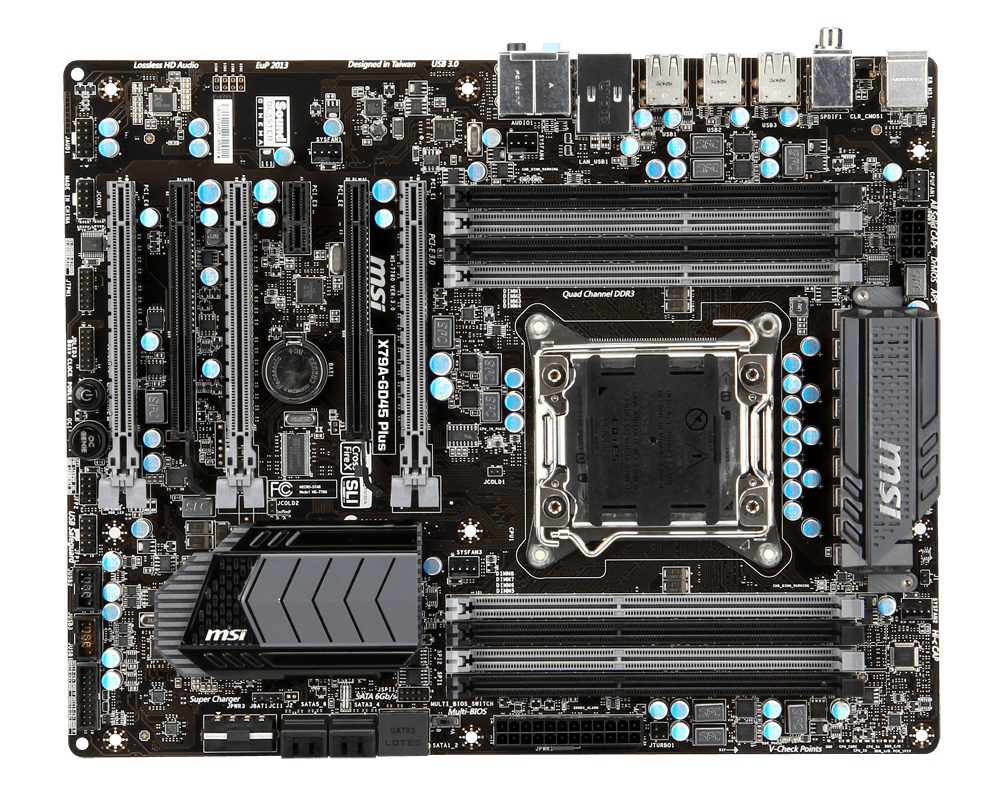

MSI X79A-GD45+ Motherboard

Military Class III: Top Quality & Stability
PCI Express Gen 3: World's 1st PCI Express Gen 3 Mainboard Brand
Click BIOS II: World 1st Unified UEFI & Software Graphical Interface
OC Genie II: Overclock in 1 Second
Supports USB 3.0 & SATA 6Gbps

Specification:
CPU: Supports Intel Socket 2011 Core i7 Processors
Chipset: Intel X79 Chipset

Main Memory:
Supports eight unbuffered DIMM of 1.5 Volt DDR3 1066/1333/1600/1800/2133/2400 (OC) DRAM, 128GB Max
Supports Quad channel mode, two DIMMs per channel

Slots:
3 PCI Express gen3 x16 slots
PCI_E1 & PCI_E4 support up to PCIE 3.0 x16 speed
PCI_E6 supports up to PCIE 3.0 x 8 speed
2 PCI Express gen2 x16 slots
PCI_E2 & PCI_E5 support up to PCIE 2.0 x1 speed
1 PCI Express 2.0 x1 slot

On-Board SATA:
SATAII controller integrated in Intel X79 chipset:
Up to 3Gbps transfer speed
Supports four SATAII ports (SATA3¬6) by X79
SATAIII controller integrated in Intel X79 chipset:
Up to 6Gbps transfer speed
Supports two SATAIII ports (SATA1¬2) by X79
RAID:
SATA1¬2 ports support Intel Rapid Storage Technology enterprise by Intel X79
SATA3¬6 ports support Intel Rapid Storage Technology enterprise by Intel X79

USB 3.0:
1 USB 3.0 onboard connector by NEC D720202
2 USB 3.0 rear I/O ports by NEC D720202

Audio:
Chipset integrated by Realtek ALC892
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec
Meet Microsoft Vista Premium spec

LAN: Support LAN 10/100/1000 Fast Ethernet by Intel 82579

Internal I/O Connectors:
ATX 24-pin power connector
8-pin ATX 12V power connector
CPU x1 / System x4 FAN connectors
Front panel audio connector
Front panel connector
1x chassis intrusion connector
2x USB 2.0 connectors
1x USB 3.0 connector
4x Serial ATAII connectors
2x Serial ATAIII connectors
1x Serial port connector
1x TPM Module connector
1x Clear CMOS jumper
1x Power button
1x OC Genie button
1x Multi BIOS switch
1x Voice Genie connector
1x MultiConnect Panel connector

Back Panel I/O Ports:
1x PS/2 Keyboard port
1x PS/2 Mouse port
1x Clear CMOS button
1x Coaxial SPDIF-out port
1x Optical SPDIF-out port
1x RJ45 LAN Jack
6x USB 2.0 ports
2x USB 3.0 ports
1x 6-in-1 audio jack

Dimension: 30.5 cm(L) x 24.4cm(W) ATX Form Factor
Mounting: 9 mounting holes
