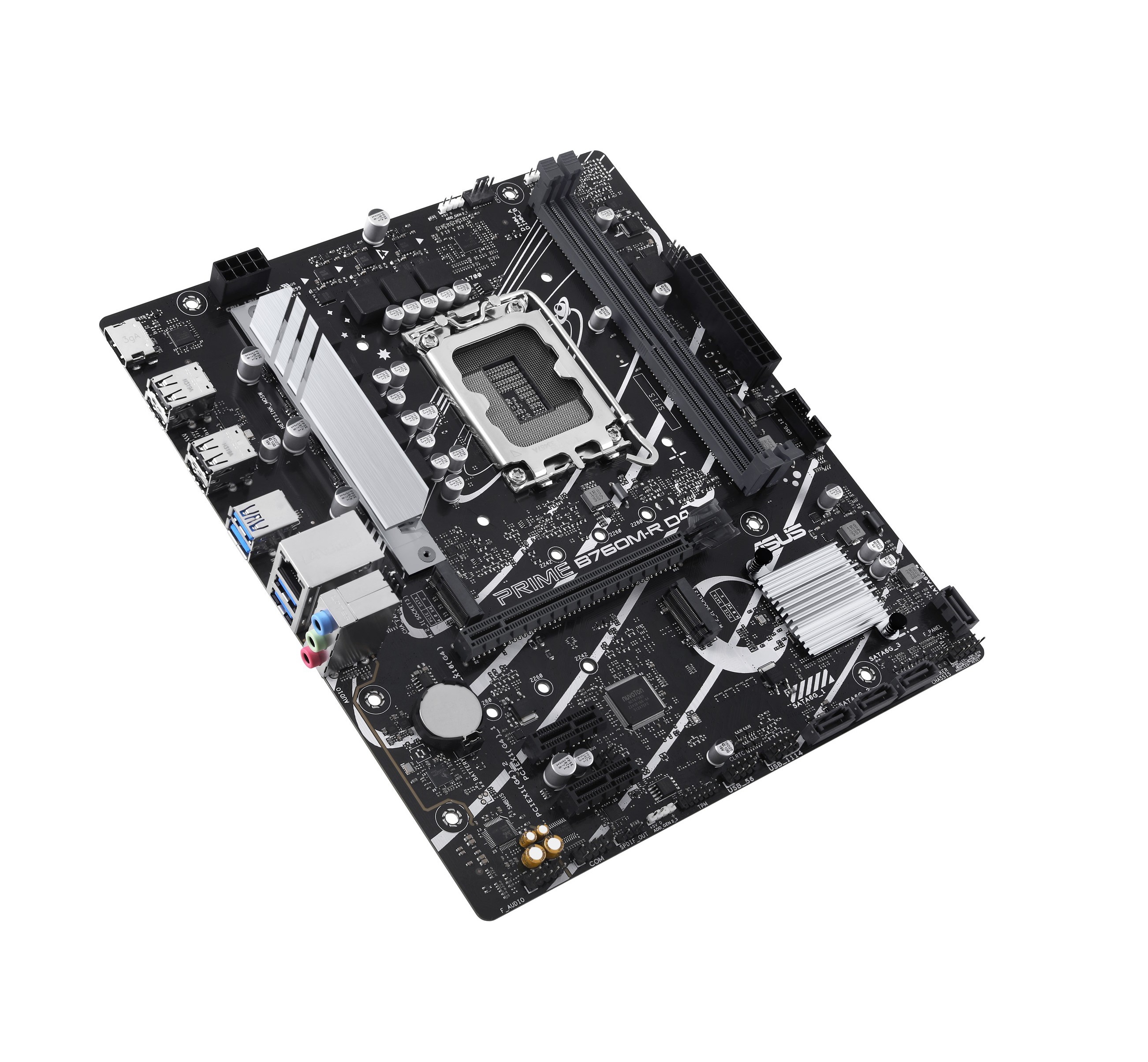

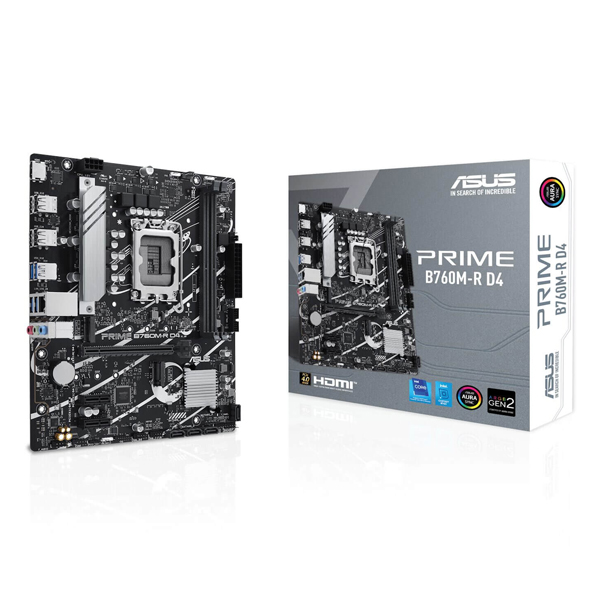

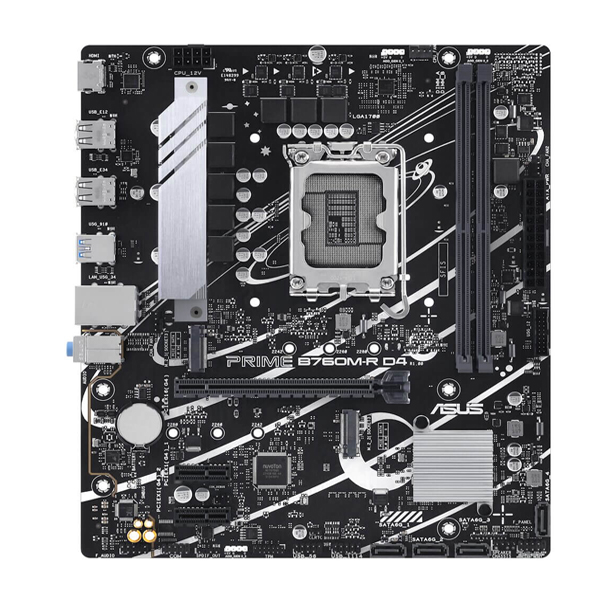

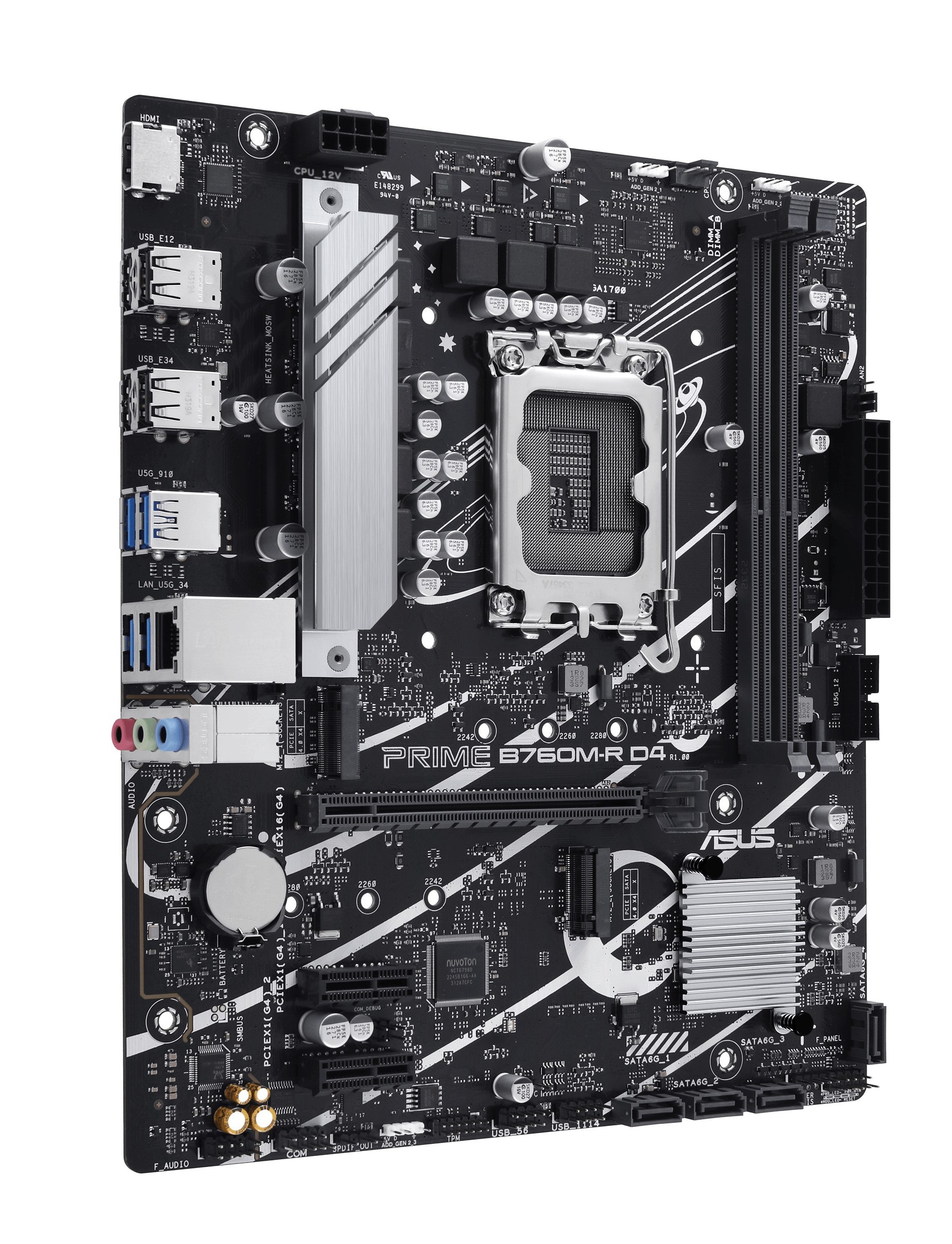

Asus PRIME B760M-R D4 Intel LGA1700 Micro-ATX Motherboard with PCIe 4.0, 2X PCIe 4.0 M.2 Slots, Realtek 2.5Gb Ethernet, HDMI, SATA 6Gbps, Front USB 5Gbps Ports

Specifications:
-Model: PRIME B760M-R D4
-CPU: Intel Socket LGA1700 for Intel Core 14/13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors, Support Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
-Chipset: Intel B760 Chipset

Memory:
-2x DIMM slots, Max. 64GB, DDR4 5300(OC)/5066/5000/4800/4600/4400/4266/4000/3733/3600/3466/3400/3333/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
-Dual channel memory architecture
-Supports Intel Extreme Memory Profile (XMP) memory module

Graphics:
-1x HDMI Port
-Supports 4K@60Hz as specified in HDMI 2.1

Expansion Slots:
-1x PCIe 4.0 x16 slot
-2x PCIe 4.0 x1 slots

Storage:
-M.2_1 slot (Key M), type 2242/2260/2280 (supported PCIe 4.0 x4 mode)
-M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
-4x SATA 6Gbps ports

Ethernet:
-1x Realtek 2.5Gb Ethernet

USB:
-4x USB-A 5Gbps ports
-4x USB-A 2.0 ports
-1x USB 5Gbps header supports 2 additional USB 5Gbps ports
-2x USB2.0 headers support 4 additional USB2.0 ports

Audio:
-Realtek 7.1 Surround Sound High Definition Audio CODEC
-Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
-Supports up to 24-Bit/192 kHz playback
-Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

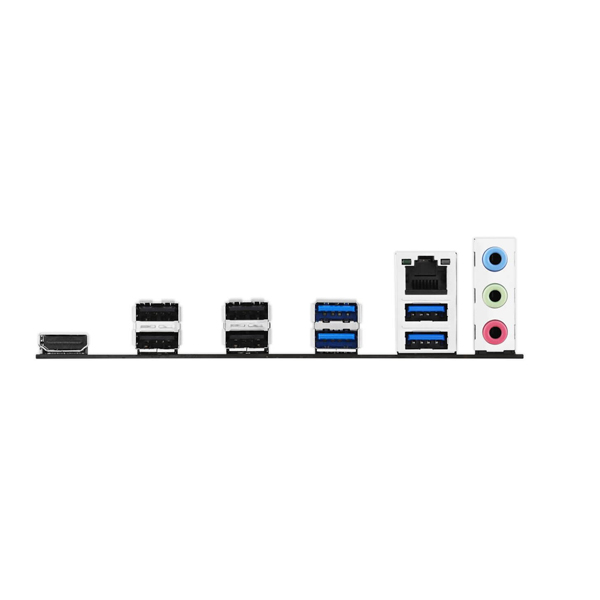

Back Panel I/O Ports:
-4x USB 5Gbps ports
-4x USB2.0 ports
-1x HDMI port
-1x Realtek 2.5Gb Ethernet port
-3x Audio jacks

Internal I/O Connectors:
-1x 4-pin CPU Fan header
-2x 4-pin Chassis Fan headers
-1x 24-pin Main Power connector
-1x 8-pin +12V Power connector
-2x M.2 slots (Key-M)
-4x SATA 6Gbps ports
-1x USB 5Gbps header supports 2 additional USB 5Gbps ports
-2x USB2.0 headers support 4 additional USB2.0 ports
-3x Addressable Gen 2 headers
-1x Clear CMOS header
-1x COM Port header
-1x Front panel audio header (F_AUDIO)
-1x S/PDIF out header
-1x Speaker header
-1x SPI TPM header (14-1pin)
-1x 10-1 pin System Panel header

-BIOS: 128Mb Flash ROM, UEFI AMI BIOS
-Manageability: WOL by PME, PXE
-OS: Windows 11, 10 64-bit
-Form Factor: micro-ATX Form Factor, 24.4cm x 21.1cm

-Weight: 900g
-Dimensions: (L)27 x (W)6 x (H)26cm

What's in the box:
-1x Asus Prime B760M LGA1700 MB
-2x SATA 6Gbps cables
-1x I/O shield
-2x M.2 anchors
-1x Quick start guide
