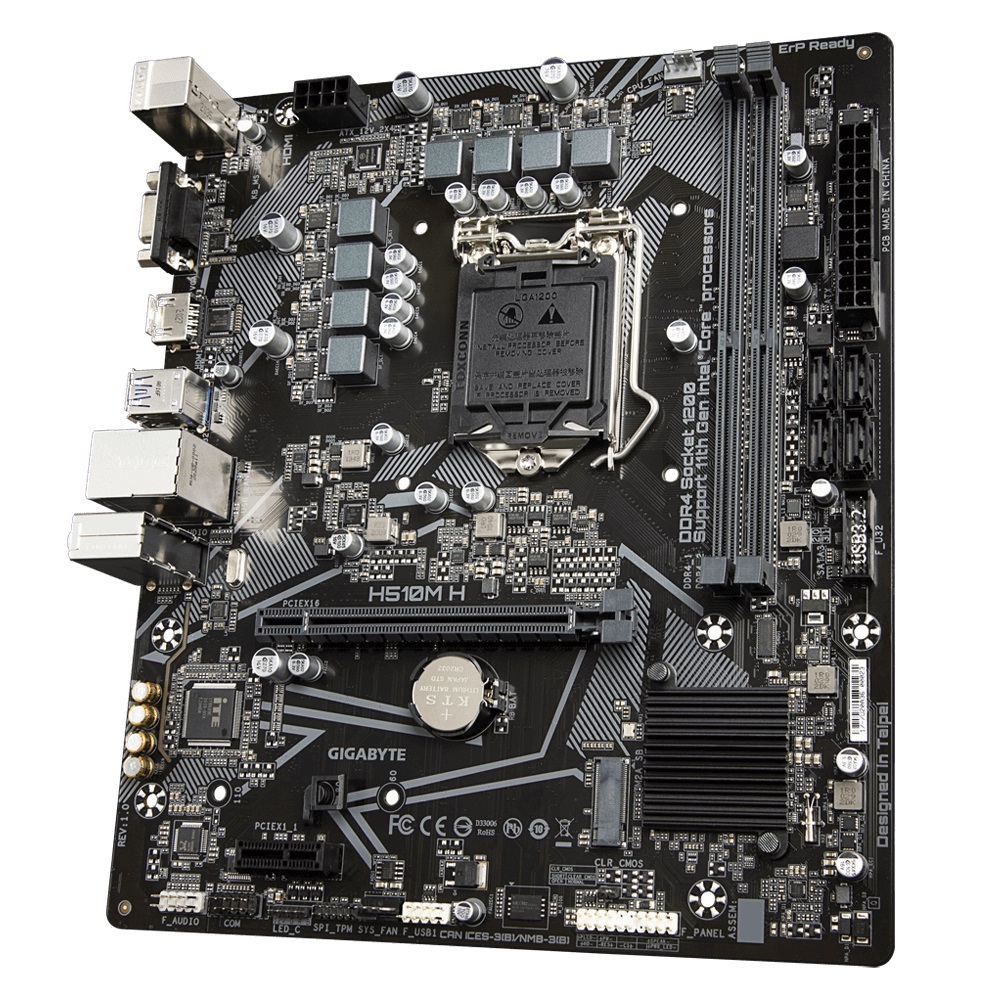

GIGABYTE H510M-H LGA 1200 DDR4 M.2 HDMI MATX

Intel H510M Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0* Design, Realtek 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan 6.

Features:
-Supports 11th and 10th Gen Intel Core Series Processors
-Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
-High Quality Audio Capacitors and Audio Noise
-Anti-Sulfur Resistors Design

Specifications:
-Chipset: Intel H510 Express Chipset
-LAN: Realtek GbE LAN chip (1 Gbit/100 Mbit)
-I/O Controller: iTE I/O Controller Chip
-Operating System: Support for Windows 10 64-bit
-Form Factor: Micro ATX Form Factor

CPU:
-11th Generation Intel Core i9/i7/i5
-10th Generation Inte Core i9/i7/i5/i3/Pentium/Celeron
-L3 cache varies with CPU

Memory:
11th Generation Intel Core i9/i7/i5 processors:
-DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel Core i9/i7 processors:
-DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel Core i5/i3/Pentium/Celeron processors:
-DDR4 2666/2400/2133 MHz memory modules

-Dual channel memory architecture
-Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
-Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
-Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics:
Integrated Graphics Processor-Intel HD Graphics support:
-1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
-1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

Audio:
-Realtek Audio CODEC
-High Definition Audio
-2/4/5.1/7.1-channel

Expansion Slots:
-1 x PCI Express x16 slot, running at x16 (PCIEX16)
-1 x PCI Express x1 slot (PCIEX1_1)

Storage:
-1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
-4 x SATA 6Gb/s connectors

USB:
-4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
-6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors:
-1 x 24-pin ATX main power connector
-1 x 8-pin ATX 12V power connector
-1 x CPU fan header
-1 x system fan header
-1 x RGB LED strip header
-1 x M.2 Socket 3 connector
-4 x SATA 6Gb/s connectors
-1 x front panel header
-1 x front panel audio header
-1 x USB 3.2 Gen 1 header
-1 x USB 2.0/1.1 header
-1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
-1 x serial port header
-1 x Clear CMOS jumper

Back Panel Connectors:
-1 x PS/2 keyboard/mouse port
-1 x D-Sub port
-1 x HDMI port
-2 x USB 3.2 Gen 1 ports
-4 x USB 2.0/1.1 ports
-1 x RJ-45 port
-3 x audio jacks
