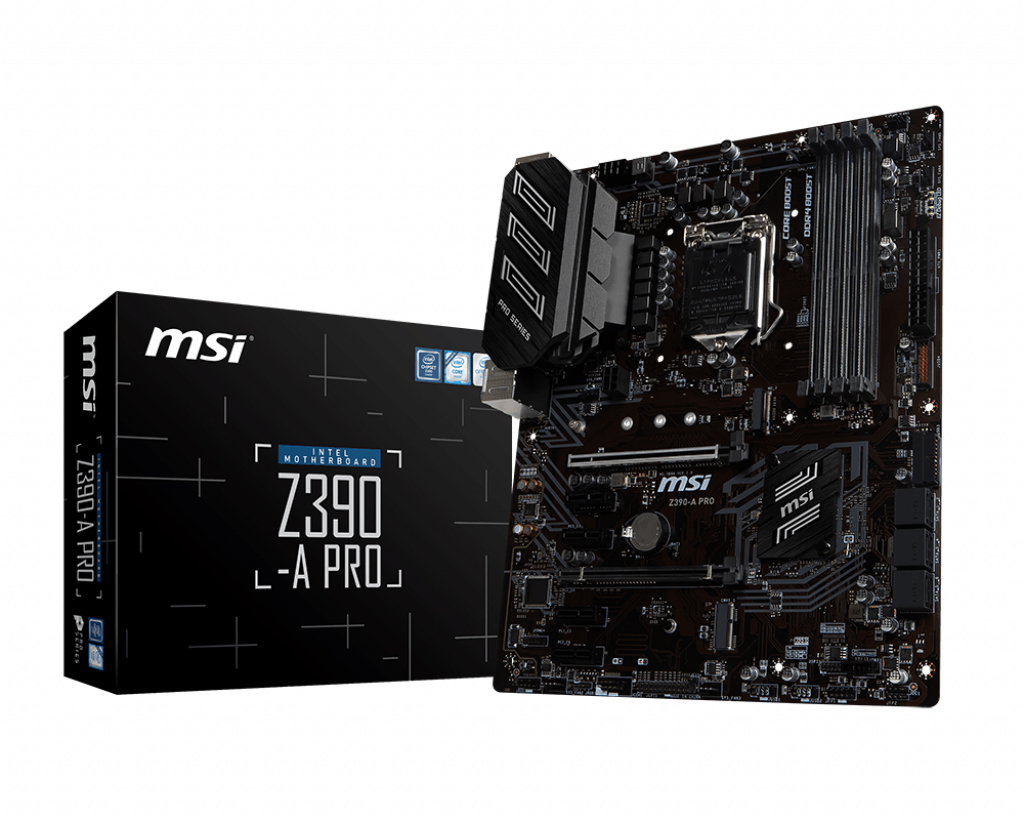

MSI Z390-A PRO Motherboard

Supports 9/8th Gen Intel Core/ Pentium/Celeron processors for LGA1151 socket
Supports DDR4 Memory, up to 4400(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Core Boost, 8+4 pin CPU power connector, Core Boost, DDR4 Boost
Audio Boost: reward your ears with studio grade sound quality
MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed
Premium network solution from Intel for professional and multimedia use
Delivers a secure, stable and fast network connection
With Steel armor PCI-E slots
Supports 2-Way AMD Crossfire
Powered by Intel USB3.1 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds

Specifications:
Processor: Supports 9/8th Gen Intel Core/ Pentium Gold/Celeron processors for LGA115 socket
Chipset: Intel Z390 Chipset

Memory:
4 x DDR4 memory slots, support up to 64GB
Supports DDR4 4400(OC)/4300/4266/4200/4133/4000/3866/3733/3600/3466/3400/3333/3300/3200/3000/2800/2666/2400/2133MHz
Supports Dual Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

Slots:
2 x PCIe 3.0 x16 slots
4 x PCIe 3.0 x1 slots
1 x M.2 slot with E key for Integrated Intel Wireless-AC(CNVi) module only

Onboard Graphics:
1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1 x Displayport, supports a maximum resolution of 4096x2304@60Hz

Multi-GPU: Supports 2-Way AMD CrossFire Technology

Storage:
6 x SATA 6Gbps ports
1 x M.2 slot (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gbps, 2245/2260/2280/22110 storage devices
Intel Optane Memory Ready

RAID: Supports RAID 0, 1, 5 and RAID 10 for SATA storage devices

USB:
2 x USB3.1 Gen2 (SuperSpeed USB 10GBps) ports (1 Type-A port and 1 Type-C port on the back panel)
6 x USB3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB3.1 connectors
6 x USB2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)

Audio: Realtek ALC892 Codec - 7.1Channel High Definition Audio
LAN: 1 x Intel I219-V Gigabit LAN controller

Internal Connectors:
1 x 24-pin ATX main power
1 x 8-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector
1 x 4-pin Water Pump connector
5 x 4-pin system fan connectors
1 x Front panel audio connector
6 x SATA 6Gbps connectors
2 x M.2 slots (1 M-Key slot, 1 E-Key slot)
2 x System panel connectors
1 x Chassis Intrusion connector
1 x 4-pin RGB LED connector
2 x USB3.1 Gen1 connectors (supports additional 4 USB3.1 Gen1 ports)
1 x Serial Port connector
1 x Clear CMOS jumper
1 x Parallel port connector
2 x USB2.0 connectors (supports additional 4 USB2.0 ports)
1 x 4-pin CPU fan connector
1 x TPM module connector
1 x thunderbolt Add-on card connector
1 x Front OC button connector

Dimensions: 30.5 x 24.4cm; ATX Form Factor
Mounting: 9 mounting holes
Operating System: Support for Windows 10 64bit
