Specification

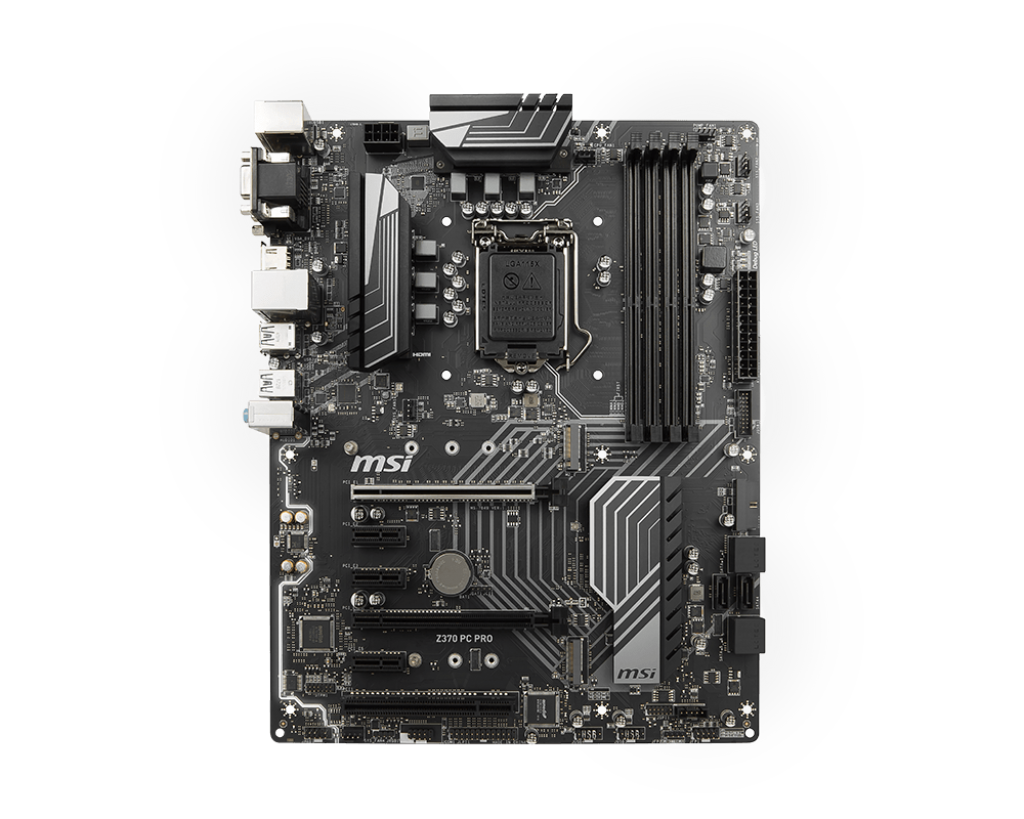

MSI Z370PC Pro Motherboard
Supports 8th Gen Intel Core/Pentium Celeron processors for lGA1151 socket
Supports DDR4 Memory, up to 4000+(OC) MHz
DDR4 Boost: Advanced technology provided by MSI OC lab to ensure maximum compatibility for overclocking performance
Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience
Mystic Light and Mystic Light Sync: Personalize your PC with 7 colors/5 effects controlled in one click with the Mystic Light APP or a mobile device
Multi-GPU: With Steel Armor PCI-E slots. Supports AMD 2-Way Crossfire
EX Debug LED: Easiest way to troubleshoot
Twin Turbo M.2: Delivering Speeds Up to 32Gbps, Intel Optane Memory Ready
Lightning USB: Double bandwidth, supports USB3.1 Gen2 Type A + Type C
PCI-E Steel Armor: Protecting VGA cards against bending and EMI
X-Boost: Great tool to boost your USB & Storage performance
Double ESD Protection: Double layer grounding motherboard mounting holes
Military Class 5, Guard-Pro: Latest evolution in high quality components for best protection and efficiency
Click BIOS 5: Award-winning BIOS with high resolution scalable font, favourites and search function
VR Ready: Best virtual reality game experience without latency, reduces motion sickness
Specifications:
CPU: Supports 8th Gen Intel Core processors, and Intel Pentium and Celeron processors for Socket LGA1151
Chipset: Intel Z370 Chipset
Main Memory:
4x DDR4 memory slots, support up to 64GB
Supports 4000+(OC)/3866/3733/3600/3466/3400/3333/3300/3200/3000/2800/2667/2400/2133 MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Slots:
2x PCie 3.0 x16 slots (supports x16/4 mode)
1x PCI slot
3x PCIe 3.0 x1 slots
Onboard Graphics:
1x HDMI port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
Multi-GPU: Supports 2-Way AMD CrossFire Technology
Storage:
6x SATA 6Gbps ports
2x M.2 slots (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gbps
Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card
M2_1 slot supports 2242/2260/2280/22110 storage devices
M2_2 slot supports 2242/2260/2280 storage devices
Supports Intel Optane Memory Ready for all M.2 slots
RAID:
Support RAID 0, 1,5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 storage devices
USB:
8x USB3.1 Gen1 (SuperSpeed USB) ports
6x USB2.0 (High-speed USB) ports
Audio:
Realtek ALC887 Codec
7.1Channel High Definition Audio
LAN: 1x Intel I219-V Gigabit LAN controller
Internal I/O Connectors:
1x 24pin ATX main power connector
1x 8pin ATX 12V power connector
6x SATA 6Gbps connectors
2x USB2.0 connectors (support additional 4 USB2.0 ports)
2x USb3.1 Gen1 connectors (support additional 4 USB3.1 Gen1 ports)
1x 4pin CPU fan connector
1x 4pin water pump fan connector
4x 4pin system fan connectors
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Serial port connector
1x Parallel port connector
1x Thunderbolt add-on card connector
1x RGB LED connector
1x Clear CMOS jumper
Back Panel I/O Ports:
1x PS/2 mouse & keyboard combo port
2x USB2.0 Type-A ports
1x VGA port
1x DVI-D port
1x HDMI port
1x LAN (RJ45) port
4x USB3.1 Gen1 Type-A ports
1x USB3.1 Gen2 Type-A port
1x USB3.1 Gen2 Type-C port
3x audio jacks
Dimension:
12"x9.6" (30.4x24.3cm)
ATX Form Factor
Mounting: 9 mounting holes
