Specification

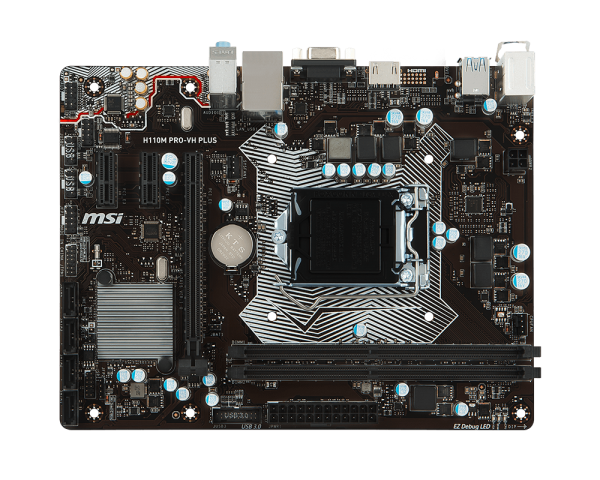

MSI H110M PRO-VH PLUS Motherboard
Supports 6th/7th Gen Intel Core/Pentium/Celeron processors for LGA 1151 socket
Supports DDR4-2133 Memory
DDR4 Boost: Give your DDR4 memory a performance boost
USB 3.1 Gen1 + SATA 6Gbps
VGA Armor: Reinforced Armor slot
Click BIOS: Secure and Reliable UEFI BIOS solution
Audio Boost: Reward your ears with studio grade sound quality
Military Class 4: Top Quality & Stability
Guard-Pro: Improved Protection and Power Efficiency
EZ Debug LED: Easiest way to troubleshoot
4K UHD Support: Ultra-high Definition Visual Experience
Intel SBB Support: Improves Productivity, Management and Security
WHQL CERTIFIED WINDOWS 10 READY
Specifcations:
CPU: Support 6th Gen Intel Core i3/5/7 processors, and Intel Pentium and Celeron processors for Socket LGA1151
Chipset: Intel H110 Chipset
Main Memory:
2x DDR4 memory slots, support up to 32GB
Supports DDR4 2133 MHz
Dual channel memoy architecture
Supports Non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Slots:
1x PCIe 3.0 x16 slot
2x PCIe 2.0 x1 slots
Onboard Graphics:
1x HDMI ports, support a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz
Onboard SATA:
Intel H110 Chipset
4x SATA 6Gbps ports
USB:
4x USB 3.1 ports
6x USB 2.0 ports
Audio:
Realtek ALC887 Codec
7.1-Channel High Definition Audio
LAN: 1x Realtek RTL811H Gigabit LAN controller
Back Panel I/O Ports:
1x PS/2 mouse/keyboard port
2x USb 2.0 ports
2x USB 3.1 Gen1 ports
1x HDMI port
1x VGA port
1x LAN (RJ45) port
3x audio jacks
Internal I/O Connectors:
1x 24-pin ATX main power connector
1x 4-pin ATX 12V power connector
4x SATA 6Gbps connectors
2x USB 2.0 connectors
1x USB 3.1 Gen1 connector
1x 4-pin CPU fan connector
1x 4-pin system fan connectors
1x Front panel audio connector
2x Front panel connectors
1x TPM module connector
1x Serial Port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
Dimensions: 8.9" x 6.8" (22.6cm x 17.3cm), Micro-ATX Form Factor
Mounting: 6 mounting holes
