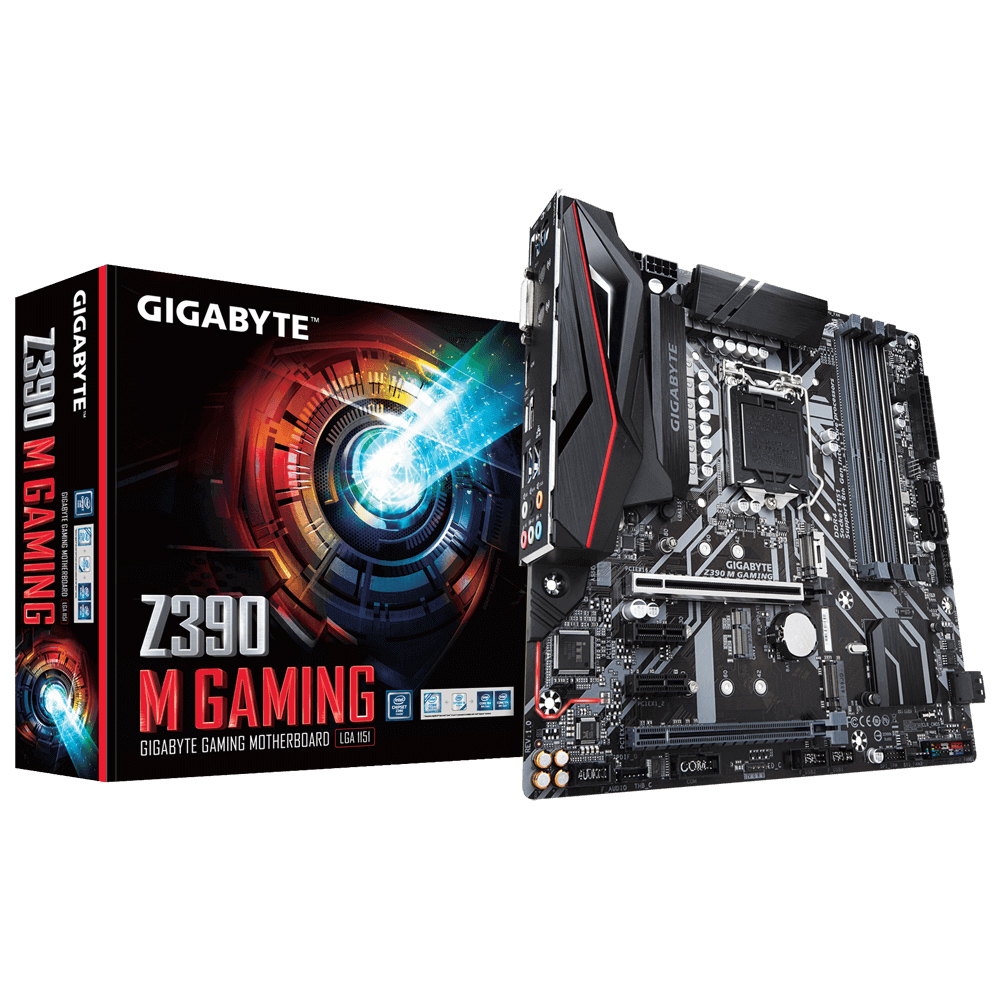

GIGABYTE - MB-GB-Z390M-GAMING



GIGABYTE Z390 M GAMING LGA1151 MATX MB

Description

Intel Z390 GAMING Motherboard with 10+2 Digital PWM Design, 2-Way CrossFire Multi-Graphics, USB3.1 Gen 2 Type-A+Type-C, Intel GbE LAN with cFosSpeed, Smart Fan 5, Dual M.2, Dual Armor with Ultra Durable Technology, CEC 2019.


Specification

GIGABYTE Z390 M Gaming Motherboard

Features:
Supports 9th and 8th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4
New 10+2 Phases Digital PWM Design
High Quality Audio Capacitors
Dual Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
Multi-Way Graphics Support with PCIe Armor and Ultra Durable Design
Intel Native USB3.1 Gen2 Type-A + Type-C
Intel GbE LAN with cFosSpeed Internet Accelerator Software
Intel Gigabit LAN with cFosSpeed
Ultra Durable 25KV ESD and 15KV Surge LAN Protection
Support RGB Lighting Effect in Full Colors
CEC 2019 Ready, Save Power With a Simple Click
Smart Fan 5 features Multiple Temperatures Sensors and Hybrid Fan Headers with FAN STOP
Lightning-Fast Intel Thunderbolt 3 AIC Support

Specifications:
Support for 9th and 8th Generation Intel Core i9/7/5/3 processors/Pentium/Celeron
L3 cache varies with CPU
Chipset: Intel Z390 Express Chipset

Memory:
4 x DDR4 DIMM sockets supporting up to 64GB of system memory
Dual channel memory architecture
Support for DDR4 4266(O.C.)/4133/4000/3866/3800/3733/3666/3600/3466/3400/3333/3300/3200/3000/2800/2666/2400/2133MHz memory modules
Supports for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics - Integrated Graphics Processor-Intel HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz
Support for HDMI 1.4 version and HDCP 2.2
Maximum shared memory of 1GB

Audio:
Realtek ALC892 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

LAN: Intel GbE LAN chip (10/100/1000 Mbit)

Expansion Slots:
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI Express x1 slots
1 x M.2 Socket 1 connector for an Intel CNVi (CNVI)

Storage Interface:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
6 x SATA 6Gbps connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready

Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

USB:
1 x USB Type-C port on the back panel, with USB3.1 Gen 2 support
1 x USB3.1 Gen 2 Type-A port (red) on the back panel
6 x USB3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x USB2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x RGB LED strip header
6 x SATA 6Gbps connectors
3 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB3.1 Gen 1 header
2 x USB2.0/1.1 headers
1 x Trusted Platform Module (SPI_TPM) header
1 x Thunderbolt add-in card connector
1 x serial port header
1 x Clear CMOS jumper

Back Panel Connectors:
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x HDMI port
1 x USB Type-C port, with USB3.1 Gen 2 support
1 x USB3.1 Gen 2 Type-A port (red)
4 x USB3.1 Gen 1 ports
1 x RJ-45 port
6 x audio jacks

I/O Controller: iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control

BIOS:
2 x 128Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System: Support for Windows 10 64bit
Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm

Box Contents:
GA-Z170X-Gaming 5 motherboard
Four SATA cables
Motherboard driver disk
I/O Shield
User's Manual
One 2-Way SLI bridge connector
Quick Installation Guide
One G Connector
