GIGABYTE - MB-GB-H310M-S2H2

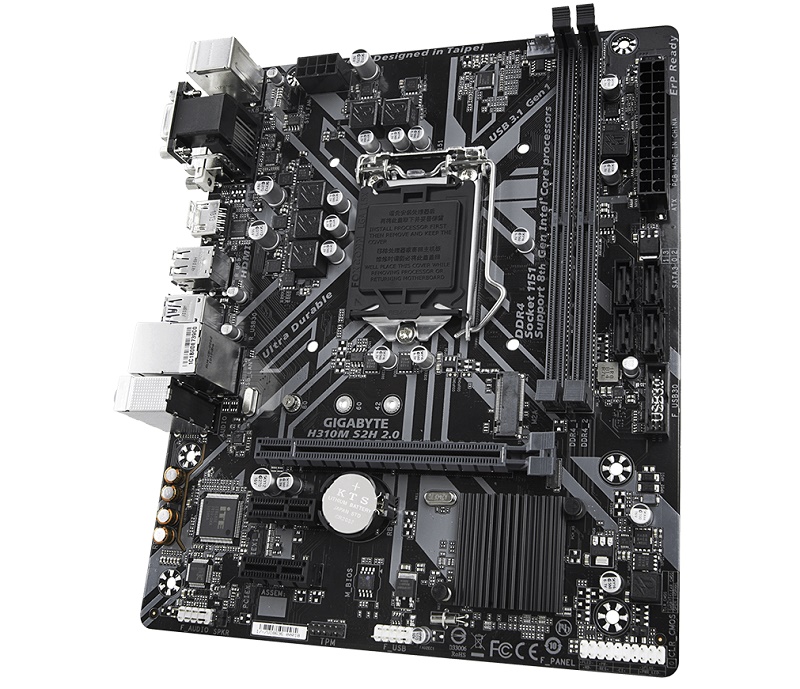

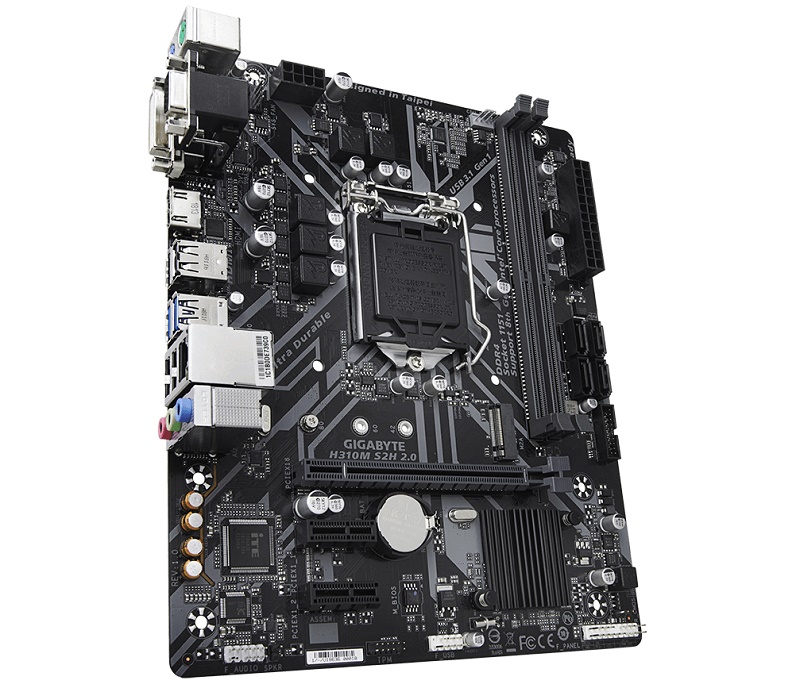

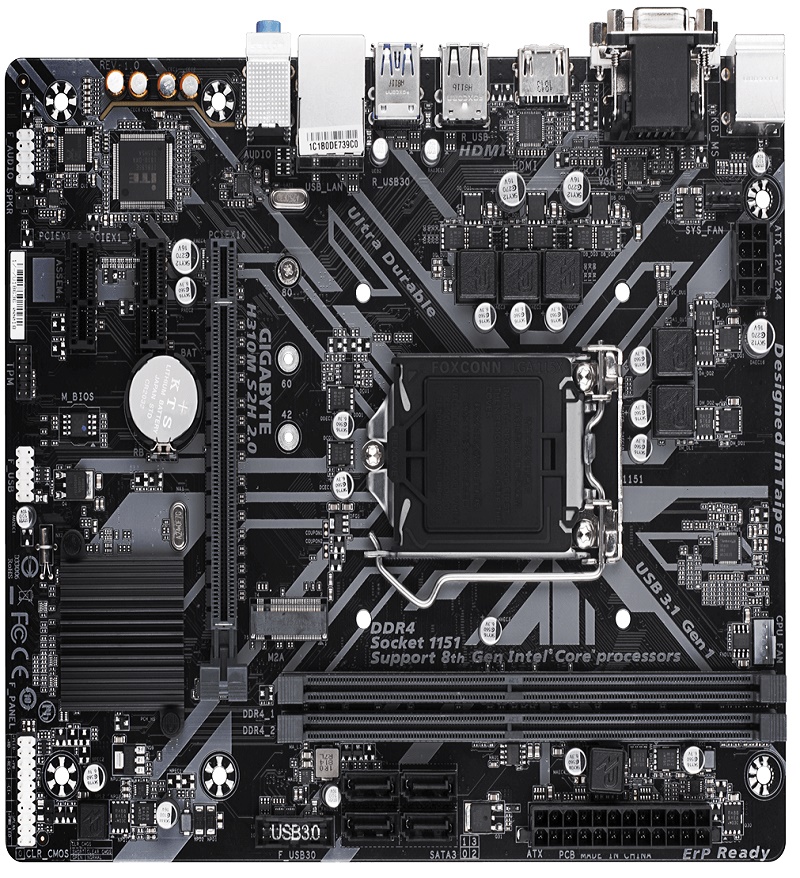

GIGABYTE H310M S2H LGA1151 2XDDR4 MATX

Description

Intel H310 Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen2 x2 M.2, HDMI 1.4, DVI-D, D-Sub Ports for Multiple Display, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready.


Specification

GIGABYTE H310M S2H MICRO ATX MOTHERBOARD

Features:
Supports 9th and 8th Gen Intel® Core Processors
Dual Channel Non-ECC Unbuffered DDR4
8-Channel HD Audio with High Quality Audio Capacitors
Ultra-Fast M.2 with PCIe Gen2 X2 & SATA interface
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
HDMI 1.4, DVI-D, D-Sub Ports for Multiple Display
CEC 2019 Ready, Save Power With a Simple Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
All new GIGABYTE APP Center, simple and easy use
Anti-Sulfur Resistors Design

Specifications:
CPU: Support for 9th/8th Generation Intel® Core i9/i7/5 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

Chipset: Intel® H310 Express Chipset

Memory:
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Maximum shared memory of 1 GB
Maximum support of 2 independent display at one time.

Audio:
Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots:
1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
4 x SATA 6Gb/s connectors

USB:
4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper

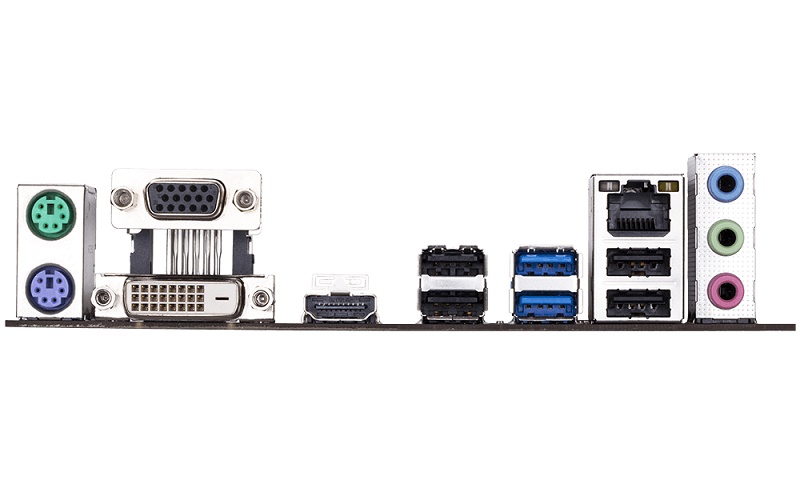

Back Panel Connectors:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Operating System: Support for Windows 10 64-bit
Form Factor: Micro ATX Form Factor; 22.6cm x 18.5cm
