Specification
GIGABYTE H310M-HD2 Motherboard
Supports 8th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4
8-Channel HD Audio with High Quality Audio Capacitors
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
HDMI 1.4, DVI-D. D-Sub Ports for Multiple Display
CEC 2019 Ready, Save Power with a Simple Click
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
All new GIGABYTE APP Center, simple and easy use
Anti-Sulfur Resistors Design
Specifications:
CPU: Supports for 8th Generation Intel Core i7/5/3 Pentium/Celeron Processors
Chipset: Intel H310 Express Chipset
Memory:
2 x DDR4 DIMM sockets supporting up to 32GB of system memory
Dual channel memory architecture
Support for DDR4 2666/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
*The DVI-D port does not support D-Sub connection by adapter*
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
*Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1GB
Maximum support of 2 independent display at one time
Audio:
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
*To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver
LAN: Realtek GbE LAN chip (10/100/1000Mbit)
Expansion Slots:
1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard)
2 x PCI Express x1 slots
(The PCI Express x1 slots conforms to PCI Express 2.0 standard)
1 x PCI slot
Storage Interface: 4 x SATA 6Gbps connectors
USB:
4 x USB3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gbps connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB3.1 Gen 1 header
1 x USB2.0/1.1 header
2 x serial port headers
1 x parallel port header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

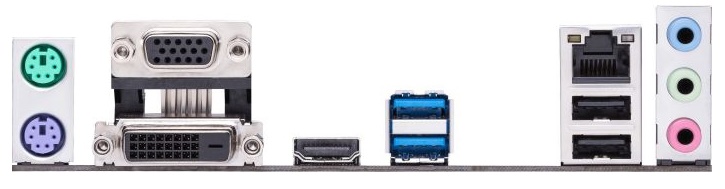

Back Panel Connectors:
1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB3.1 Gen 1 ports
4 x USB2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
I/O Controller: iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
*Whether the fan speed control function is supported will depend on the cooler you install*
BIOS:
1 x 128Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System: Support for Windows 10 64bit
Form Factor: Micro ATX Form Factor; 24.4cm x 18.5cm
