GIGABYTE - MB-GB-H110M-S2PH_DDR3

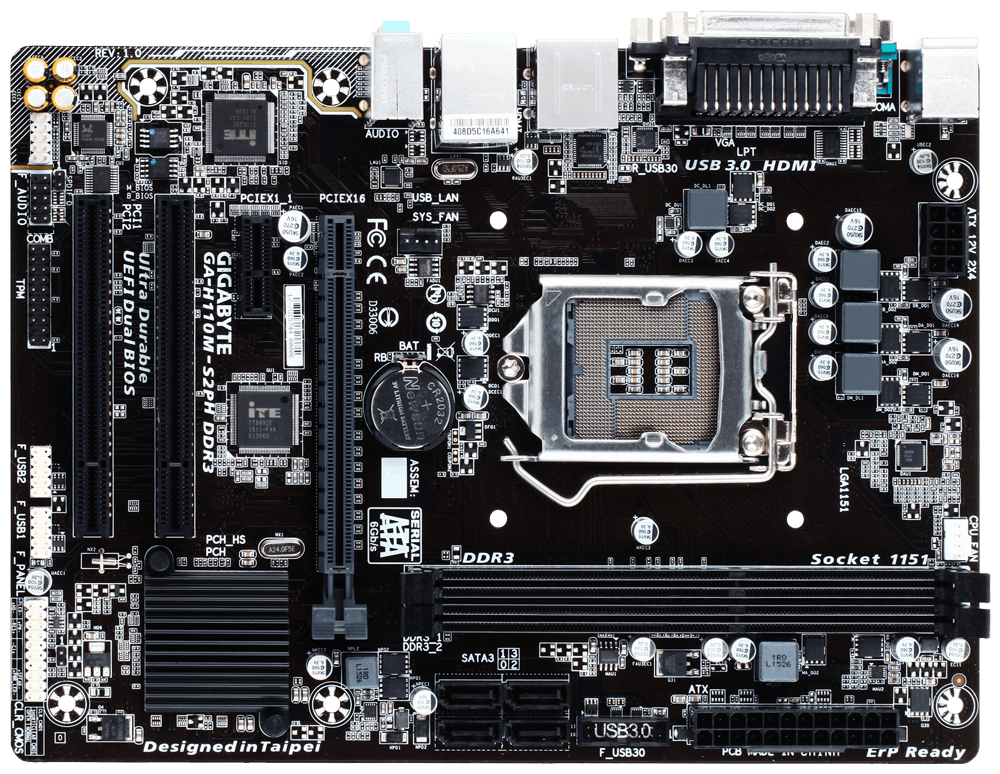

GIGABYTE H110M S2PH DDR3 LGA1151 MB

Description

GIGABYTE 100 series M/B support the latest 6th Generation Intel Core processors, a 14nm desktop CPU which features improved performance, power efficiency & support for DDR3/DDR3L memory, bringing cutting edge features & ultimate performance to you.


Specification

GIGABYTE H110M-S2PH_DDR3 Motherboard

Features:
Supports 6th Generation Intel® Core Processor
Dual Channel DDR3/ DDR3L, 2 DIMMs
8-channel HD Audio with High Quality Audio Capacitors
Audio Noise Guard with LED Trace Path Lighting
HDMI 1.4, D-Sub ports for multiple display
Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
All new GIGABYTE APP Center, simple and easy use
GIGABYTE UEFI DualBIOS Technology
Support Intel® Small Business Basics

Specifications:
CPU:
Support for 7/6th Generation Intel Core i7/5/3/Pentium/Celeron Processors
L3 cache varies with CPU
Chipset: Intel H110 Express Chipset

Memory:
2 x DDR3 DIMM sockets supporting up to 32GB of system memory
Dual channel memory architecture
Support for DDR3/DDR3L 1600/1333MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules

Onboard Graphics Integrated Graphics Processor - Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz
Support for HDMI 1.4 version
Maximum shared memory of 1024MB

Audio:
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN: Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots:
1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slots conform to PCI Express 3.0 standard)
1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard)
2 x PCI slots
Storage Interface: 4 x SATA 6Gbps connectors

USB:
4 x USB3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
6 x USB2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gbps connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB3.0/2.0 header
2 x USB2.0/1.1 headers
1 x serial port header
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

Back Panel Connectors:
1 x PS/2 mouse/keyboard port
1 x D-Sub port
1 x parallel port
1 x serial port
1 x HDMI port
2 x USB3.0/2.0 ports
2 x USB2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line I/O, Mic In)

I/O Controller: iTE I/O Controller Chip
H/W Monitoring:
System voltage detection
System temperature detection
System fan speed detection
System overheating warning
System fan fail warning
System fan speed control

BIOS:
2 x 64Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System:
Windows 10 64bit (7th Generation Intel Processors)
Windows 10/8.1 64bit/ 7 32/64bit (6th Generation Intel Processors)
Form Factor: Micro ATX Form Factor; 24.4cm x 18.0cm
