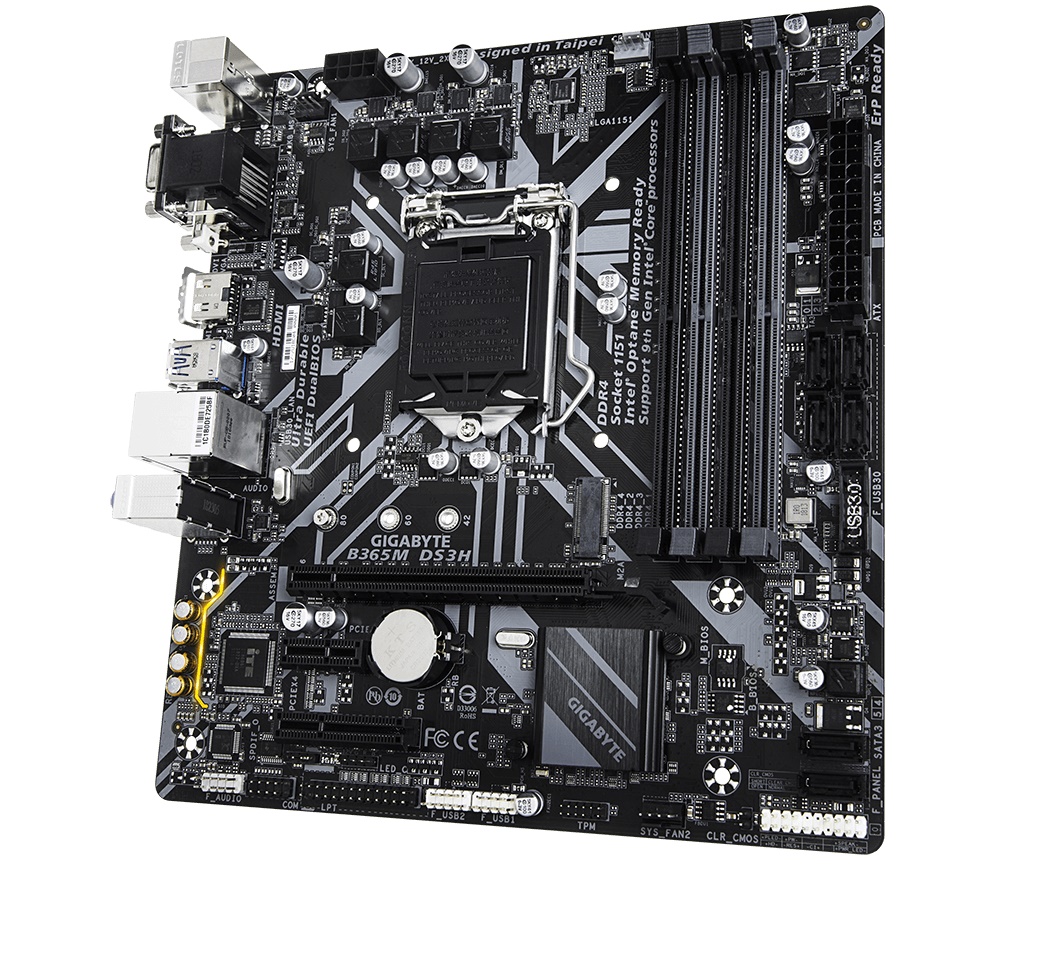

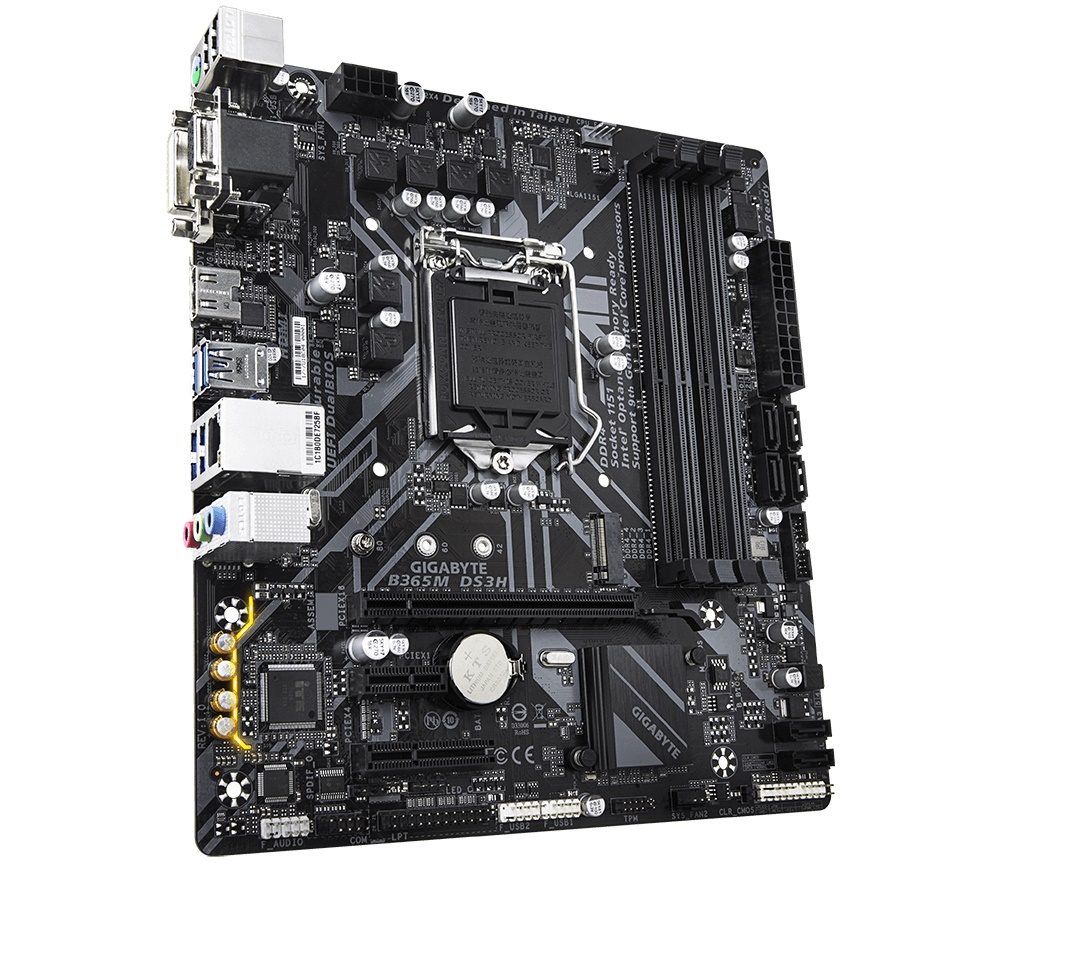

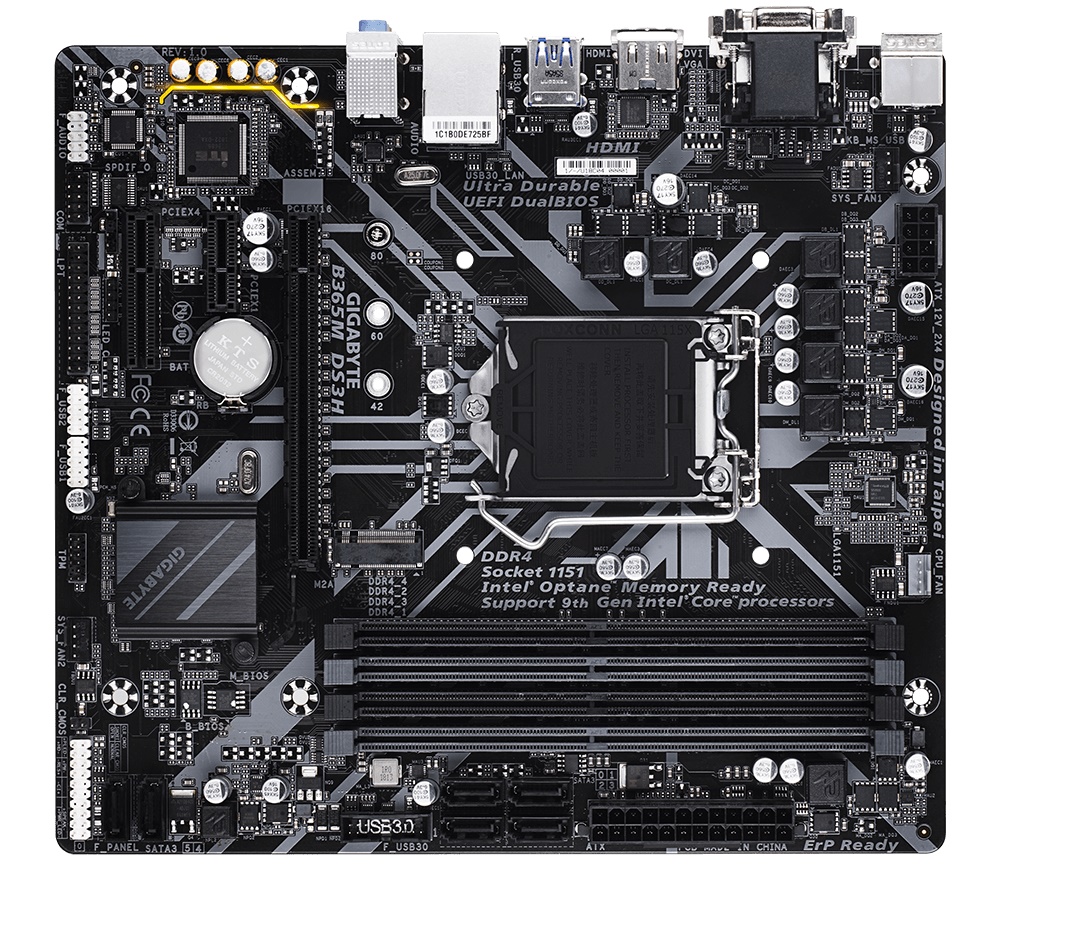

GIGABYTE B365 LGA1151 MICRO ATX MOTHERBOARD

Features:
-Supports 9th and 8th Gen Intel Core Processors
-Dual Channel Non-ECC Unbuffered DDR4
-New Hybrid Digital PWM Design
-High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
-Ultra-Fast M.2 with PCIe Gen3 X3 & SATA interface
-RGB FUSION supports RGB LED strips in 7 colours
-GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
-CEC 2019 Ready, Save the Power as Easy as one Click
-Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
-Anti-Sulfur Resistors Design
-Ultra Durable 15KV Surge LAN Protection
-Intel Optane Memory Ready
-GIGABYTE UEFI DualBIOS

Specifications:
-CPU: Support for 9th/8th Generation Intel Core i9/7/5/3 Processors/Intel Celeron
-Chipset: Intel B365 Express Chipset

Memory:
-4 x DDR4 DIMM sockets supporting up to 64GB of system memory
-Dual channel memory architecture
-Support for DDR4 2666/2400/2133 MHz memory modules
-Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
-Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
-Support for Extreme Memory Profile (XMP) memory modules
*To support 2666MHz or XMP memory, you must install a 9/8th Generation Intel Core i9/7/5 processor

Onboard Graphics - Integrated Graphics Processor-Intel HD Graphics support:
-1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
-1 X DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
*The DVI-D port does not support D-Sub connection by adapter
-1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
*Support for HDMI 1.4 version and HDCP 2.2.
-Support for up to 3 displays at the same time
-Maximum shared memory of 1 GB
-Actual support may vary by CPU

Audio:
-Realtek ALC887 codec
-High Definition Audio
-2/4/5.1/7.1-channel
*To configure 7.1-channel audio, you have to use an HD front audio panel module and enable the multi-channel audio
-Support for S/PDIF Out

-LAN: Realtek GbE LAN chip 10/100/1000Mbit

Expansion Slots:
-1 x PCI Express x16 slot, running at x16
*For optimum performance, if only PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot
-1 x PCI Express x4 slot
-1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard)

Storage Interface:
-1 x M.2 connector (Socket 3, M Key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD suuport)
-6 x SATA 6Gbps connectors
-Support for RAID 0, 1, 5, and RAID 10
-Intel Optane Memory Ready

USB:
-6 x USB3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
-6 x USB2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors:
-1 x 24-pin ATX main power connector
-1 x 8-pin ATX 12V power connector
-1 x CPU fan header
-2 x system fan headers
-1 x RGB LED strip header
-1 x M.2 Socket 3 connector
-6 x SATA 6Gbps connectors
-1 x front panel header
-1 x front panel audio header
-1 x S/PDIF Out header
-1 x USB3.1 Gen 1 header
-2 x USB2.0/1.1 headers
-1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
-1 x serial port header
-1 x parallel port header
-1 x Clear CMOS jumper

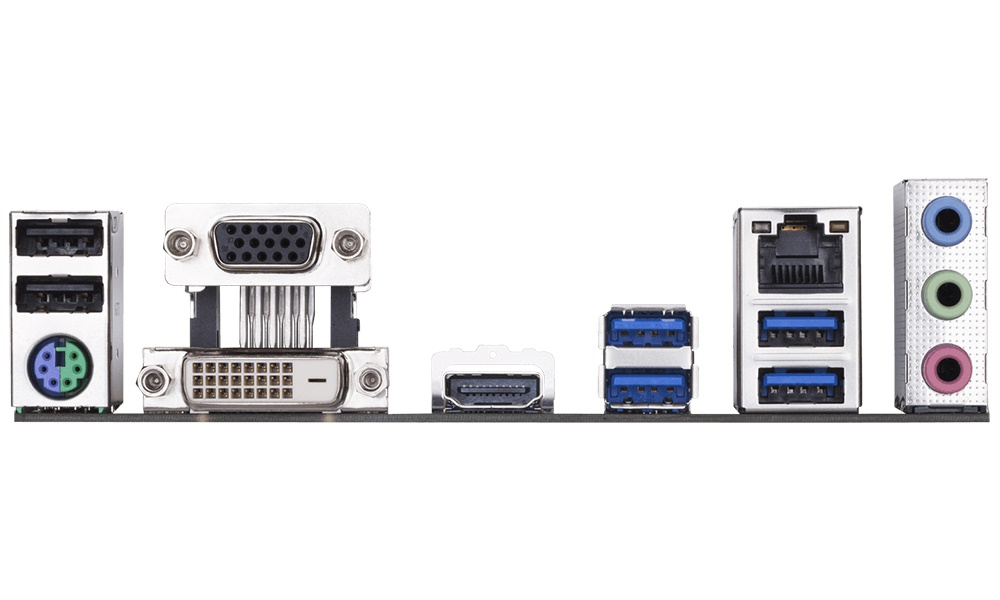

Back Panel Connectors:
-1 x PS/2 keyboard/mouse port
-1 x D-Sub port
-1 x DVI-D port
-1 x HDMI port
-4 x USB3.1 Gen 1 ports
-2 x USB2.0/1.1 ports
-1 x RJ-45 ports
-3 x audio jacks

-OS: Support for Windows 10 64bit
-Form Factor: Micro ATX Form Factor; 22.6cmx20.5cm
