Specification

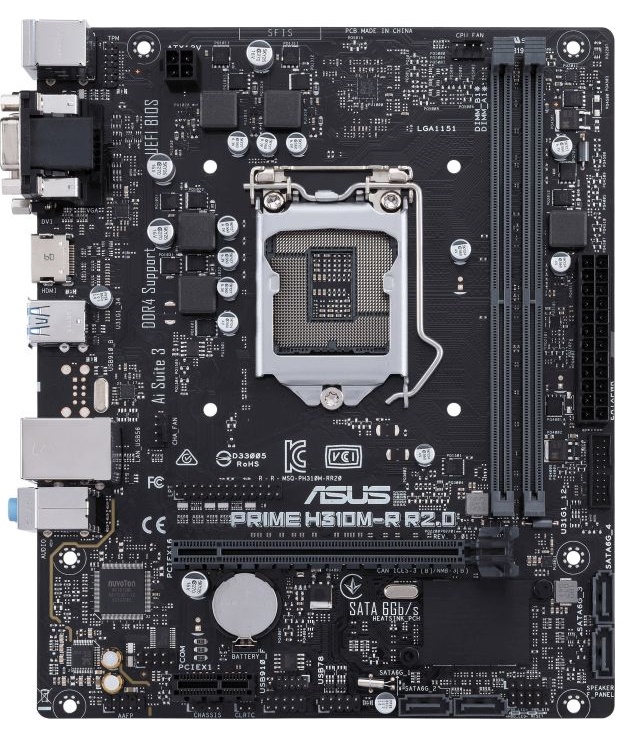

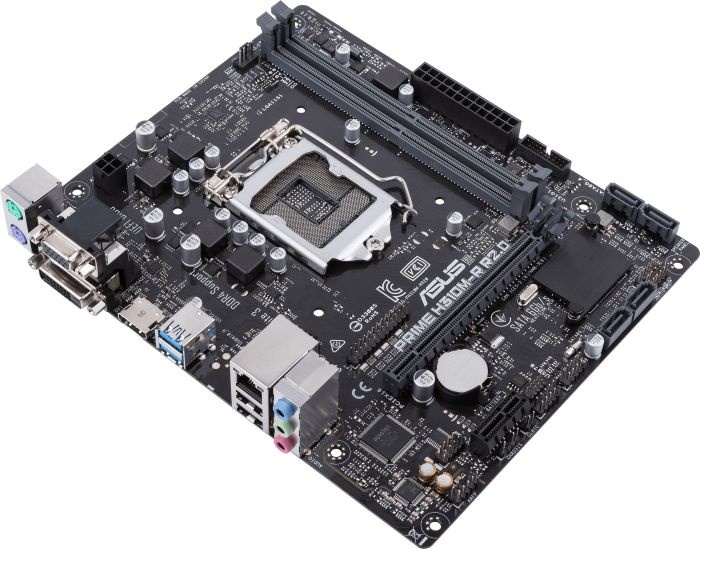

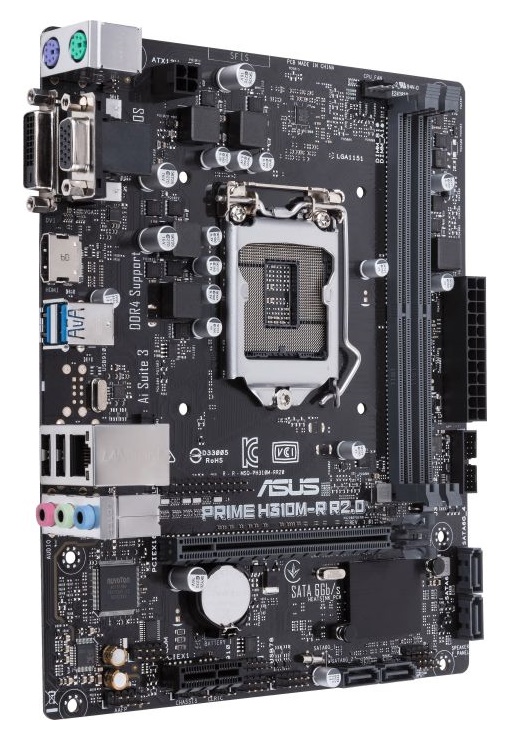

ASUS PRIME H310M-R R2.0 MICRO ATX MB
Specifications:
Chipset: Intel H310 Chipset
CPU:
LGA1151 socket for Intel 8th Generation Core i7/5/3, Pentium and Celeron processors
Support Intel 14nm CPU
Supports Intel Turbo Boost Technology 2.0
Memory:
2x DIMMs, max 32GB, DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memory
Dual-channel memory architecture
Support Intel Extreme Memory Profile (XMP)
*The maximum memory frequency supported varies by processor
**DDR4 2666Mhz and higher memory modules will run at max. 2666Mhz on Intel 8th Gen. 6-core or higher processor
Expansion slots:
1 x PCI Express 3.0/2.0 x16 slot (at x16 mode)
1 x PCI Express 2.0 x1 slot
Graphics: Integrated graphics processor - Intel HD Graphics support
Multi-VGA out support: HDMI/DVI-D/D-Sub ports
Supports HDMI 1.4b output with a maximum resolution of 4096x2160@24Hz/ 25x1600@60Hz
Supports DVI-D output with a maximum resolution of 1920x1200@60Hz
Supports D-Sub output with a maximum resolution of 1920x1200@60Hz
Storage: 4x SATA 6.0Gbps ports (gray)
LAN: Realtek 8111H Gigabit LAN supports LANGuard
USB:
4x USB3.1 Gen 1 (up to 5Gbps) ports (2 ports at mid-board; 2 ports at back panel, blue Type A)
6x USB2.0/1.1 ports (4 ports at mid-board; 2 ports at the back panel)
Audio: Realtek ALC887 8-channel High Definition Audio CODEC
Support jack-detection and front panel jack-retasking

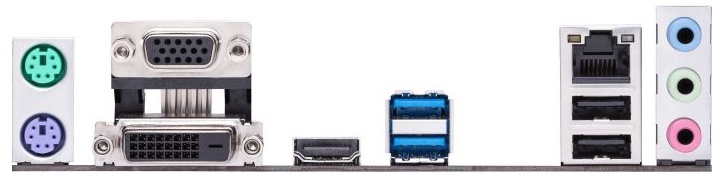

Rear panel I/O ports:
1x PS/2 keyboard (purple) port
1x PS/2 mouse (green) port
2x USB3.1 Gen 1 (up to 5Gbps) ports (Type-A, blue)
2x USB2.0/1.1 ports
1x HDMI port
1x D-Sub port
1x DVI-D port
1x LAN (RJ-45) port
3x Audio jacks support 8-channel audio out*
*Use a chassis with HD audio module in the front panel to support a 8-channel audio output
Internal connectors:
1x USB3.1 Gen 1 (up to 5Gbps) connector supports additional 2 USB3.1 Gen 1 ports (19-pin)
2x USB2.0/1.1 connectors support additional 4 USB2.0/1.1 ports
4x SATA 6.0Gbps connectors
1x 4-pin CPU fan connector for 4-pin PWm mode
1x 4-pin Chassis Fan connector 4-pin PWM mode
1x COM connector
1x Front panel audio connector (AAFP)
1x LPT header
1x Speaker connector
1x Chassis Intrusion header
1x 24-pin EATX Power connector
1x 4-pin ATX 12V Power connector
1x 14-1 pin TPM header
1x System panel connector
1x Clear CMOSjumper (2-pin)
OS support: Windows 10 (64-bit)
Form Factor: uATX Form Factor 21.34 x 17.78 cm
Package Content:
ASUS PRIME H310M-R R2.0 motherboard
2x SATA 6.0Gbps cables
1X ASUS I/O Shield
Support DVD
User Guide
