Specification

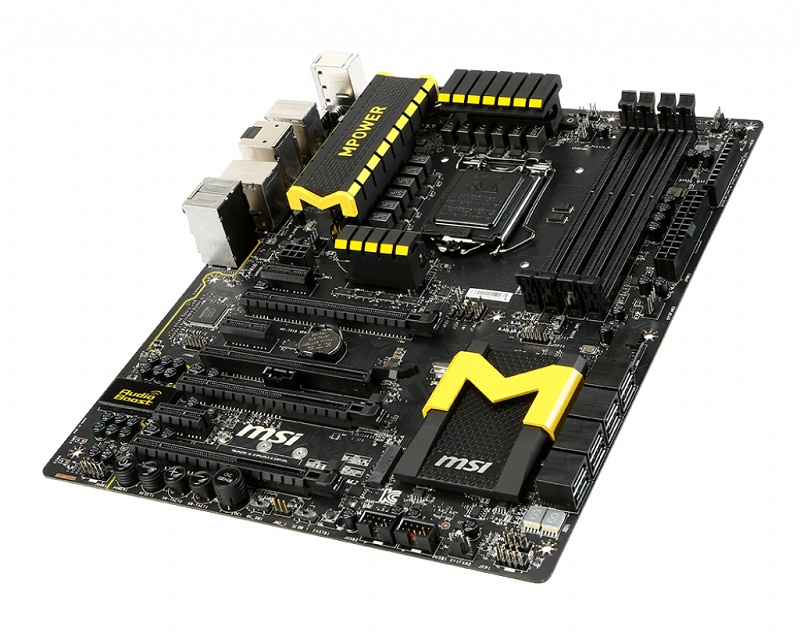

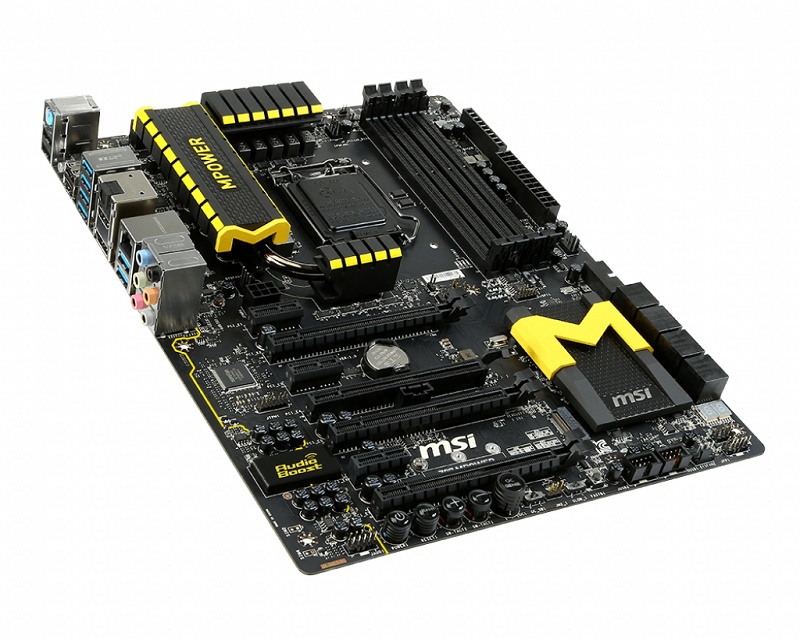

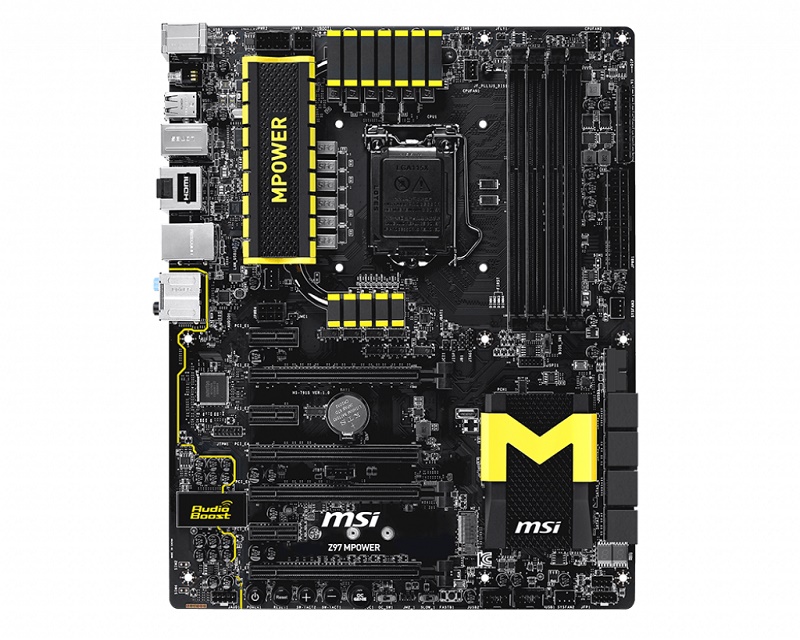

MSI Z97 MPOWER Motherboard
Supports 4th and 5th Gen Intel Core / Pentium / Celeron processors for LGA 1150 socket
Supports DDR3-3300(OC) Memory
M.2 + USB 3.0 + SATA 6Gbps
Multi-GPU: NVIDIA SLI & 3-way AMD CrossFire Support
12 Phase DigitALL Power Design
OC Certified: Military Class Burn-in Test Passed
Enhanced Thermal Design & Water Cooling Heatsink
OC Engine: For More Flexible BCLK Adjustments
V-Check Points2: 3 multi-meters at the same time
VGA Cease Fire: Easy to Disable the VGA Card
Guard-Pro: Improved Protection and Power Efficiency
Military Class 4: top Quality & Stability
OC Essentials: The Most Convenient Tools while Breaking the Record
OC Genie 4: Overclock in 1 Second
Click BIOS 4: Easily fine-tune Your System
Command Center: Control & Customize Your PC settings
Wi-Fi 802.11 ac, Bluetooth 4.0, Intel wireless Display
Specification:
CPU: Supports 4/5th Generation Intel Core Processors, and Intel Pentium/Celeron Processors for Socket LGA1150
Chipset: Intel Z97 Express Chipset
Main Memory:
Supports four DDR3 DIMMs 1066/1333/1600/1866/2000/2133/2200/2400/2600/2666/2800/3000/3100/3200/3300(OC) DRAM, 32GB Max
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Slots:
3 x PCIe 3.0 x16 slots
4 x PCIe 2.0 x1 slots
On-Board SATA:
6 x SATA 6Gbps ports (SATA1¬6)
1 x M.2 Key M Socket supports type 2280/2260/2242 storage devices in both PCIe Gen2 x2 & SATA mode
M.2 port supports M.2 SATA 6Gbps module
M.2 port supports M.2 PCIe module up to 10Gbps speed
Supports RAID 0, 1, 5 and RAID 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology and Intel Smart Connect Technology
USB:
Intel Z97 Express Chipset:
4 x USB 3.0 ports available through the internal USB connectors
6 x USB 2.0 ports
ASMedia ASM1074 Chipset: 6x USB3.0 ports on the back panel
Renesas ASM1042 Chipset: 2x USB3.0 ports on the back panel
Audio:
Realtek ALC1150 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN: 1x Intel I218-V Gigabit LAN controller
Multi-GPU:
Supports 3-Way AMD CrossFire Technology
Supports 2-Way NVIDIA SLI Technology
Supports Windows 7 and Windows 8/8.1
Wireless LAN:
Wi-Fi/BT expansion module with Intel Dual Band Wireless-AC 7260 chip
Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867Mbps speed
Supports Intel Wireless Display (WiDi)
Bluetooth:
Wi-Fi/BT expansion module with Intel Dual Band Wireless-AC 7260 chip
Supports Bluetooth v4.0
Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x 6-pin ATX 12V power connector
8 x SATA 6Gbps connectors
2 x USB 2.0 connectors
2 x USB 3.0 connectors
2 x 4-pin CPU fan connectors
3 x 4-pin system fan connetors
1 x Front panel audio connector
2 x System panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Wi-Fi/Bluetooth module connector

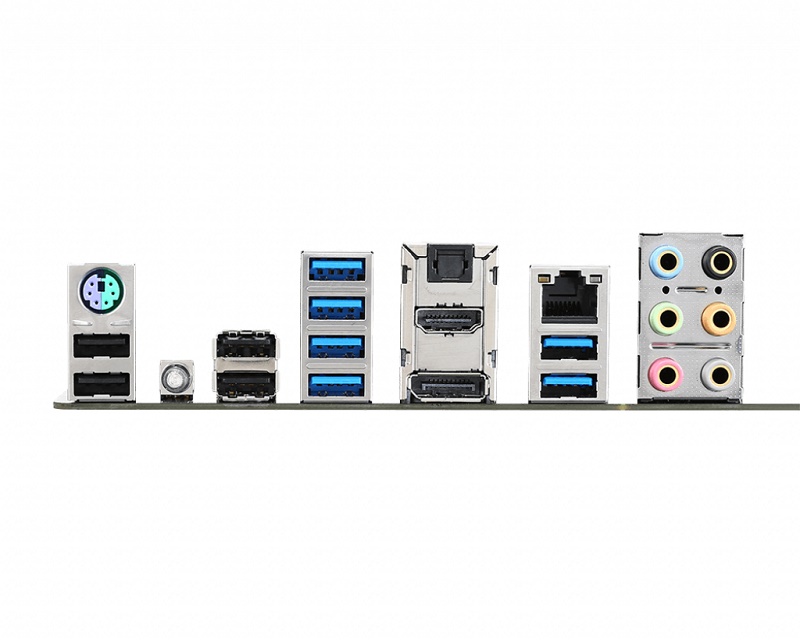

Back Panel I/O Ports:
1 x PS/2 keyboard/mouse port
2 x USB 2.0 ports
8 x USB 3.0 ports
1 x Optical S/PDIF OUT connector
1 x HDMI port
1 x DisplayPort
1 x LAN (RJ45) port
6 x OFC audio jacks
Dimension: 30.5 x 24.4 cm ATX Form Factor
Mounting: 9 mounting holes
