Specification

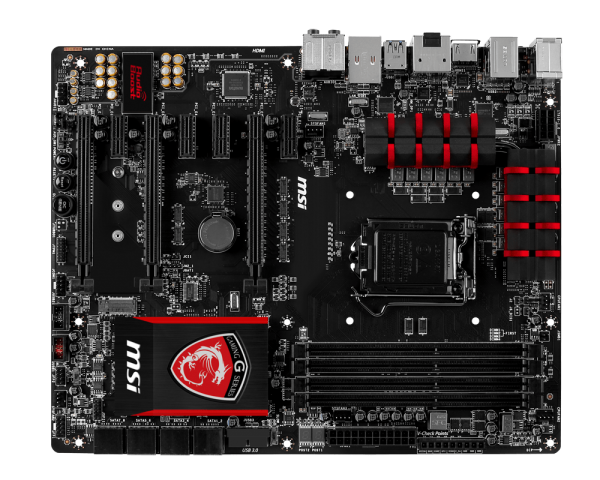

MSI Z97 Gaming 7 Motherboard
Supports 4th and 5th Gen Intel Core
/ Pentium / Celeron processors for LGA 1150 socket
Supports DDR3-3300(OC) Memory
M.2 + USB 3.0 + SATA 6Gbps
Audio Boost: Reward Your Ears with True Quality
Killer Ethernet: Kill Your Lag
XSplit Gamecaster: Slow off Your Skills and Achievements
Guard-Pro: Improved Protection and Power Efficiency
OC Genie 4: Overclock in 1 Second
Gaming App: Boost Your Frame Rate
Click BIOS 4: Easily Fine-tune Your System
Multi-GPU: NVIDIA SLI & AMD CrossFire Support
Sound Blaster Cinema 2: Realistic Surround Experience
Gaming Device Port: Optimized with Triple Gold-plating for High Polling Rate Gaming Devices
Specification:
CPU: Supports 4/5th Generation Intel Core Processors, and Intel Pentium and Celeron Processors for Socket LGA1150
Chipset: Intel Z97 Express Chipset
Main Memory:
Support four DDR3 1066/1333/1600/1866/2000/2133/2200/2400/2600/2666/2800/3000/3100/3200/3300 (OC) MHz DRAM, 32GB Max
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
Supports non-ECC, un-buffered memory
Slots:
3x PCIe 3.0 x16 slots
4x PCIe 2.0 x1 slots
On-Board SATA:
6x SATA 6Gbps ports
1x M.2 Key M Socket supports type 2280/2260/2242 storage devices in both PCIe Gen2 x2 & SATA mode
M.2 port supports M.2 SATA 6Gbps module
M.2 port supports M.2 PCIe module up to 10Gbps speed
M.2 port supports 4.2/ 6/ 8cm length module
Supports RAiD 0, 1, 5, 10
Supports Intel Smart Response Technology, Intel Rapid Start Technology and Intel Smart Connect Technology
USB:
Intel Z97 Express Chipset:
4x USB 3.0 ports
6x USB 2.0 ports
ASMedia ASM1074 Chipset: 4x USB3.0 ports on the back panel
ASMedia ASM1042 chipset: 2x USB3.0 ports on the back panel
Audio:
Realtek ALC1150 Codec
7.1-channel High Definition Audio
Supports S/PDIF output
LAN: 1x Killer E2205 Gigabit LAN controller
Multi-GPU:
Supports 3-Way AMD CrossFire Technology
Supports 2-Way NVIDIA SLI Technology
Supports Windows 7 and Windows 8/8.1
Internal I/O Connectors:
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
8x SATA 6Gbps connectors
1x M.2 port
2x USB 2.0 connectors
1x USB 3.0 connector
2x 4-pin CPU fan connectors
3x 4-pin system fan connectors
1x TPM module connector
1x Serial port connector
1x Front panel audio connector
1x Direct audio power connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
9x V-Check connectors
1x Power button
1x Reset button
1x OC Genie button
1x Multi-BIOS switch
1x Audio power switch
1x 2-Digit Debug Code LED
Back Panel I/O Ports:
1x PS/2 keyboard/ mouse combo port
1x Clear CMOS button
1x LAN (RJ45) port
2x USB 2.0 ports
8x USB 3.0 ports
1x Optical S/PDIF OUT connector
6x OFC audio jacks
2x HDMI port, supporting a maximum resolution of 4096x2160@24Hz
1x DisplayPort, supporting a maximum resolution of 4096x2304@24Hz
Dimension: 12" x 9.6" (30.5cm x 24.4cm) ATX Form Factor
Mounting: 9 mounting holes
