GIGABYTE - MB-GB-B550M-S2H

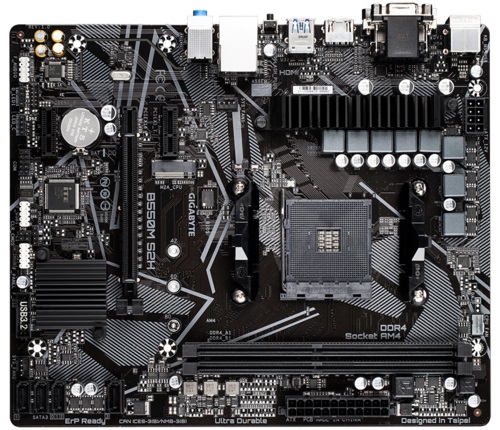

GIGABYTE B550M-S2H AM4 5000/3RD GEN MB

Description

AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 4.0/3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5 ,Q-Flash Plus , Anti-Sulfur Resistors Design


Specification

GIGABYTE B550M S2H AMD 5000/3RD GEN MOTHERBOARD

Features:
-Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
-Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connector
-Ultra Durable PCIe 4.0 Ready x16 Slot
-HDMI, DVI-D, D-sub Ports for Multiple Display
-Anti-Sulfur Resistors Design
-GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

Specifications:
-Chipset: AMD B550
-LAN: Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
-I/O Controller: iTE® I/O Controller Chip
-Operating System: Support for Windows 10 64-bit
-Form Factor: Micro ATX Form Factor; 24.4cm x 20.5cm

CPU:
-AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors

Memory:
-2 x DDR4 DIMM sockets supporting up to 64 GB(32GB single)
-AMD Ryzen 5000 series processors: Support for DDR4 4266(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/ 400(O.C.)/333(O.C.)/3300(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
-3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
-3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5100(O.C.)/5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
-Dual channel memory architecture
-Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
-Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Onboard Graphics:
-1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
-1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
-1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio:
-Realtek® ALC887 codec
-High Definition Audio
-2/4/5.1/7.1-channel

Expansion Slots:
1? x PCI Express x16 slot, integrated in the CPU:
-3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
-3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode

2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated in the Chipset:
-Supporting PCIe 3.0 x1 mode

Storage Interface:
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
-3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
-3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:
-Support for RAID 0, RAID 1, and RAID 10

USB:
Integrated in the CPU:
-4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
-2 x USB 3.2 Gen 1 ports available through the internal USB headers
-4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB headers)

I/O Connectors:
-1 x 24-pin ATX main power connector
-1 x 8-pin ATX 12V power connector
-1 x CPU fan header
-2 x system fan headers
-1 x addressable LED strip header
-1 x RGB LED strip header
-1 x M.2 Socket 3 connector
-4 x SATA 6Gb/s connectors
-1 x front panel header
-1 x speaker header
-1 x USB 3.2 Gen 1 header
-1 x USB 2.0/1.1 header
-1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
-1 x serial port header
-1 x chassis intrusion header
-1 x Clear CMOS jumper

Back Panel Connectors:
-1 x PS/2 keyboard/mouse port
-1 x D-Sub port
-1 x DVI-D port
-1 x HDMI port
-4 x USB 3.2 Gen 1 ports
-2 x USB 2.0/1.1 ports
-1 x RJ-45 port
-3 x audio jacks
