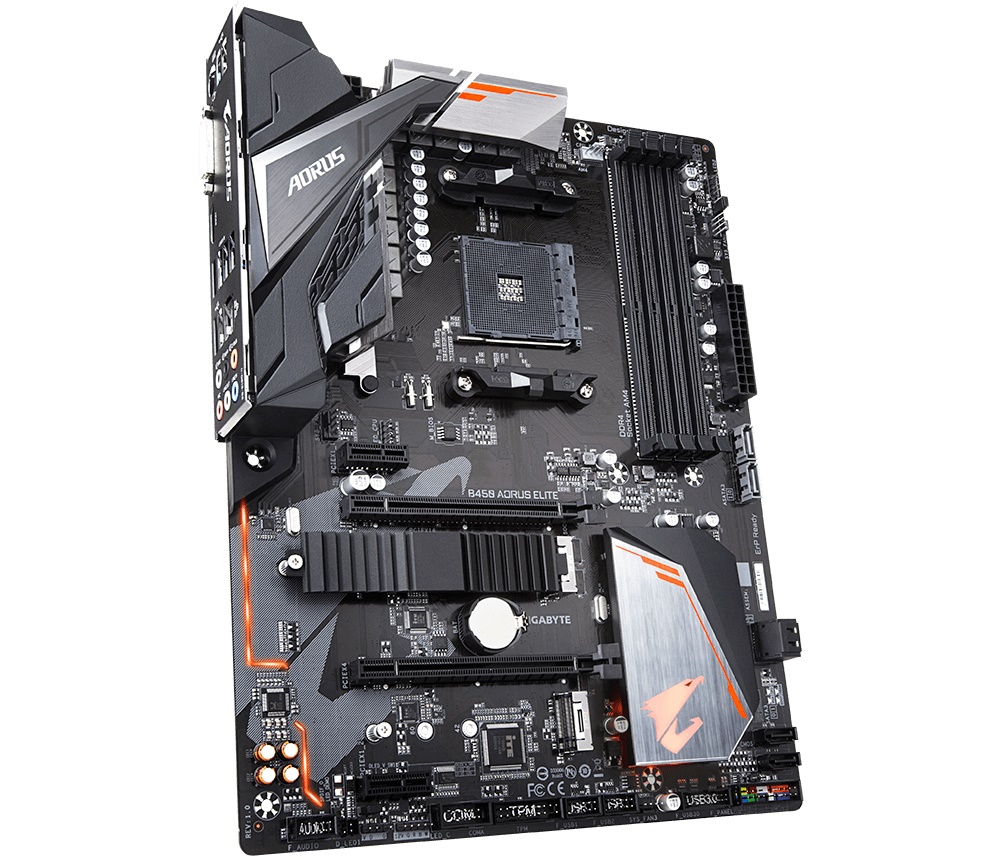

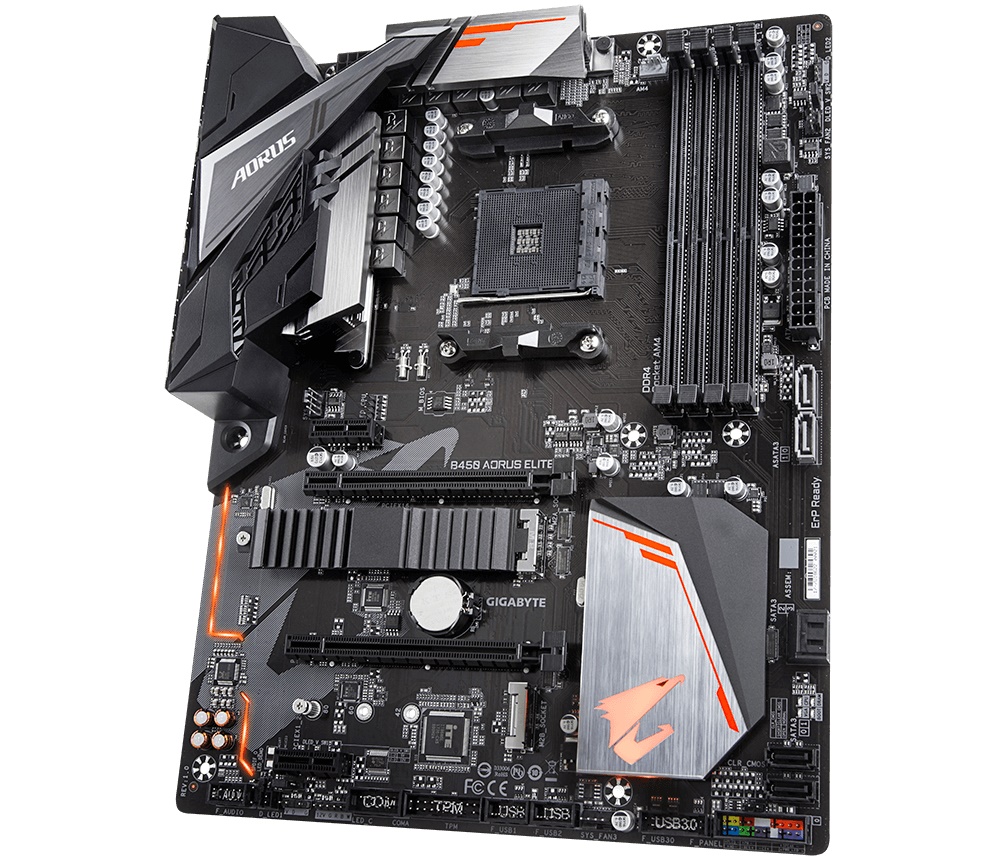

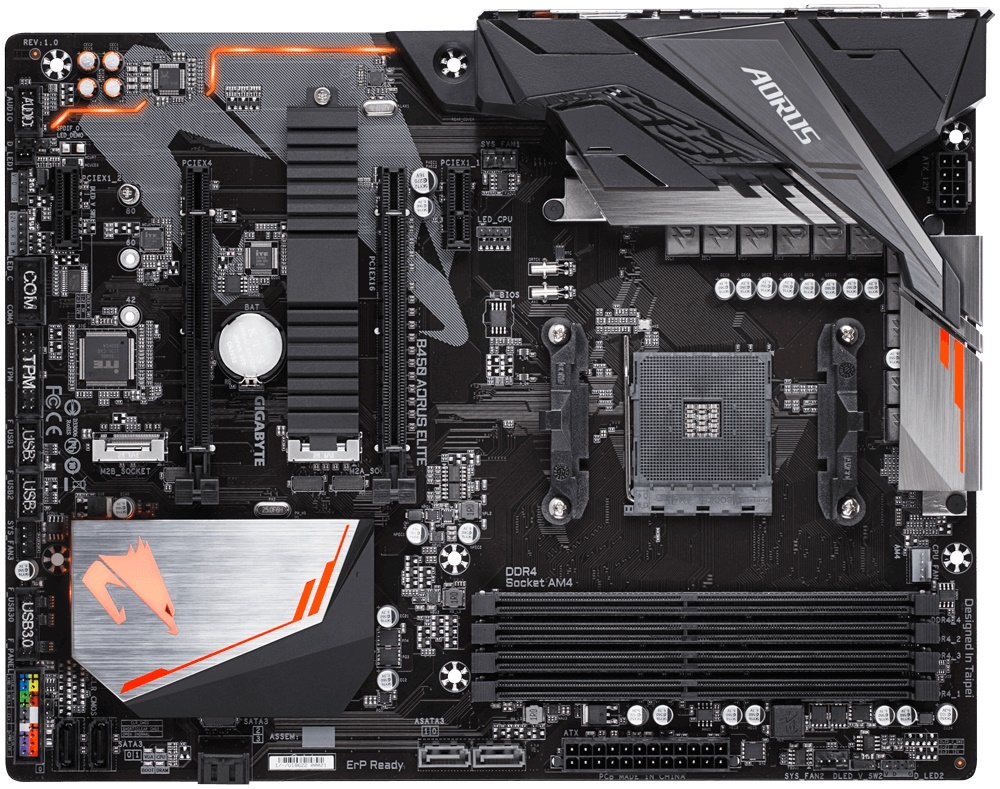

GIGABYTE - MB-GB-B450-AORUS-ELITE



GIGABYTE AORUS B450 ELITE AM4 ATX 4XDDR4

Description

AMD B450 AORUS Motherboard with Hybrid Digital PWM, Dual M.2 with One Thermal Guard, RGB FUSION 2.0, GIGABYTE Gaming LAN with Bandwidth Management, CEC 2019 ready.


Specification

GIGABYTE AORUS B450 ELITE AM4 ATX MOTHERBOARD

Features:
-Supports AMD 3rd Gen Ryzen/2nd Gen Ryzen/1st Gen Ryzen/2nd Gen Ryzen with Radeon Vega Graphics/1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
-Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
-HDMI, DVI-D Ports for Multiple Display
-Integrated I/O Shield of Ultra Durable Design
-Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with One Thermal Guard
-High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
-RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
-GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
-Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP
-APP Center Including EasyTune and Cloud Station Utilities
-CEC 2019 Ready, Save Power with a Simple Click

Specifications:
-CPU: Supports AMD 3rd Gen Ryzen/2nd Gen Ryzen/1st Gen Ryzen/2nd Gen Ryzen with Radeon Vega Graphics/1st Gen Ryzen with Radeon Vega Graphics/Athlon with Radeo Graphioc Processors

-Chipset: AMD B450

Memory:
-4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
-Dual channel memory architecture
-Support for DDR4 3600(O.C)/3466/3200/2933/2667/2400/2133 MHz memory modules
-Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
-Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
-Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics - Integrated Graphics Processor:
-1x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
-1x HDMI port, supporting a maximum resolution of 4096x2160@60Hz
-Maximum shared memory of 16GB

Audio:
-RealtekĀ® ALC892 codec
-High Definition Audio
-2/4/5.1/7.1-channel
-Support for S/PDIF Out

-LAN: RealtekĀ® GbE LAN chip (10/100/1000 Mbit)
-Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

Expansion Slots:
-1x PCI Express x16 slot, running at x16 (PCIEX16)
-1x PCI Express x16 slot, running at x4 (PCIEX4)
-2x PCI Express x1 slots

Storage Interface:
-1x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/2 SSD support) (M2A_SOCKET)
-1x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
-6x SATA 6Gbps connectors
-Support for RAID 0/1 and RAID 10

USB:
Chipset:
-2x USB3.1 Gen 1 ports available through the internal USB header
-8x US2.0/1.1 ports
Integrated in the APU:
-4x USB3.1 Gen 1 ports on the back panel

Internal I/O Connectors:
-1 x 24-pin ATX main power connector
-1 x 8-pin ATX 12V power connector
-2 x M.2 Socket 3 connectors
-6 x SATA 6Gb/s connectors
-1 x CPU fan header
-3 x system fan headers
-1 x CPU cooler LED strip/RGB LED strip extension cable header
-1 x RGB (RGBW) LED strip header
-2 x digital LED strip headers
-2 x digital LED strip power select jumpers
-1 x front panel header
-1 x front panel audio header
-1 x S/PDIF Out header
-1 x USB 3.1 Gen 1 header
-2 x USB 2.0/1.1 headers
-1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
-1 x serial port header
-1 x Clear CMOS jumper

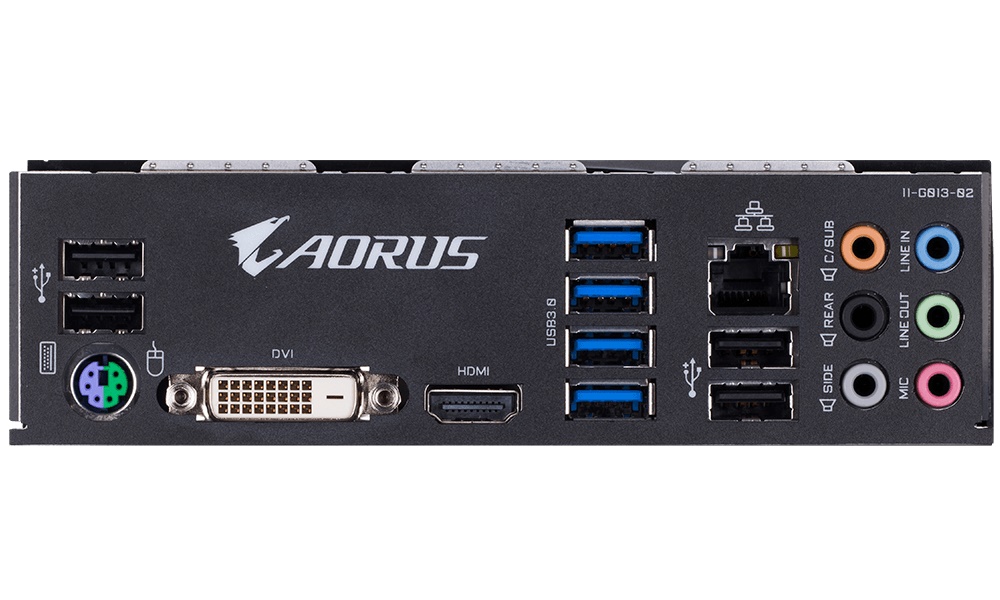

Back Panel Connectors:
-1 x PS/2 keyboard/mouse port
-1 x DVI-D port
-1 x HDMI port
-4 x USB 3.1 Gen 1 ports
-4 x USB 2.0/1.1 ports
-1 x RJ-45 port
-6 x audio jacks

BOIS:
-1 x 128 Mbit flash
-Use of licensed AMI UEFI BIOS
-PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System:
-Support for Windows 10 64-bit
-Support for Windows 7 64-bit

-Form Factor: ATX Form Factor; 30.5cm x 23.5cm
