GIGABYTE - MB-GB-A320M-S2H



GIGABYTE AMD A320 AM4 2*DDR4 1*M.2 MATX

Description

Supports AMD Ryzen & 7th Generation A-series/ Athlon Processors. Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support. High Quality Audio Capacitors & Audio Noise Guard. Realtek Gigabit LAN.


Specification

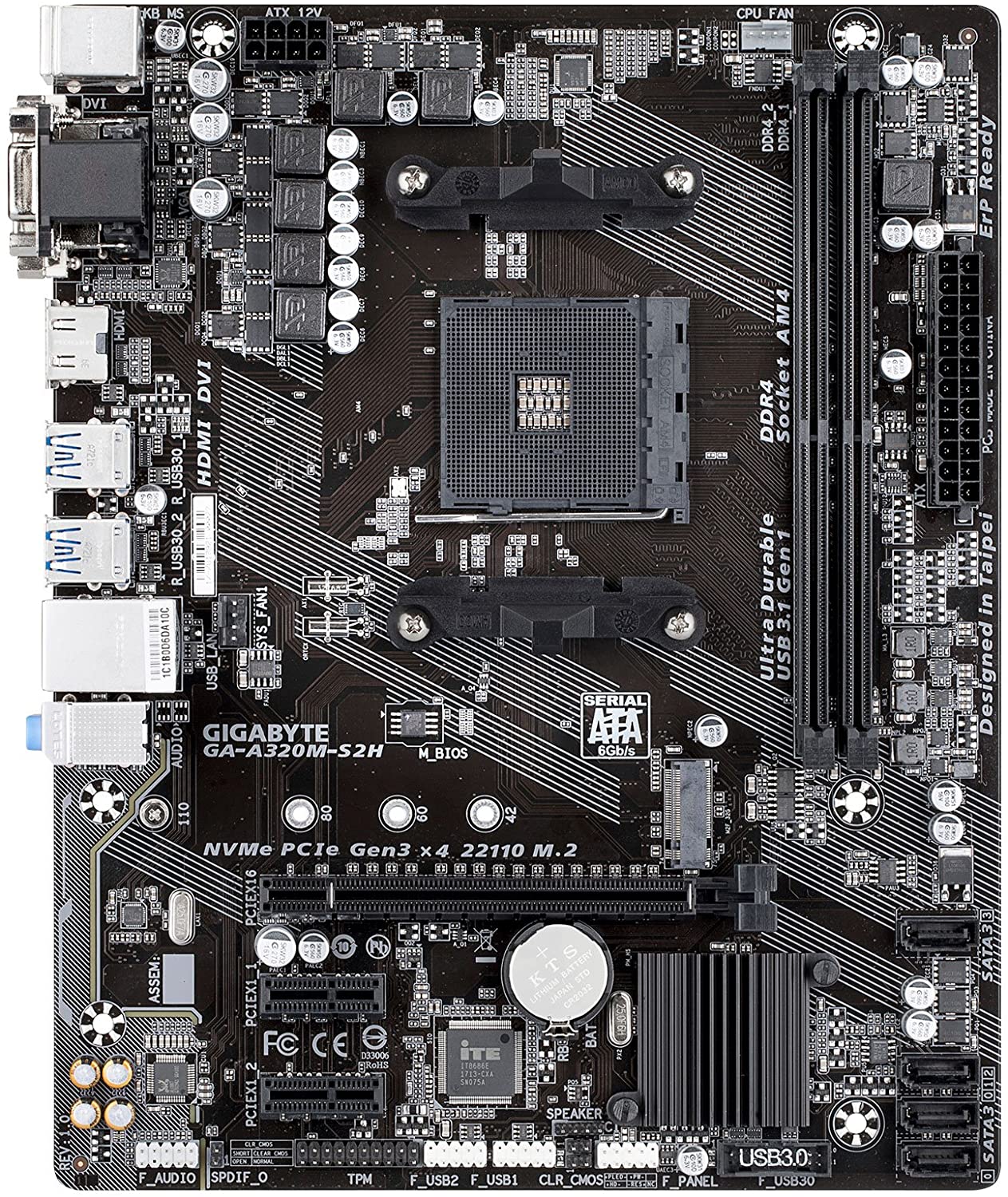

GIGABYTE AMD A320M-S2H Motherboard

Features:
Supports AMD Ryzen & 7th Generation A-series/ Athlon Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
High Quality Audio Capacitors and Audio Noise Guard
Realtek Gigabit LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
GIGABYTE UEFI BIOS
All New GIGABYTE APP Center, Simple and Easy Use

Specifications:
CPU:
AMD Ryzen processor
AMD 7th Generation A-series/ Athlon processor
Chipset: AMD A320

Memory:
2 x DDR4 DIMM sockets supporting up to 32GB of system memory
Dual channel memory architecture
Support for DDR4 3200(O.C.)/2933/2667/2400/2133MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics - Integrated Graphics Processor:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz
Support for HDMI 1.4 version

Audio:
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN: Realtek GbE LAN chip (10/100/1000Mbit)

Expansion Slots:
1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard)
2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard)

Storage Interface:
1 x M.2 connector (Socket 3, M Key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (Actual support may vary by CPU)
Support only M.2 SATA SSDs when using an AMD Athlon 200-series/ 7th Generation A-series or Athlon APU
4 x SATA 6Gbps connectors
Support for RAID 0, RAID 1, and RAID 10

USB:
Chipset:
2 x USB3.1 Gen1 ports available through the internal USB header
6 x USB2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU: 4 x USB3.1 Gen1 ports on the back panel

Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gbps connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB3.1 Gen 1 header
2 x USB2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x 10pin, for the GC-TPM2.0 module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

Back Panel Connectors:
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB3.1 Gen 1 ports
2 x USB2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Out, Mic In)

I/O Controller: iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control

BIOS:
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System: Support for Windows 10/7 64bit
Form Factor: Micro ATX Form Factor; 24.4cm x 19.5cm
