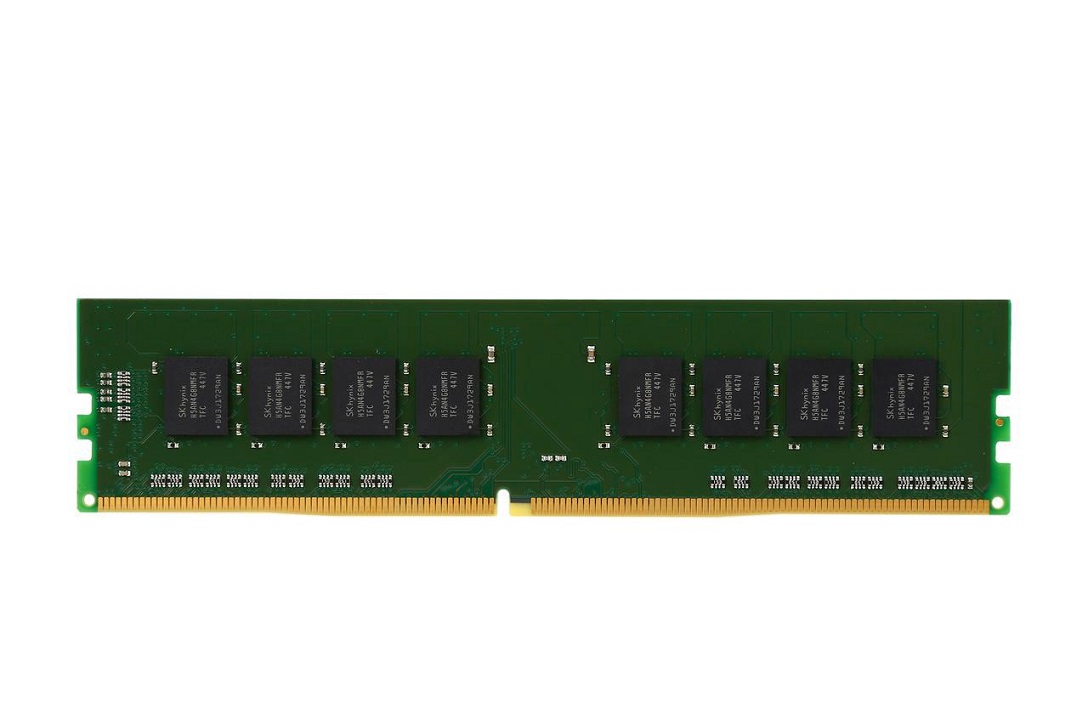

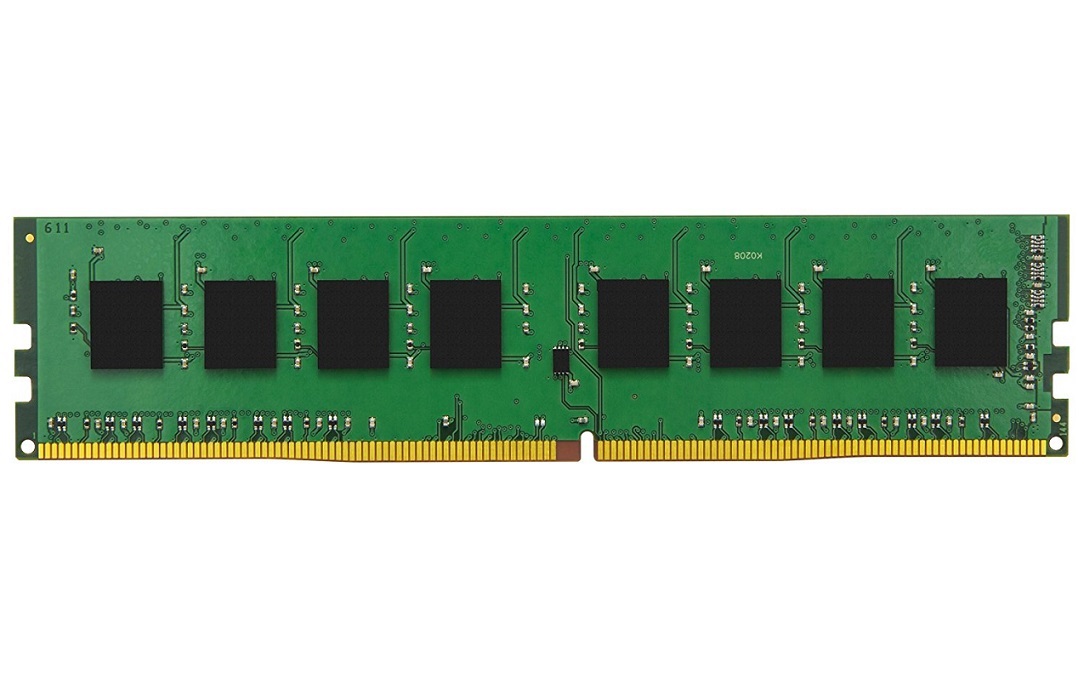

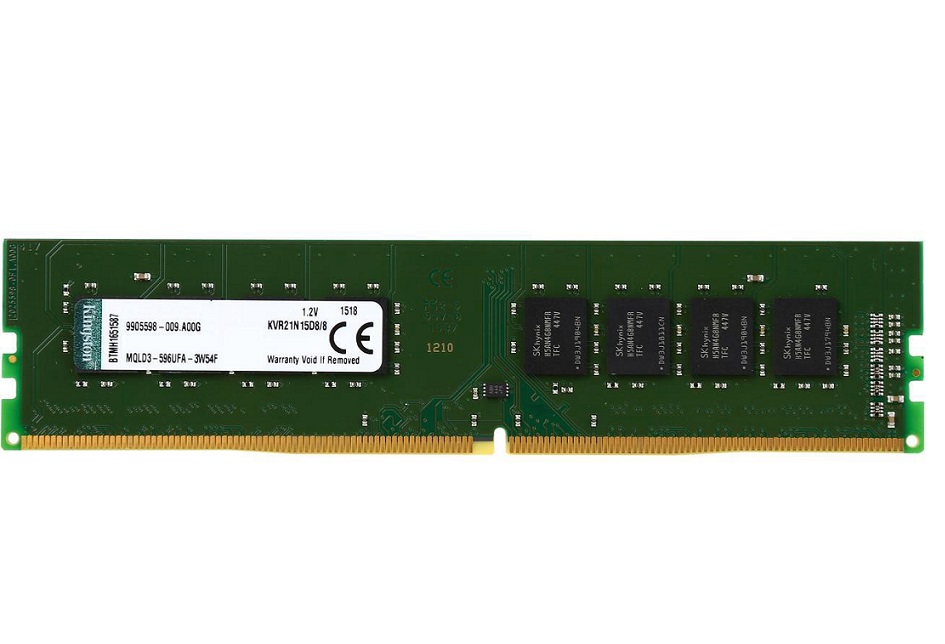

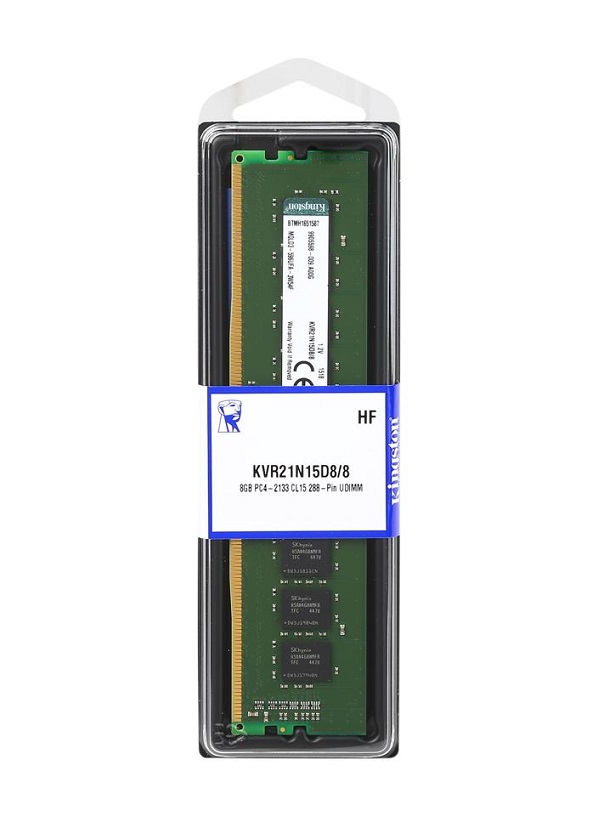

Kingston 8GB DDR4-2133MHz DIMM

Power Supply: VDD=1.2V Typical
PCB:
Height 1.23" (31.25mm)
VDDQ = 1.2V Typical
VPP - 2.5V Typical
VDDSPD=2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
RoHS Compliant and Halogen-Free

Specifications:
CL(IDD): 15 cycles
Row Cycle Time (tRCmin): 46.5ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin): 350ns(min.)
Row Active Time (tRASmin): 33ns(min.)
Maximum Operating Power: TBD W
UL Rating: 94 V - 0
Operating Temperature: O to 85 Degree Celcius
Storage Temperature: -55 to +100 Degree Celcius
