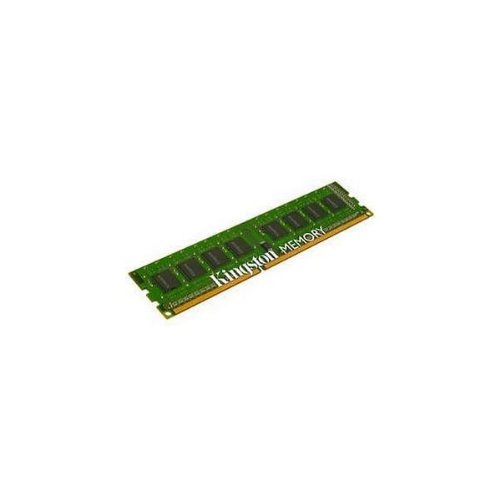

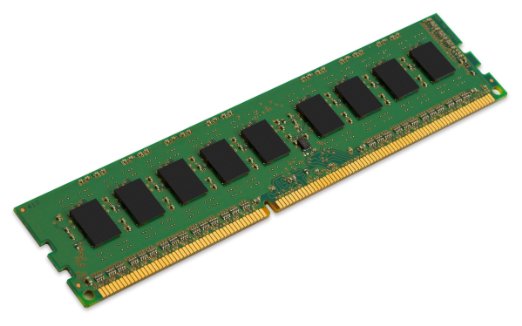

KINGSTON - D3-KVR16R11D4/8



KST 8GB 1600MHZ ECC REG CL11 DIMM

Description

Kingston ValueRAM's 1G x 72-bit (8GB) DDR3- 1600 CL11 SDRAM (Synchronous DRAM), registered w/parity, 2Rx4 ECC, Intel® Compatibility Tested, memory module, based on thirty-six 512M x 4-bit FBGA components.


Specification

WEB LINK:

Kingston ValueRAM's 1G x 72-bit (8GB) DDR3- 1600 CL11 SDRAM (Synchronous DRAM), registered w/parity, 2Rx4 ECC, Intel® Compatibility Tested, memory module, based on thirty-six 512M x 4-bit FBGA components

Features:
-JEDEC standard 1.5V (1.425V~1.575V) Power Supply.
-VDDQ = 1.5V (1.425V~1.575V)
-800MHz fCK for 1600MB/sec/pin
-8 independent internal bank
-Programmable CAS Latency: 11, 10, 9, 8, 7, 6
Programmable Additive Latency:
-0, CL -2, or CL-1 clock
-8-bit pre-fetch
Burst Length:
-8 (Interleave without any limit, sequential with starting address "000" only), 4 with tCCD = 4 which does not allow seamless read or write
-Bi-directional Differential Data Strobe
-Internal(self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm +-1%)
-On Die Termination using ODT pin
-On-DIMM thermal sensor (Grade B)
-Average Refresh Period 7.8us lower than TCASE 85 Degree Celicus, 3.9us at 85-Asynchronous Reset
-PCB: Height 1.180" (30.00mm), double sided component

Specifications:
-CL(IDD): 11 cycles
-Row Cycle Time (tRCmin): 48.125ns (min)
-Refresh to Active/Refresh Command Time (tRFCmin): 260ns (min)
-Row Active Time (tRASmin): 35ns (min)
-Maximum Operating Power: 5.196W
-UL Rating: 94V - 0
-Operating Temperature: 0 to 85 Degree Celcius
-Storage Temperature: -55 to 100 Degree Celcius

What's in the box:
-1x Kingston 8GB DDR3-1600MHz Memory
