Specification
WEB LINK:

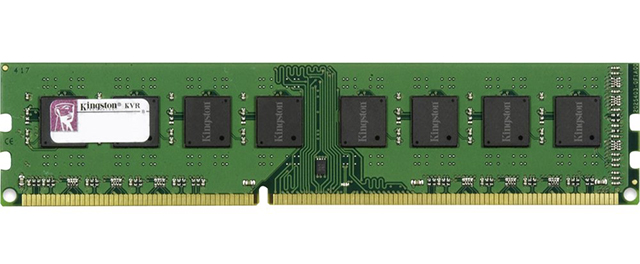

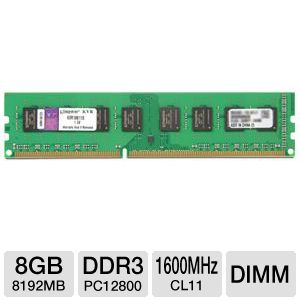

Kingston ValueRAM's 1G x 64-bit (8GB) DDR3- 1600 CL11 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V
Features:
-JEDEC standard 1.5V (1.425~1.575V) Power Supply
-VDDQ = 1.5V (1.425~1.575V)
-8000MHz fCK for 1600MB/sec/pin
-8 independent internal banks
-Programmable CAS latency: 11, 10, 9, 8, 7, 6,
Programmable Additive Latency:
-0, CL-2, or CL - 1 clock
-8-bit pre-fetch
Burst Length:
-8 (interleave without any limit, sequential with starting address "000" only), 4 with tCCD = 4 which does not allow seamless read or write
-Bi-directional differential Data Strobe
-Internal (self) calibration:
-Internal self calibration through ZQ pin (RZQ: 240 ohm +- 1%)
-On Die Termination using ODT pin
-Average Refresh Period 7.8us at lower than TCASE 85 Degree Celcius, 3.9us 85-Asynchronous Reset
-PCB: Height 0.740" (18.75mm) or 1.180" (30.00mm)
Specifications:
-CL(IDD): 11 cycles
-Row Cycle Time (tRCmin): 48.125(min)
-Refresh to Active/Refresh Command Time (tRFCmin): 260ns(min)
-Row Active Time (tRASmin): 35ns(min)
-Maximum Operating Power: TBD W
-UL Rating: 94V - 0
-Operating Temperature: 0 C to +85 C
-Storage Temperature: -55 C to +100 C
What's in the box:

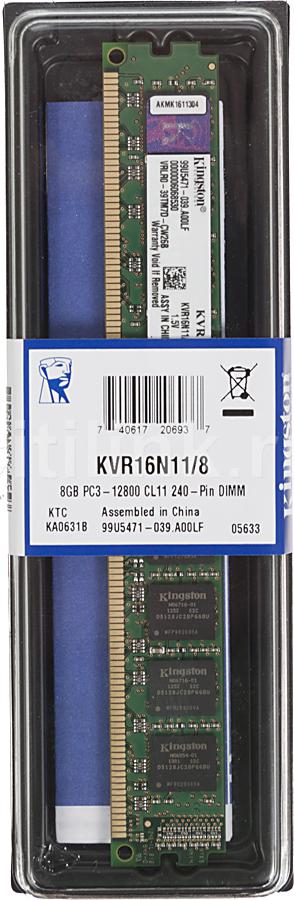

-1x Kingston 8GB DDR3-1600MHz Memory
