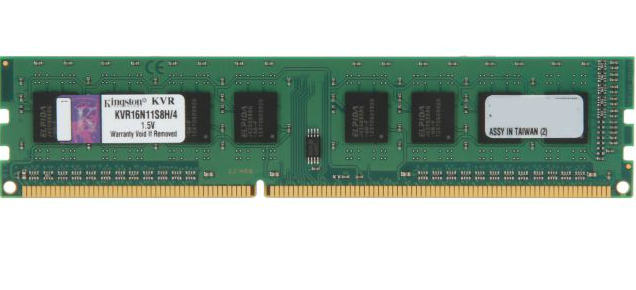

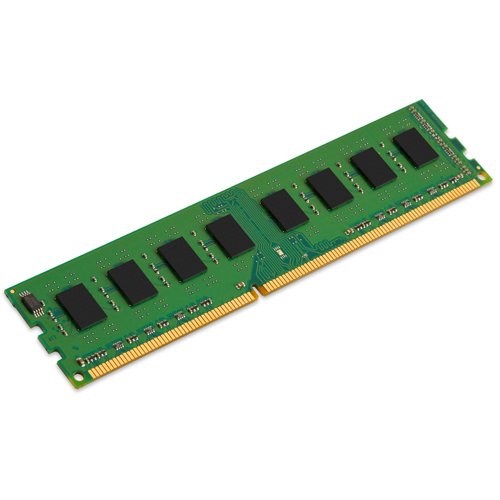

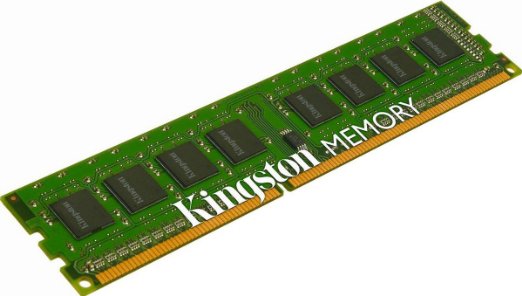

KINGSTON - D3-KVR1600-4GB



KST 4GB DDR3 1600FSB DIMM MEMORY

Description

Kingston ValueRAM's 512M x 64-bit (4GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components


Specification

WEB LINK:

Kingston ValueRAM's 512M x 64-bit (4GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components

Features:
-JEDEC standard 1.35V (1.28V~1.45V) and 1.5V (1.425V~1.575V) Power Supply
-VDDQ= 1.35V (1.28V~1.45V) and 1.5V (1.425V~1.575V)
-800MHz fCK for 1600MB/sec/pin
-8 independent internal bank
-Programmable CAS Latency: 11, 10, 9, 8, 7, 6
-Programmable Additive Latency: 0, CL -2, or CL - 1 clock/ 8-bit pre-fetch
Burst Length:
-8 (Interleave without any limit, sequential with starting address "000" only), 4 with tCCD = 4 which does not allow seamless read or write
-Bi-directional Differential Data Strobe
-Internal(self) calibration:
-Internal self calibration through ZQ pin (RZQ: 240 ohm +-1%)
-On Die Termination using ODT pin
-Average Refresh Period 7.8us at lower than TCASE 85 Degree Celcius, 3.9us at -85-Asynchronous Reset
-PCB Height: 0.740" (18.75mm) or 1.180" (30.00mm)

Specifications:
-CL(IDD): 11 cycles
-Row Cycle Time (tRCmin): 48.125ns (min)
-Refresh to Active/Refresh Command Time (tRFCmin): 260ns (min)
-Row Active Time (tRASmin): 35ns (min)
-Maximum Operating Power: (1.35V) = TBD W
-UL Rating: 94V - 0
-Operating Temperature: 0 to 85 Degree Celcius
-Storage Temperature: -55 to 100 Degree Celcius

What's in the box:
-1x Kingston 4GB DDR3 Dimm Memory
