Specification
WEB LINK:

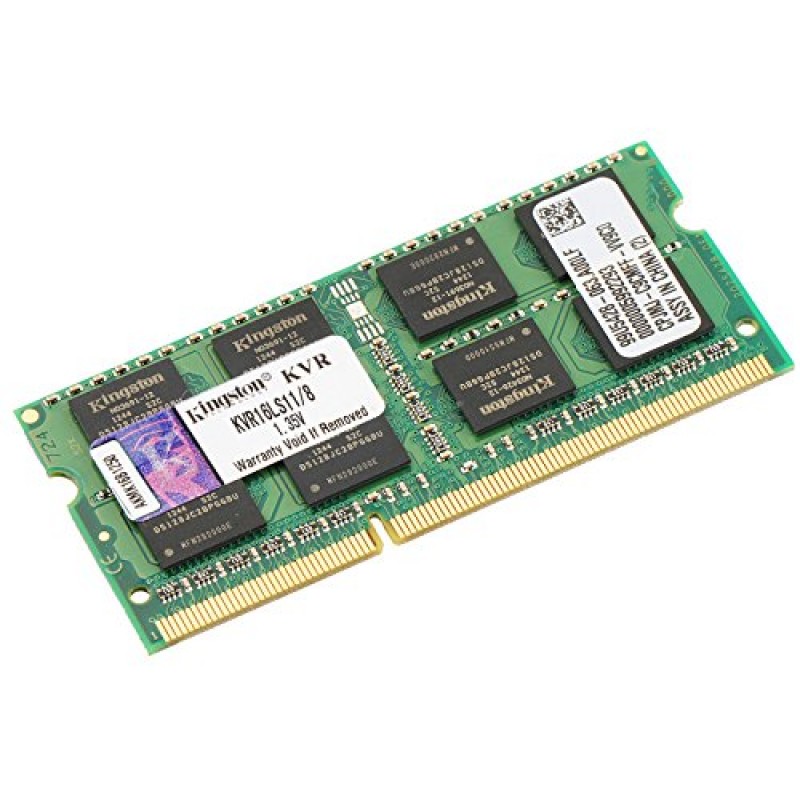

Kingston ValueRAM's 1G x 64-bit (8GB) DDR3- 1600 CL11 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V
Features:
-JEDEC standard 1.5V (1.425V~1.575V) Power Supply
-VDDQ = 1.5V (1.425V~1.575V)
-800MHz fCK for 1600MB/sec/pin
-8 independant internal bank
-Programmable CAS Latency: 11,10,9,8,7,6
Programmable Additive Latency:
-0, CL - 2, or CL - 1 clock
-8-bit pre-fetch
Burst Length:
-8 (Interleave without any limit, sequential with starting address "000" only), 4 with tCCD = 4 which does not allow seamless read or write
-Bi-directional Difference Data Strobe
-Internal(self) calibration:
-Internal self calibration through ZQ pin
-On Die Termination using ODT pin
-Average Refresh Period 7.8us at lower than TCASE 85 Degree Celcius, 3.9us at 85 Degree Celcius < TCASE < 95 Degree Celcius
-PCB: Height 1.180" (30.00mm), double sided component
Specifications:
-CL(IDD): 11 cycles
-Row Cycle Time (tRCmin): 48.125ns (min)
-Refresh to Active/Refresh Command Time (tRFCmin): 260ns (min)
-Row Active Time (tRASmin): 35ns (min)
-Maximum Operating Power: 2.580W
-UL Rating: 94V
-Operating Temperature: 0 to 85 Degree Celcius
-Storage Temperature: -55 to 100 Degree Celcius
What's in the box:
-1x Kingston 8GB DDR3-1600MHz Memory
