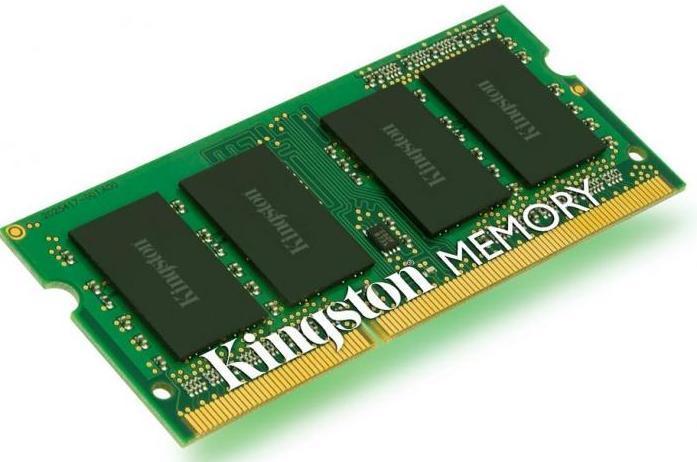

KINGSTON - D3-K1600L-4GB-NB



KST 4GB DDR3 1600MHZ SO-DIMM

Description

Kingston ValueRAM's 512M x 64-bit (4GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 1Rx8, low voltage, memory module, based on eight 512M x 8-bit FBGA components


Specification

WEB LINK:

Kingston ValueRAM's 512M x 64-bit (4GB) DDR3L-1600 CL11 SDRAM (Synchronous DRAM), 1Rx8, low voltage, memory module, based on eight 512M x 8-bit FBGA components

Features:
-JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~1.575V) Power Supply
-VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
-800MHz fCK for 1600Mb/sec/pin
-8 independent internal bank
-Programmable CAS Latency: 11, 10, 9, 8, 7, 6, 5
-Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
-8-bit pre-fetch
-Burst Length: 8 (Interleave without any limit, sequential with starting address "000" only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
-Bi-directional Differential Data Strobe
-Internal(self) calibration: Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
-On Die Termination using ODT pin
-Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE = 95°C
-Asynchronous Reset
-PCB: Height1.18" (30mm), double sided component
-Lead Free RoHS Compliant

Specifications:
-CL(IDD): 11 cycles
-Refresh to Active/Refresh Command Time: 260ns (min)
-Row Active Time: 35ns (min)
-Maximum Operating Power: (1.35V)= 2.376 W
-Ul Rating: 94 V - 0
-Operating Temperature: 0 C to 85 C
-Storage Temperature: -55 C to +100 C

What's in the box:
-1x Kingston 4GB DDR SO-Dimm Memory
