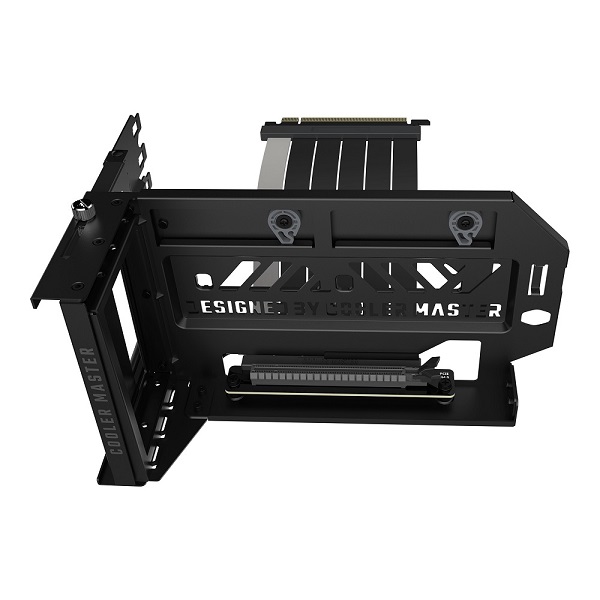

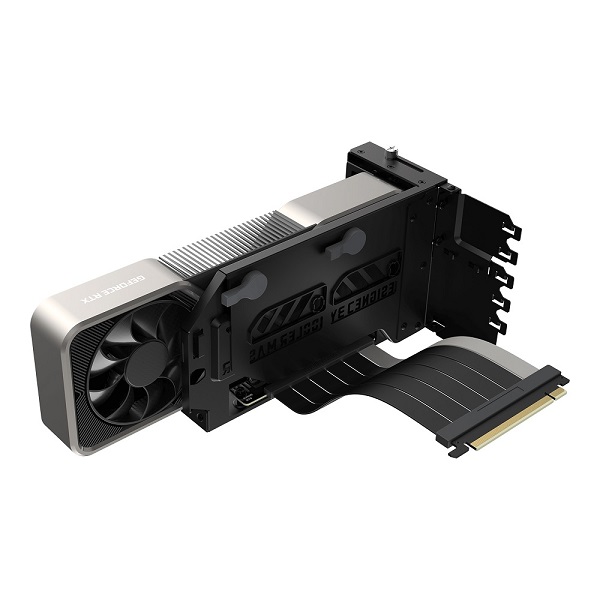

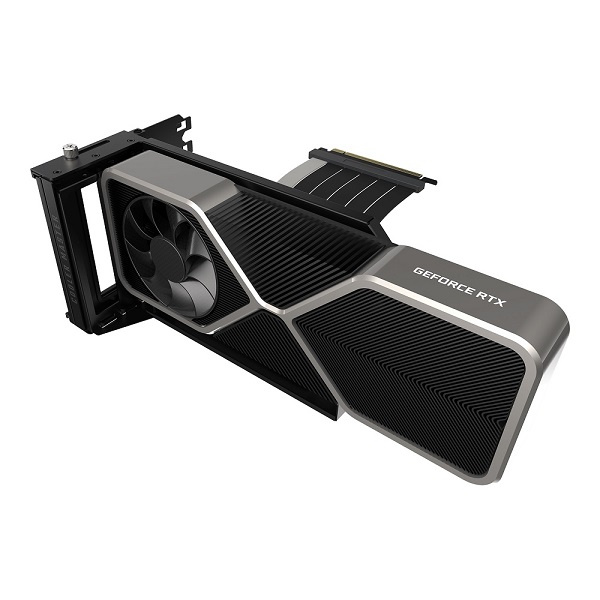

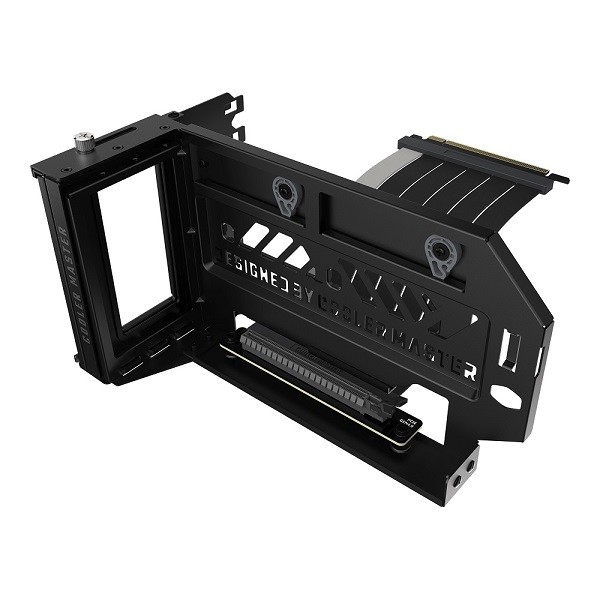

Cooler Master Vertical Graphics Card Holder Kit V3 With Removable Adjustable GPU Bracket And Included PCIe 4.0 Riser Cable - Black Colour
Features:
-Fully ventilated design
-X Axis and Z Axis Adjustability*
-Compatible with the latest GPUs
-Modular design and 100% adjustable
-Designed for both ATX and M-ATX cases
-Effortlessly showcase your graphics card
-Premium SGCC steel and 42% increased durability
-Efficient data transmission and connectivity via components
Specifications:
-Product Name: Vertical GPU Holder Kit V3
-Product Number: MCA-U000R-KFVK03
-Colour: Black
-GFX Holder Kit Dimensions: (L)249 x (W)148.1 x (H)141.8mm (close size)
-Riser Cable Dimensions: (L)305 x (W)178.1 x (H)141.8mm (open size)
-Supported Chassis Type: E-ATX, ATX, Micro ATX (may interfere with component installation on the rear panel. Max. CPU cooler height limited to 70mm.)
-Supported GPU Type: Any length, up to 3 slots wide
-Riser Cable Model: Riser Cable PCIe 4.0 x16
-Compatibility: PCIe 4.0 and holder
-CE Certifications Number: BKC210933AC
-PCB/Wire UL Numbers: E1895721/E252840
-Component Materials: PCA, silver-plated Copper Wire 30AWG
-Insulation Materials: PE, TPE
-Other Materials: ABS, PP, SGCC Steel, Nickle, Gold, Brass
-Connectors: PCIe x16 Male to PCIe x16 90° Female
-Rated working voltage and current: DC 12V/5A
-Operating Temperature: -20° to +100° Celsius
-Required PCI slots: Minimum 4 PCI slots required for mounting
Notes:
*-Too-free adjustable upto 65mm horizontally(X Axis) & Up to 30mm towards the side panel(Z Axis)
-When installing the Vertical GPU Holder Kit V3 in a M-ATX case users may need to remove the rear case fan additional clearance.
-It is also necessary to use low profiles CPU air-coolers, all-in-one liquid coolers, or custom water cooling loops to guarantee optimal clearances between components.
-Weight: 1100g
-Dimensions: (L)27 x (W)17 x (H)15cm
What's in the box:
-1x CM Vertical GPU Card Holder Kit V3
