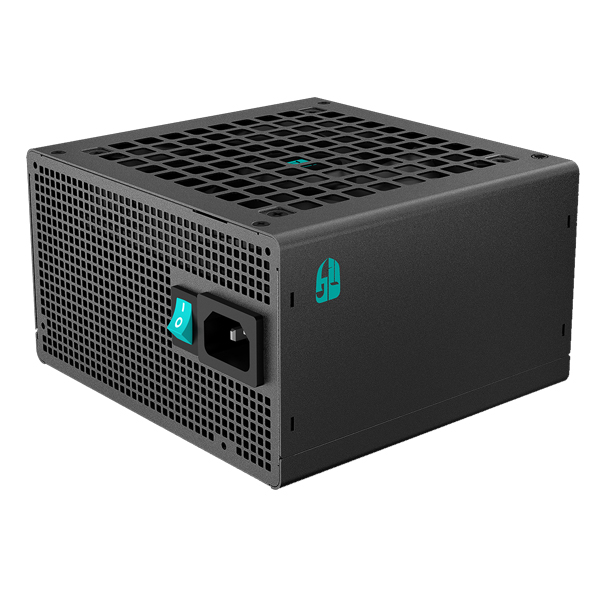

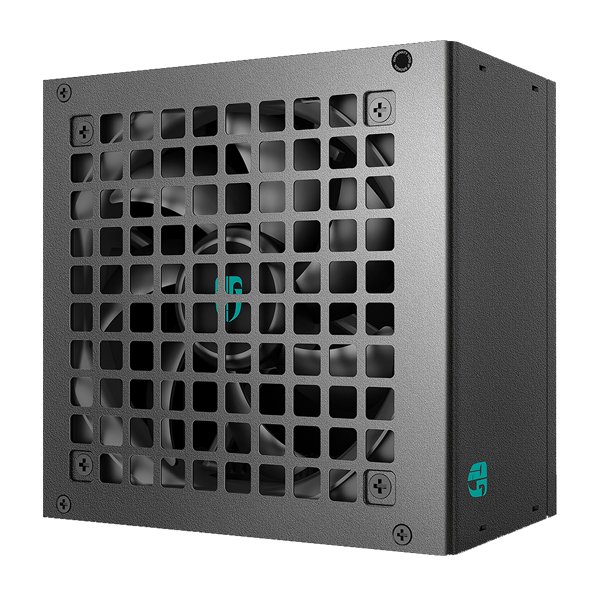

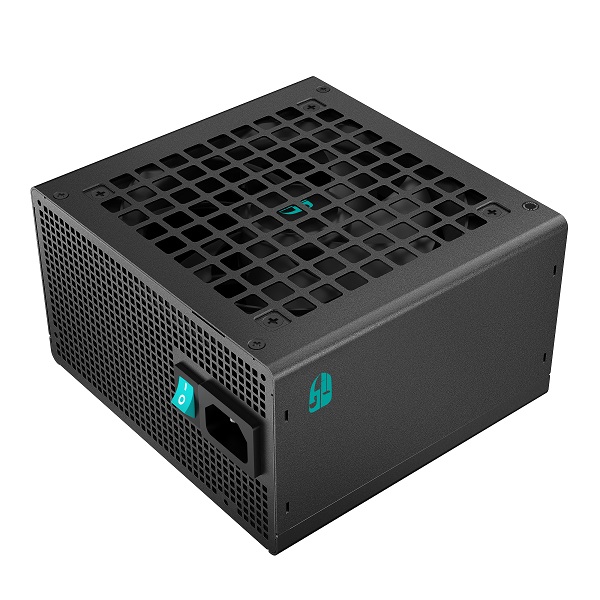

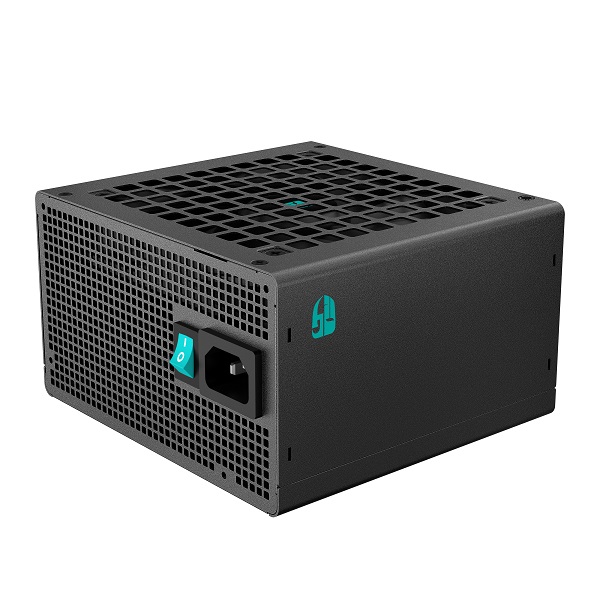

DeepCool GamerStorm PQ1000G 1000W 80+ Gold, Cybenetics Platinum and PPLP Gold Certified ATX 12V V3.1 Full Modular Power Supply and PCIe 5.1 Power Providing Upto 600W For GPU's and 120mm FDB Fan - Black Colour

Features:
-Support ATX-sized PSUs
-Premium full Japanese electrolytic capacitors

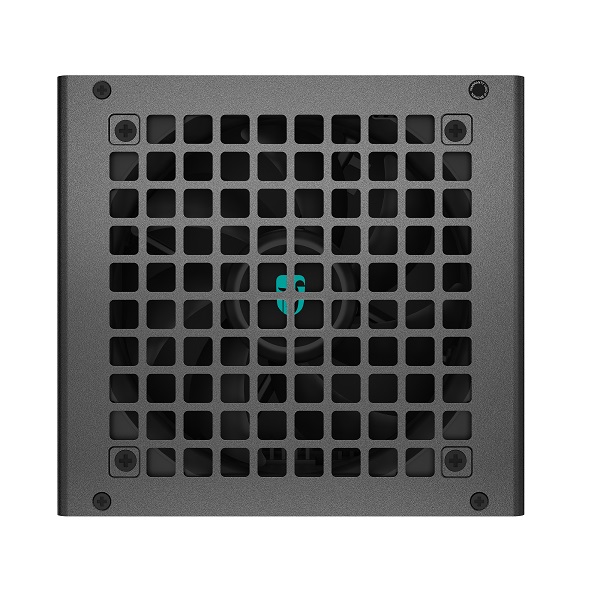

-Build with a 120mm Fluid Dynamic Bearing Fan
-Perfect for legacy and modern power-hungry PCs
-Active PFC, half-bridge LLC and DC-to-DC topology
-92% high level of efficiency under typical loads of 50%
-80Plus Gold, PPLP Gold and Cybenetics Platinum certified
-Equipped with high-grade 105C-resistant PCI-E 5.1 Cable

Specifications:
-Total Output: 1000W
-Type: ATX12V V3.1
-Product Dimensions: (L)140x(W)150x(H)86mm
-Efficiency certification: 80Plus Gold/Cybenetics Platinum/PPLP Gold

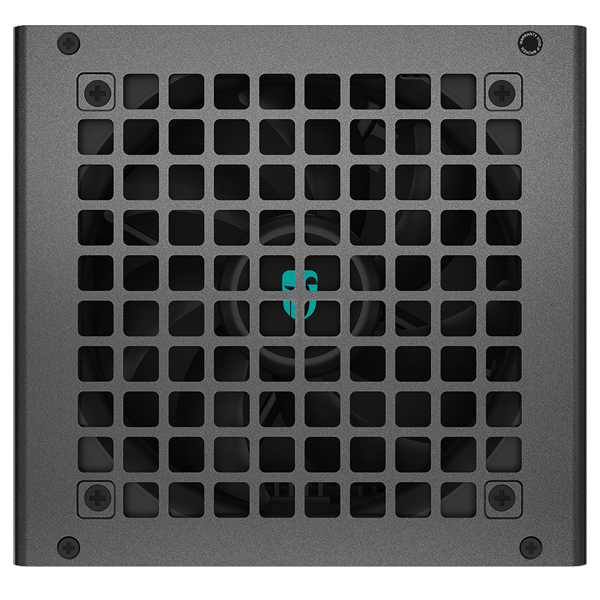

-Fan Size: (L)120x(W)120x(H)25mm
-Fan Bearing: Fluid Dynamic Bearing

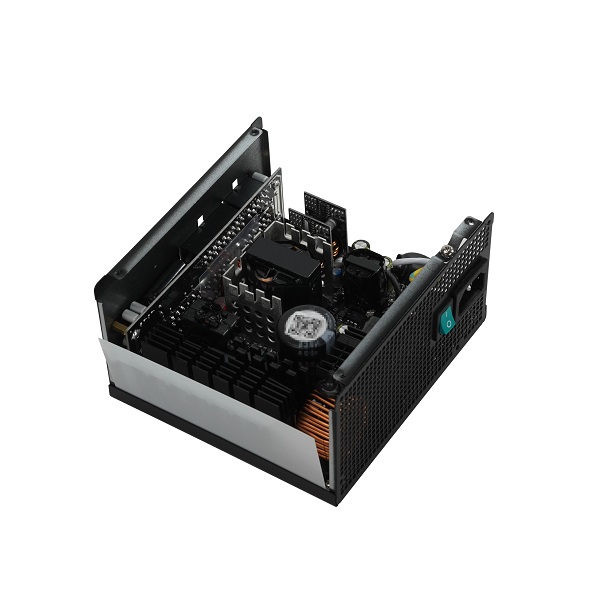

-Topology: Active PFC + Half Bridge SRC LLC + DC-to-DC

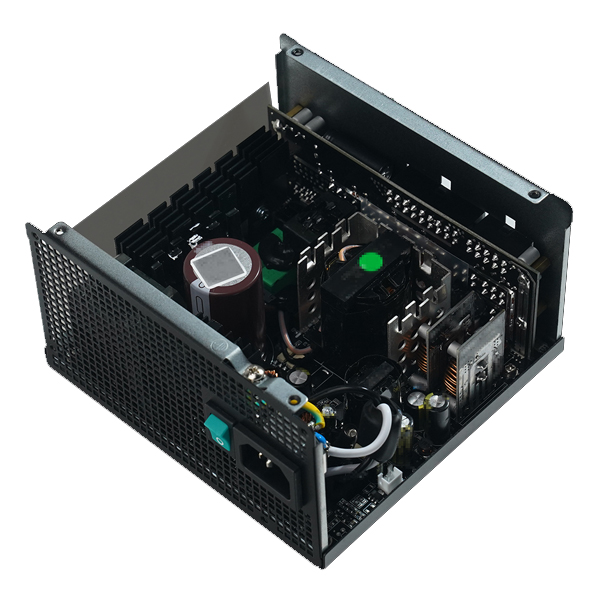

-Capacitors: Full Japanese Electrolytic Capacitors
-Power Good Signal: 100-150ms
-Hold Up Time: >16ms Full load
-Efficiency: >90% Under Typical Load (50% Loading)
-Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
-Operation Temperature: 0-40C
-Regulatory: EAC
-ErP Regulation: ErP 2013
-Environment Protection: EAC
-MTBF: 100,000 Hours

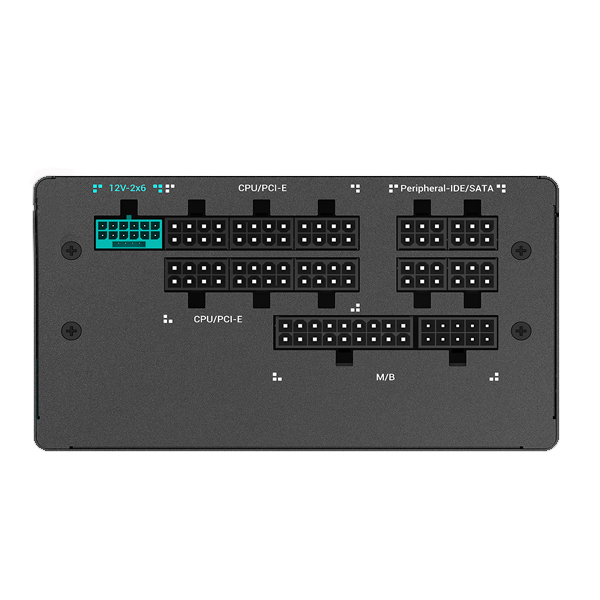

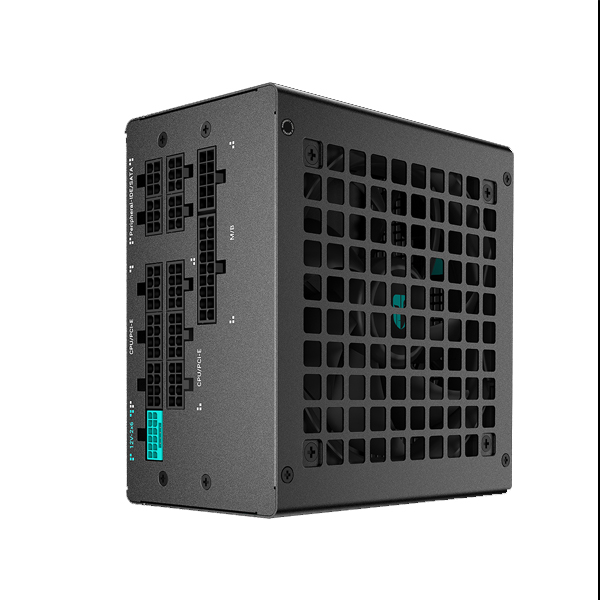

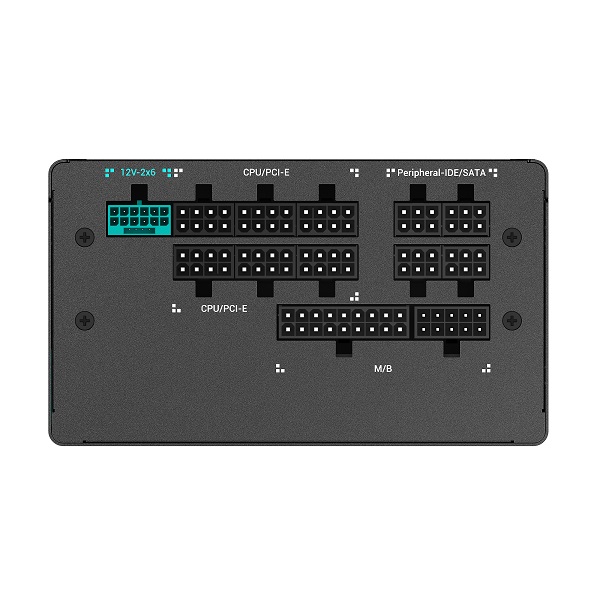

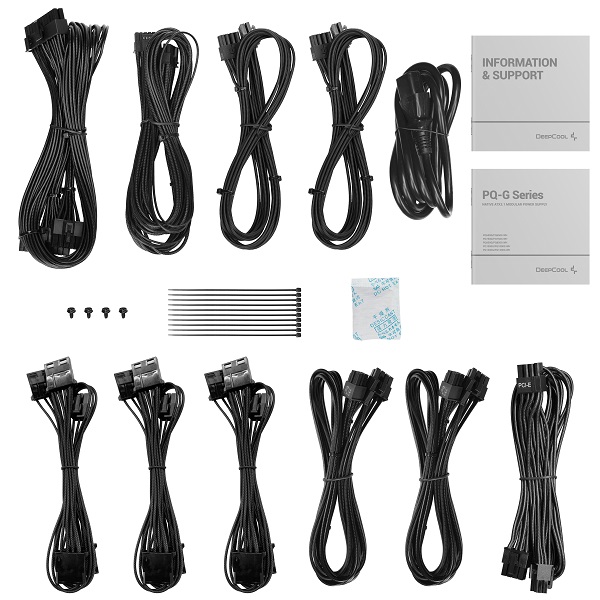

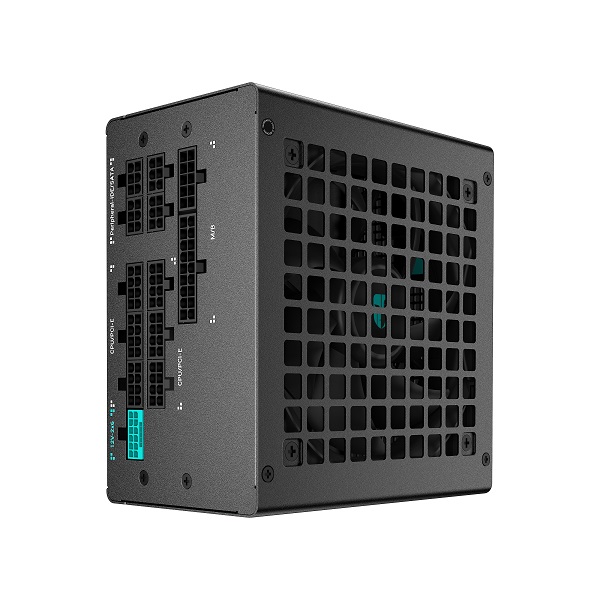

Cable Connectors:
-1x Main Power Connector 24 (20+4) Pin x1
-2x CPU (4+4) Pin x1
-2x PCI-e (6+2) Pin x1
-1x PCI-e (6+2) Pin x2
-1x 12V-2x6 (16Pin) x1
-3x SATA x3 + 4Pin Peripheral x1

-Weight:
-Dimensions: (L) x (W) x (H)cm

What’s in the box:
-1x DC PQ1000G PSU
