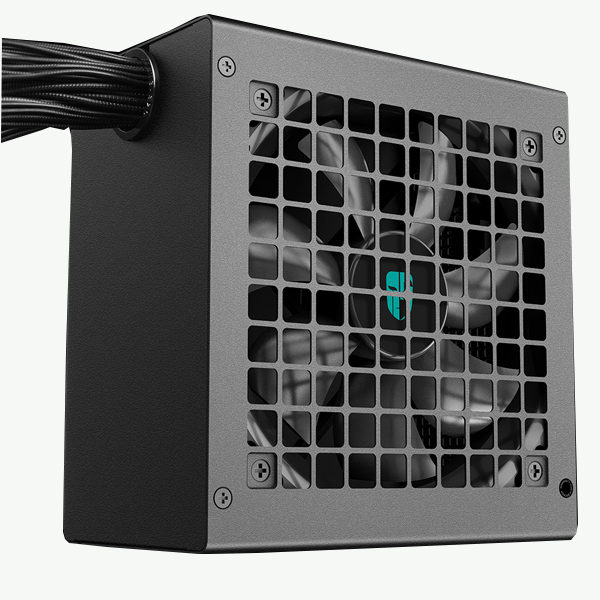

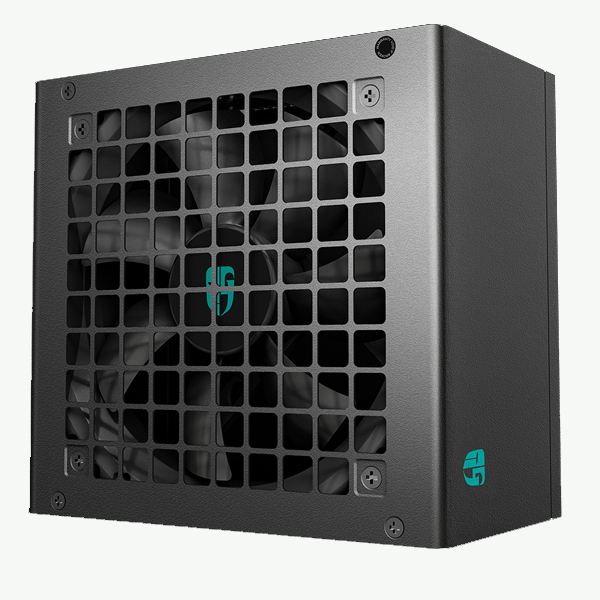

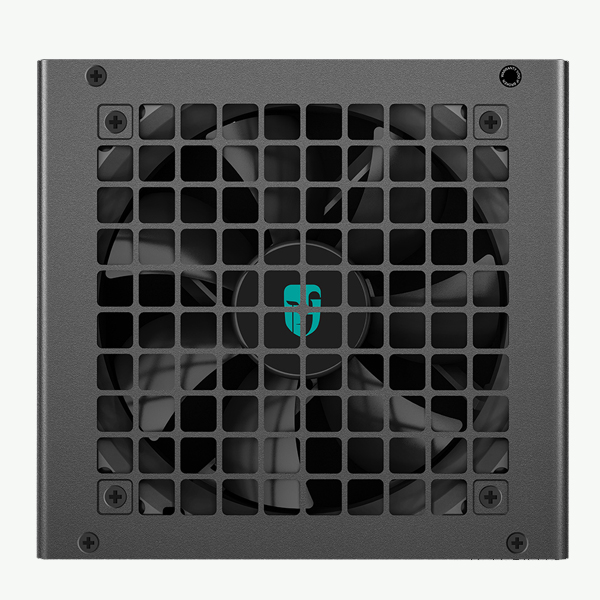

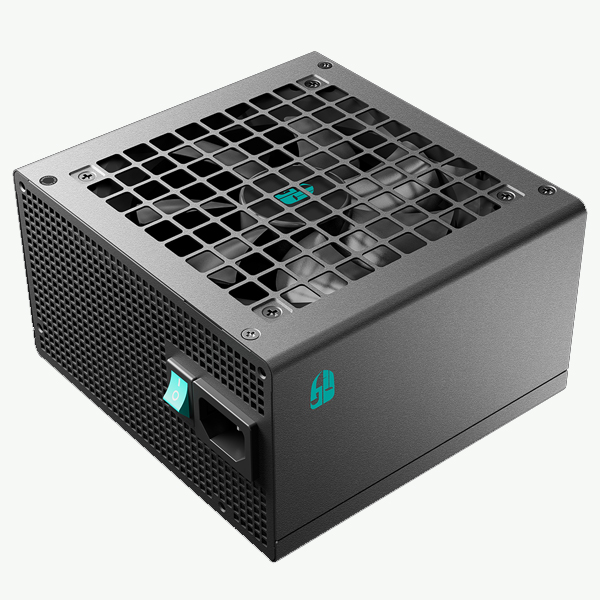

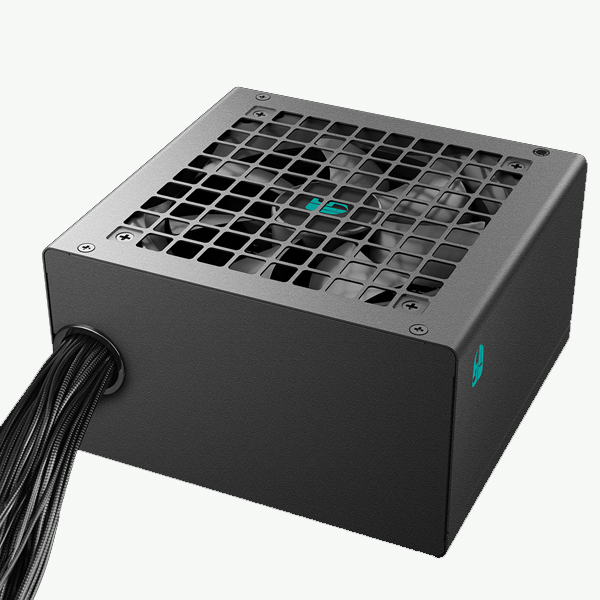

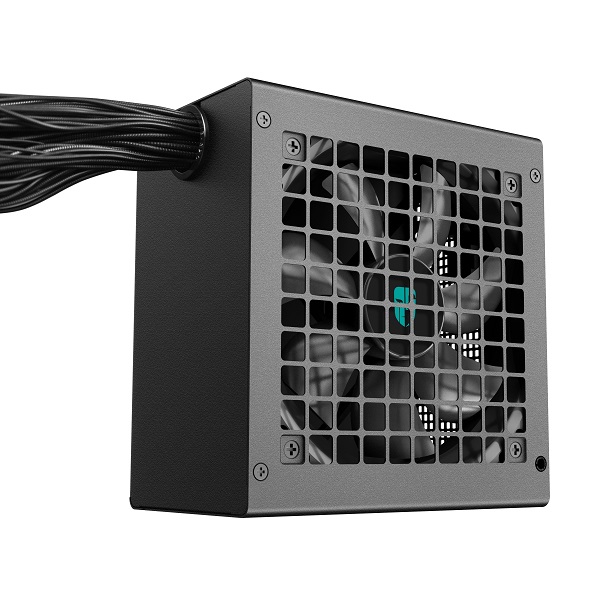

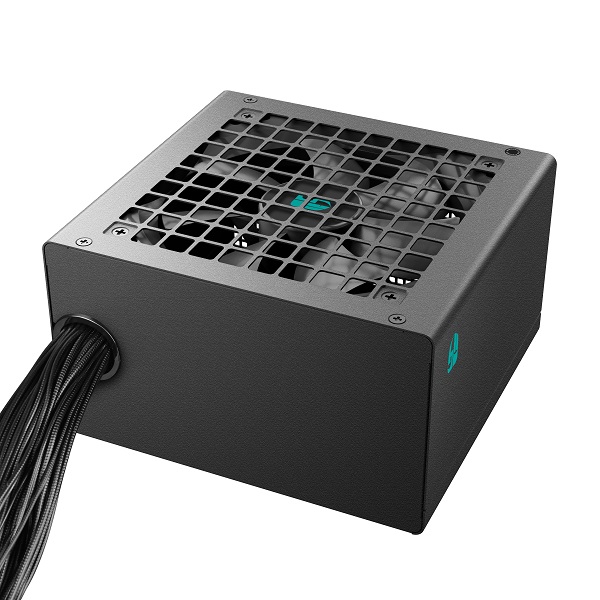

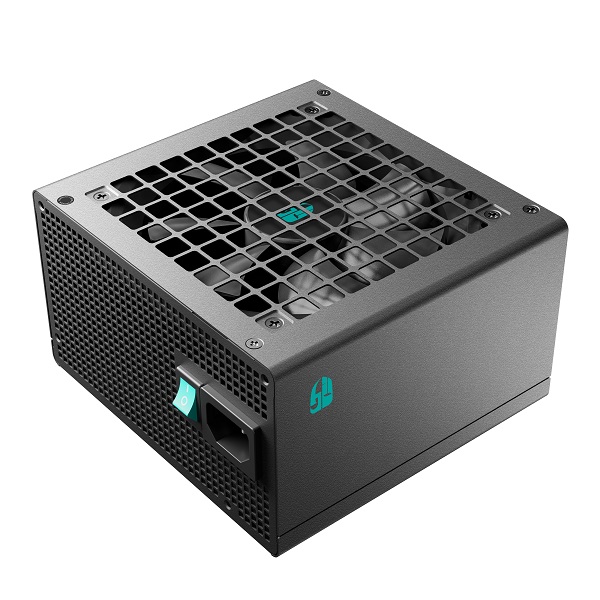

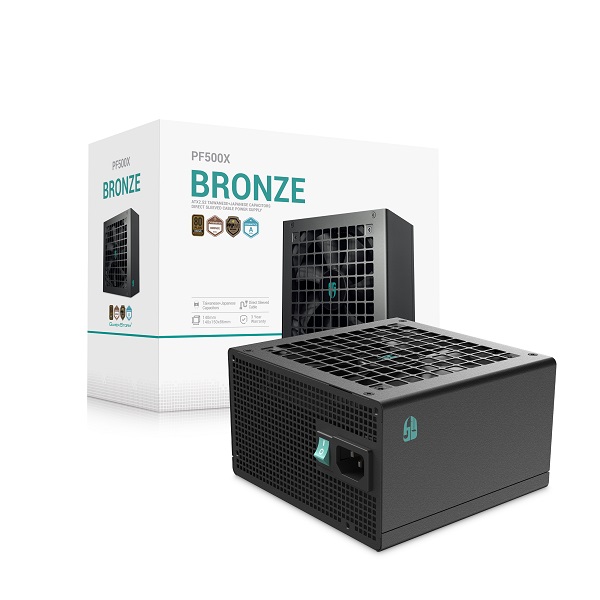

DeepCool GamerStorm PF500X-HD 500W 80Plus Bronze, Cybenetics And PPLP Certified ATX 12V V2.52 230V Power Supply With Active PFC, Double Forward + DC-To-DC And Long-Life 120mm HB Fan – Black Colour

Features:
-Hold-Up Time up to 16ms at 75% load
-Active PFC + Double Forward + DC to DC
-Long-life bearing fan with 40,000 hours MTBF
-Premium Taiwanese solid and electrolytic capacitors
-Custom-molded sleeved cables for easier installation
-Intel ATX 2.52 standard and global safety standards

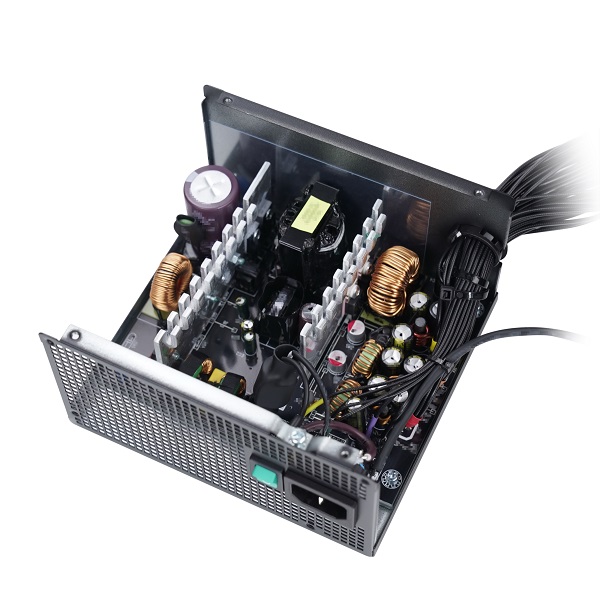

-Aerodynamic PCB layout for reduced noise and improved airflow
-88% efficiency with 80 PLUS Bronze, Cybenetics, and PPLP certifications*

NOTES:
-*Due to the different testing standards between the institutions, all packaging and labels will use the Bronze badge to ensure uniformity and compliance.

Specifications:
-Model No: PF500X
-Total Output: 500W
-Type: ATX12V V2.52
-Product Dimensions: (L)150x(W)140x(H)86mm
-Efficiency Certification: 80PLUS 230EU Bronze /CYBENETICS Bronze /CYBENETICS A 230V /PPLP 230V Bronze

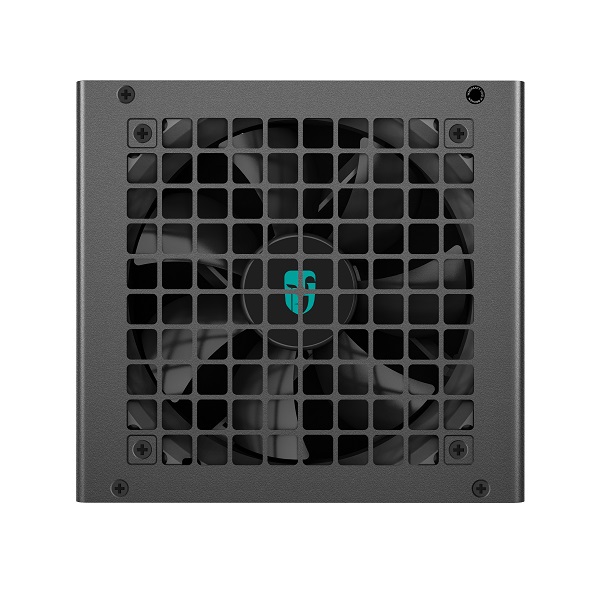

-Fan Size: 120mm
-Fan Bearing: Longlife Hydro Bearing
-Capacitors: Taiwanese + Japanese Electrolytic Capacitors
-Topology: Active PFC+DC-to-DC
-Power Good Signal: 100-150ms
-Hold Up Time: >16ms (75% Load)
-Efficiency: >88% Under Typical Load (50% Loading)
-Protection: OPP/OVP/OCP/SCP/OTP/UVP/SIP/NLO
-Operation Temperature: 0-40C
-Regulatory: CE/TUV-RH/CCC/RCM/KC
-Erp Regulation: Erp 2014
-Environment Protection: WEEE/?? RoHS/Triman
-MTBF: 40,000 Hours

Connectors:
-1x Main Power: 24 (20+4) Pin x1
-1x CPU: 4+4 Pin x1
-1x PCI-E: 6+2 Pin x2
-1x SATA: x3
-1x Peripheral 4-Pin (Molex): x1

-Weight: 1800g
-Dimensions: (L)26.6 x (W)13.5 x (H)20.5cm

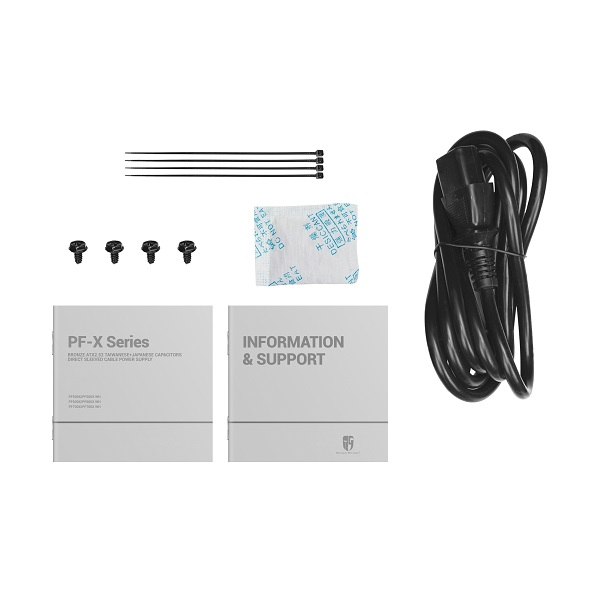

What’s in the box:
-1x DC PF500X Power Supply
