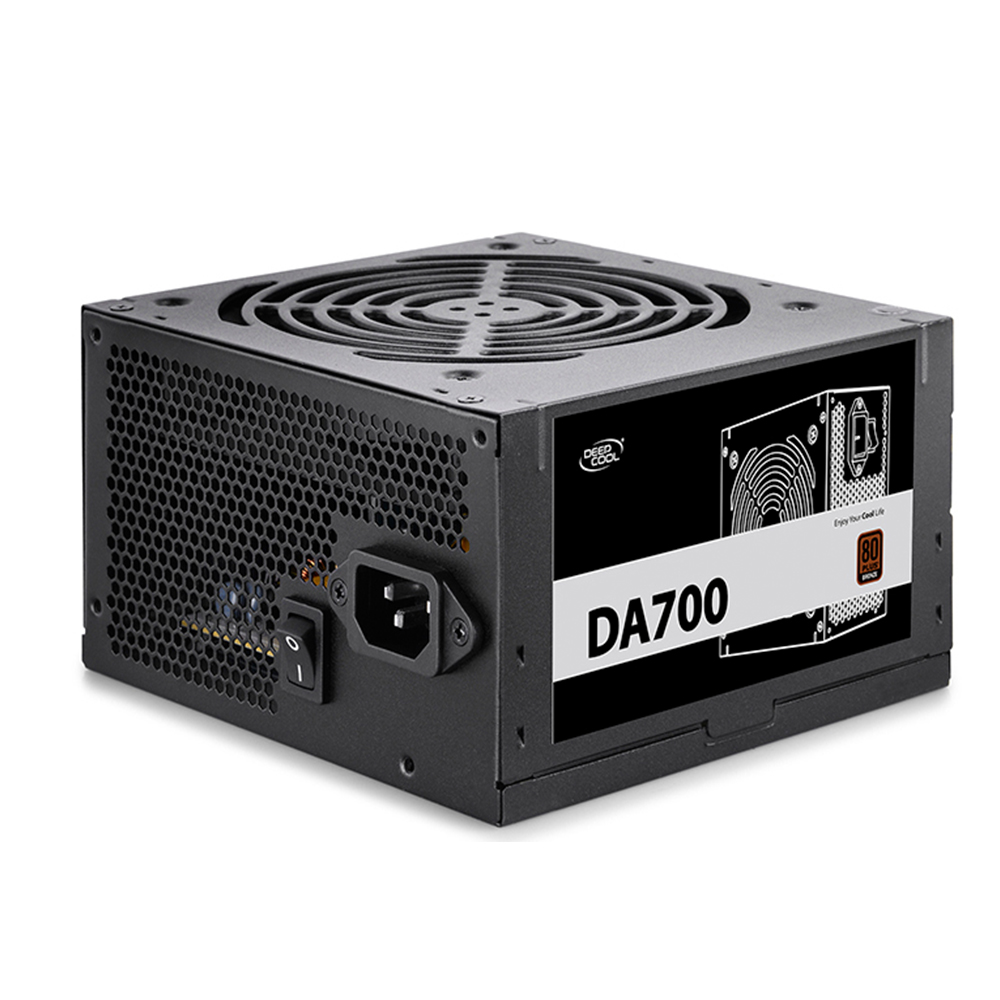

DEEPCOOL DA700N 700W 80+ BRONZE ATX 12V POWER SUPPLY WITH ACTIVE PFC & FLAT CABLE - BLACK
Features:
-Compatible with Intel ATX12V V2.4
-High reliability with at least 100,000 hour MTBF
-120mm silent fan with temperature control function
-Support Multi-Way SLI / CrossFire + Multi-Core CPUs
-Longer cable design for enhancing cable management
-80 PLUS Bronze certified - achieve up to 85% efficiency
Specifications:
-Model: DA700
-Type: ATX 12V V2.4
-Certifications: 80PLUS Bronze
-Product Dimension: (W)150 x (L)140 x (H)86mm
-Output Capacity: 700W
-Input Voltage: 100~240V
-Input Current: 10A
-Input Frequency Range: 47~63Hz

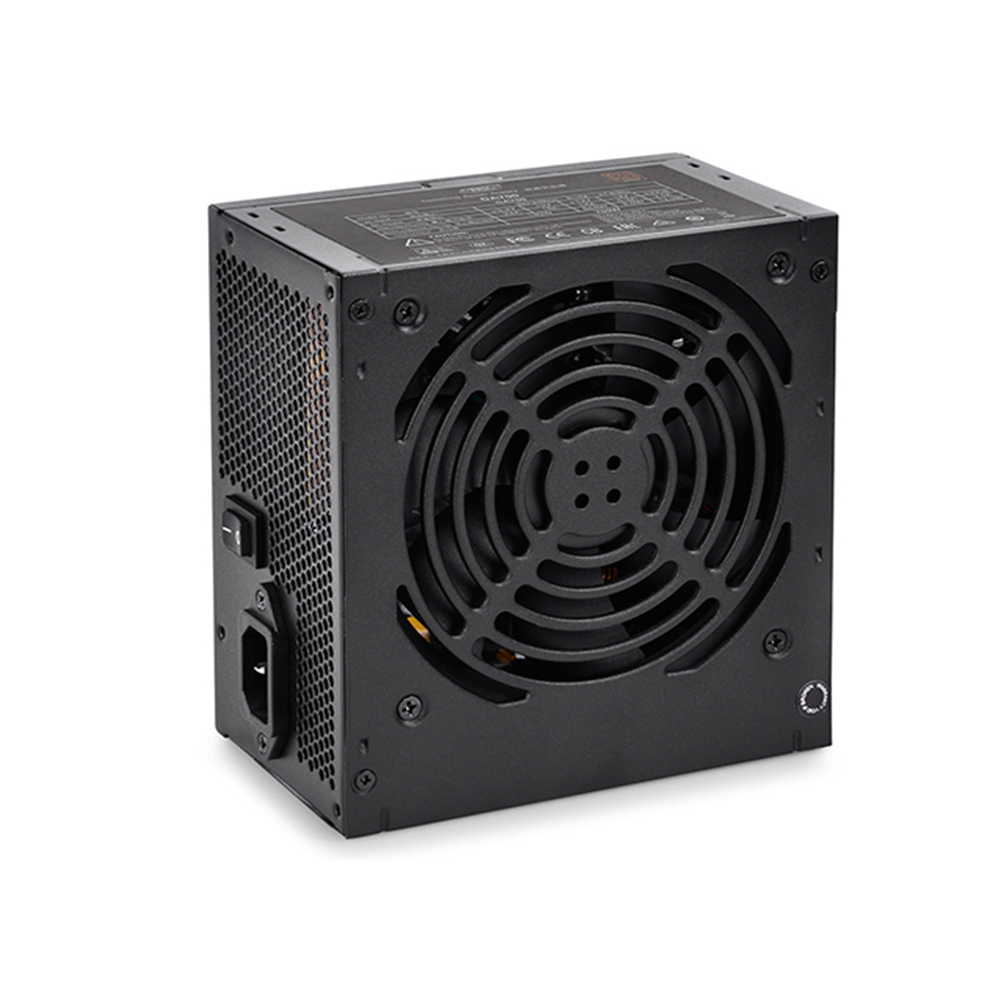

-Fan Size: 120mm Silent Fan
-PFC: Active PFC (>0.99)
-Power Good Signal: 100-500ms
-Hold Up Time: >16ms
-Efficiency: 85% Under Typical Load
-Protection: OVP / UVP / SCP / OPP
-Operation Temperature: 0~40 C
-Regulatory: CE / FCC / CCC / CB / EAC
-MTBF: 100,000 Hours
Cable Connectors:
-Main Power Connector (24Pin) x1
-EPS 12V Connector 8(4+4)Pin x1
-PCI-E (6+2)Pin x4
-SATAx3+4Pin Peripheralx1
-4pin Peripheralx2+SATAx2
-Weight: 1800g
-Dimensions: (L)27 x (W)10.5 x (H)18.5
What's in the box:
-1x DA700N 700W 80+ Bronze PSU
-1x User Manual
